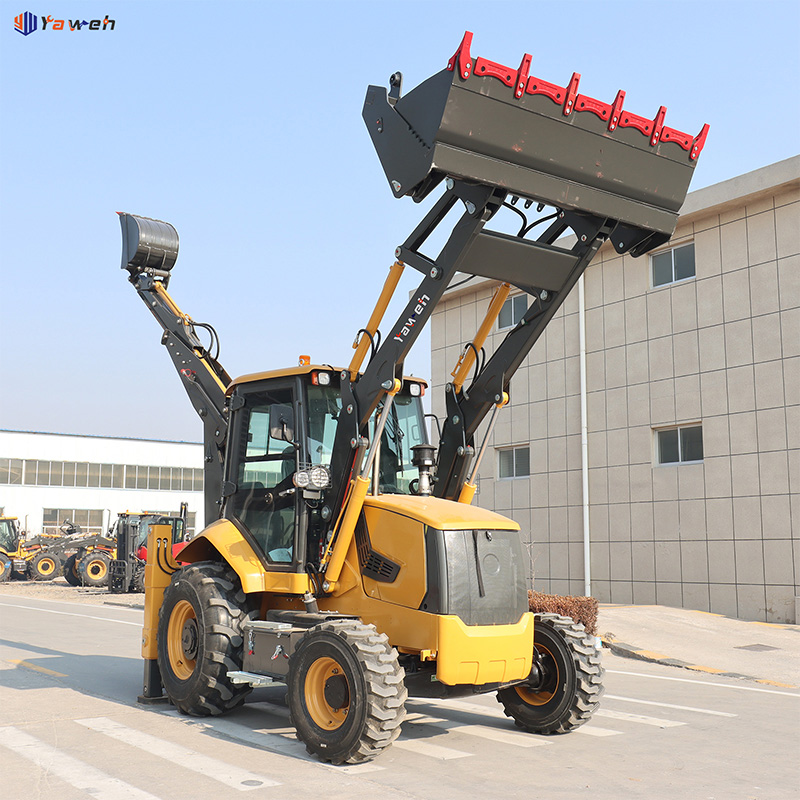

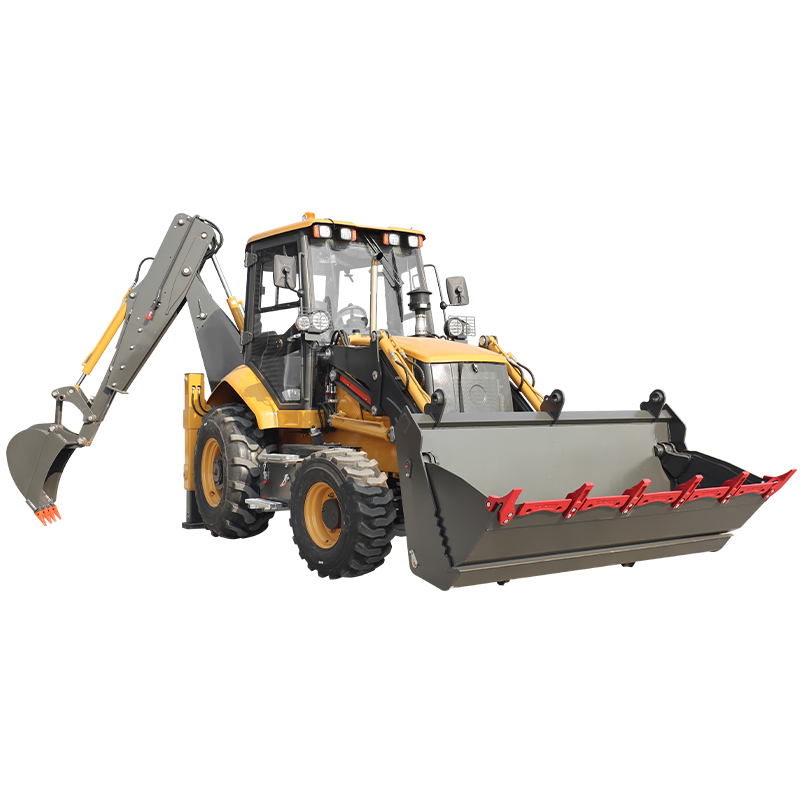

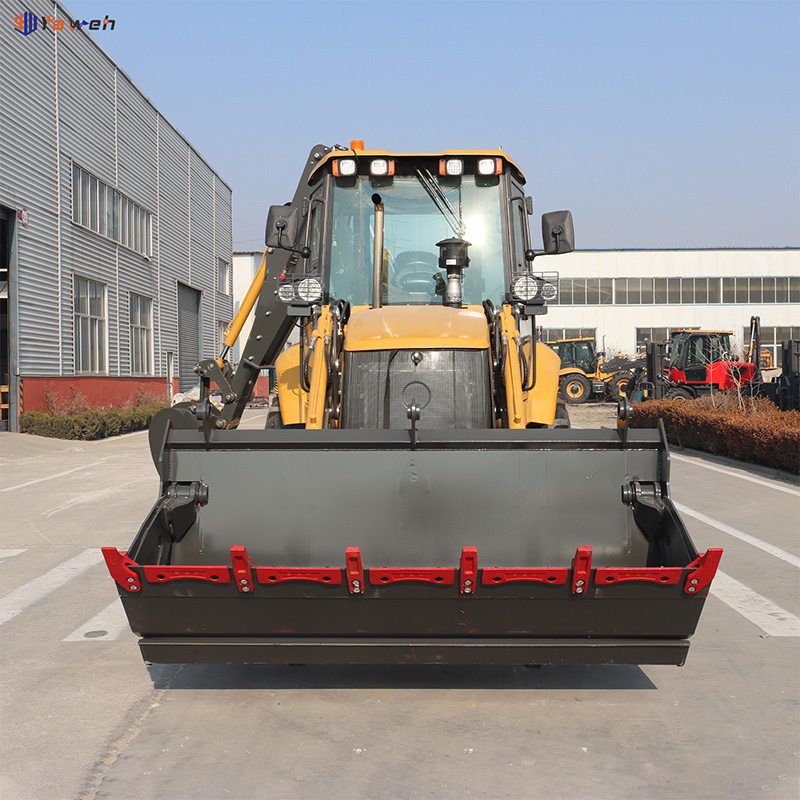

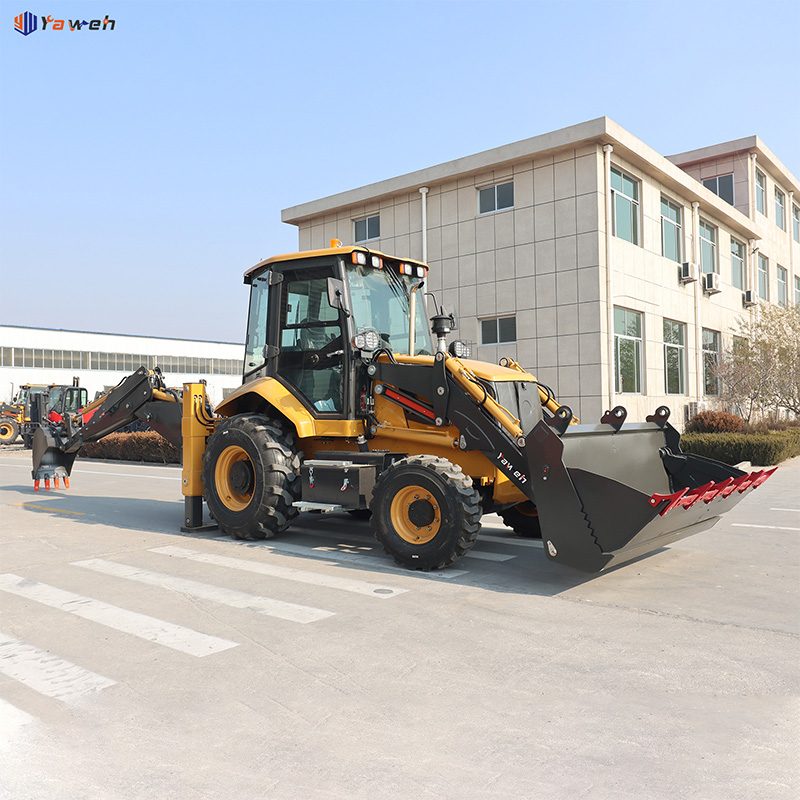

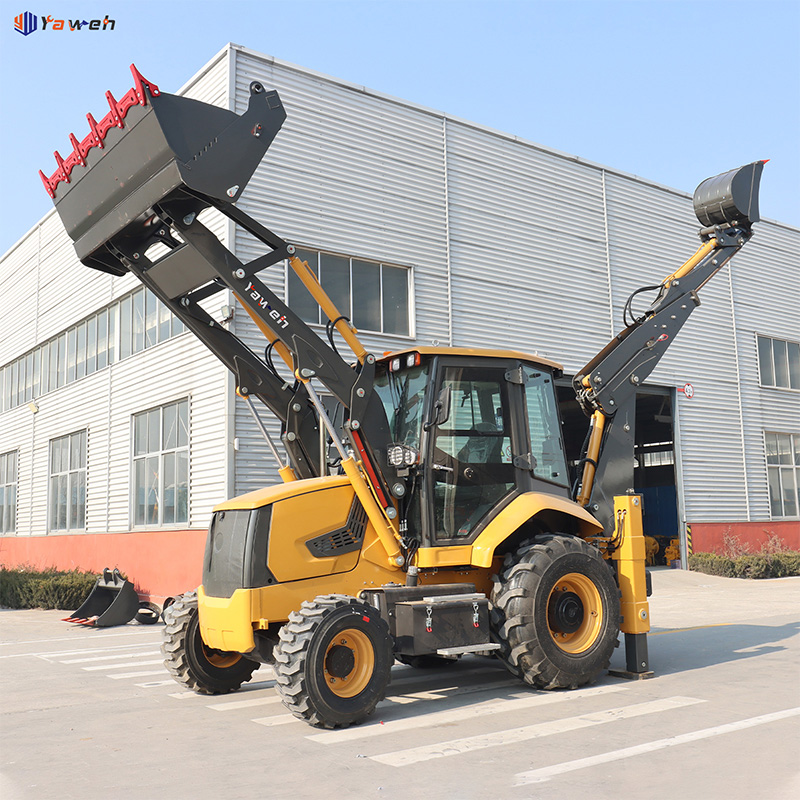

Front loader rear excavator compact premium dual-purpose machine. Front-mounted standard equipment includes a Yuchai 4108 turbocharged high-horsepower engine. Flip-up bonnet facilitates maintenance. First-class wheel-hub steering axle with front-wheel steering and four-wheel drive enables tighter turning radius for enhanced operational flexibility. The cab offers superior ergonomics. Observe the dual-operation seat with 360° adjustment capability. The flip-up rear window provides expansive visibility. Rear-mounted 75 excavator employs advanced hydraulic pilot control system – cutting-edge domestic technology for precise operation. While achieving 4-metre digging depth, the telescopic boom extends excavation depth to 5.5 metres. Bucket capacity: 0.3 cubic metres. The excavator features full side shift capability. with a 180° working angle significantly expanding its operational range. With the telescopic arm fitted, digging depth reaches 5.2 metres – perfectly capable for construction tasks. Smooth operation, high-end dual functionality – a machine you deserve to own.
| Quantity: | |
|---|---|
1. Engine
Renowned engine brand delivering substantial power, low fuel consumption, high efficiency, and robust performance.
2. Rollover-Protective Cab
Enhanced safety with full-length rear window for superior visibility and operational flexibility.
3. Control System
Electro-hydraulic system featuring electronic gear shifting and LCD display.
4. Active Track-Shifting Function
Fuel-efficient, labour-saving operation without frequent machine repositioning, significantly expanding working coverage.
5. Four-Way Synchronisation
Ensures smooth operation during fieldwork, boosting productivity
6. Monocoque Frame
Entire vehicle undergoes boring and post-welding machining; compact body with agile steering
7. Excavator Arm
International-grade reinforced excavator arm with high load capacity, utilising specialised materials
8. Pins
Manufactured using advanced machining equipment, featuring minimal clearance for tighter fitment
Outlines | |
Outline dimension (mm) | 6150*2350*3763 |
Wheel base (mm) | 2290 |
Traud (mm) | 1950 |
Min ground clearance (mm) | 320 |
Min turning radius (mm) | 6580 |
Performance | |
System pressure (Mpa) | 28 |
Machine weight (kg) | 8300/8500 |
Max speed (Km/h) | 28/38 |
Max climbing capacity (°) | 35 |
Excavator | |
Max digging depth (mm) | 4000/5300 |
Max digging radius (mm) | 4800/6000 |
Max lifting height (mm) | 5200/5950 |
Capacity (m³) | 0.3 |
Angle of rotation of excavator (°) | 190 |
Loader | |
Max unloading height (mm) | 2742 |
Max unloading distance (mm) | 1062 |
Capacity (m³) | 1.2 |
Engine | |
Model | Yudong 4105 Turbocharged |
Type | Turbo charge |
Rated power (kw) | 85 |
Rated speed (r/min) | 2600 |
Cylinder No.-diameter | 4-105 |
Transmission | |
Gear box | Hydraulic transmission |
Gear | 4 front, 4 rear |
Torque converter | YJ280 |
Axle | |
Type | One stage wheel side reduction axle |
Tyre | |
Size | 14-17.5/19.5L-24 |
Travel brake | Gas cap oil clamp disc brake |
Parking brake | Hand brake |
Oil | |
Diesel (L) | 100 |
Hydraulic oil (L) | 100 |
Other | |
Driving type | 4×4 |
Speed change type | Hydraulic variable speed driver |
Operation system | Electromagnetic hydraulic pilot control |
| 1. Urban Infrastructure Construction and Maintenance (Core Application Scenario) This is the most common application field for backhoe loaders, especially in urban areas where space is limited. Specific applications include the following aspects: Road Repair and Maintenance: It is used for filling potholes, excavating drainage ditches along curbs, and burying or repairing underground facilities (such as emergency water pipe maintenance and cable laying). Landscaping: Its functions cover digging tree pits, transplanting trees, laying lawns, and constructing landscape ditches. Municipal Works: It is applicable to excavating foundations for street lamps, installing traffic sign posts, and other related tasks. |
| 2. Construction and Building Works Rural and Low-Rise Construction: This includes excavating foundations for self-built houses, digging septic tanks, and carrying out indoor demolition work. Auxiliary Tasks at Construction Sites: It is used for clearing construction waste, leveling construction sites, and conducting short-distance earthmoving operations. Pipeline Construction: It is suitable for excavating trenches for water supply pipes and gas pipelines, especially in narrow spaces where large excavators cannot operate. |
| 3. Agriculture and Rural Development With its moderate size and excellent maneuverability, the backhoe loader is very suitable for agricultural applications. Irrigation and Water Management: It can be used for excavating irrigation channels, maintaining river courses, and dredging fishponds. Land Preparation: Its tasks include leveling land and excavating foundations for greenhouses. Agricultural and Forestry Operations: It is applicable to installing pasture fences and digging trenches for fertilization in orchards. |
| 4. Emergency Response & Disaster Relief Flood Defence: It is used for building flood embankments and reinforcing riverbanks to prevent flood disasters. Road Clearance: It can remove debris after earthquakes or mudslides, and clear snow in winter when equipped with a snowplough attachment. |
| 5. Specialised Environment Operations Confined Space Operations: Thanks to its tire-based mobility and small turning radius, it is perfect for working in narrow areas that are inaccessible to large excavators, such as alleyways, factory interiors, and backyards. Road Construction: It is used for subgrade compaction and excavation work in the construction of rural roads and simple pathways. |
| Q: What are large backhoe loaders mainly used for? |
| A: Large backhoe loaders are commonly used in road construction, large-scale municipal projects, industrial park development, water conservancy renovations, and major pipeline laying. They offer greater digging force and loading capacity, making them well suited for continuous operation in open spaces. |
| Q: What are the advantages of a large backhoe loader over a compact model? |
| A: Large backhoe loaders provide greater digging depth, higher loading clearance, and larger bucket capacity with stronger lifting capability. In addition, their heavy‑duty axles and reinforced structures deliver stable performance in complex ground conditions and heavy‑load applications, significantly improving efficiency in large‑scale operations. |
| Q: Can large backhoe loaders be used in mines or quarries for support work? |
| A: Yes. In mines, quarries, and similar environments, large backhoe loaders are often used for clearing work areas, stockpile handling, breaking oversize materials with a hydraulic breaker, and building temporary access roads. Their ability to quickly change attachments makes them adaptable to demanding support tasks. |
| Q: How do large backhoe loaders contribute to large‑scale pipeline projects? |
| A: Large backhoe loaders can be used to excavate long trenches, backfill soil, and transport materials with the front loader bucket while also leveling the site. Compared to single‑function equipment, they help reduce the number of machines on site and improve workflow efficiency in pipeline construction. |
| Q: Are large backhoe loaders suitable for the rental market? |
| A: Yes, they are an excellent fit. With their multi‑function capability, large backhoe loaders allow rental companies to serve a wide range of customer needs, including road repairs, industrial facility construction, and agricultural water management projects. They maintain high resale value and have relatively manageable maintenance costs, making them a reliable addition to rental fleets. |
