The 15-20X Backhoe Loader is a versatile multi-purpose workhorse built for European markets. Powered by a 37KW engine with an operating weight of 2800kg and a travel speed up to 25km/h, this compact backhoe loader is equipped with 12-16.5 tires for stable off-road performance.
It features six core advantages: European-style lift arm, semi-open rear window, deluxe cab, heater and air-conditioner, reinforced pin shaft and EB-spring mount. The deluxe cab with heating and air conditioning delivers comfortable operation all year round.
Supported by a quick-change system, it can be fitted with a 6-in-1 bucket, agitator bucket and other attachments to complete digging, loading, material mixing, site cleaning and earthmoving tasks. It is widely used for farm work, landscaping, municipal maintenance and small construction projects. Its robust reinforced pin shaft and reliable spring mount structure guarantee long service life under heavy-duty working conditions.
| Quantity: | |
|---|---|
| European-style Lift Arm：European optimized boom structure delivers strong lifting force and stable performance for heavy loading and digging work. |
Semi-open Rear Window：Semi-open rear window improves ventilation and visibility, making inspection and cleaning easier for operators. |
Deluxe Cab：Spacious deluxe cab provides a safe, quiet and comfortable operating environment for long-hour work. |
| Heater & Air-conditioner：Built-in heater and air conditioning, suitable for all seasons, keeps operators comfortable in hot or cold weather. |
| Reinforced Pin Shaft：Thickened reinforced pin shaft enhances structural strength, anti-wear and anti-deformation for long heavy-duty use. |
| EB-Spring Mount：EB spring mount effectively absorbs vibration, reduces impact and improves driving stability. |
| Quick Change Attachment System：Supports fast switching of multiple attachments including 6-in-1 bucket, agitator bucket, to finish digging, loading, mixing and cleaning tasks. |
YAWEH VS A Certain Factory Brand
A wide-area anti-fall object protection net is installed on the top of the driver's cab, ensuring high safety.
Full-coverage structures are adopted for tires on both sides of the vehicle body, preventing scratches to the paintwork and impact & corrosion on chassis edges to reduce body wear.
European-style front end with tapered middle section of the boom. No straight arm crossbeam obstructs the lower front of the cab, allowing unobstructed full visibility of the bucket, cutting edge and front wheels throughout operation.
The rear cab window can be partially opened, facilitating observation of the working status of the rear digging assembly, improving air circulation inside the cabin, and quickly dissipating hot air and exhaust gas within the enclosed compartment.
The air filter is located on the side of the vehicle body outside the cab, avoiding occupying the space within the cab and optimizing the internal layout. Compared to the interior of the cab, it is less likely to accumulate fine debris such as dust, lint, and food residues.
The heating fan and air conditioner are located in a small compartment on the right side of the driver's cabin. They do not occupy the space of the inside space, optimize the internal layout and have a good heating effect.
The patented swivel support and boom base have been specially developed. They feature strong load-bearing capacity, smooth rotation, durability and stability, as well as tight sealing. The swivel radius can truly reach 180 degrees.
The shafts of the entire vehicle are made thicker to enhance the load-bearing capacity and resistance to deformation. They can withstand greater axial force, radial force and bending moment, reducing the risk of bending or fracture.
The outriggers of the excavator are equipped with safety hydraulic locks. In case of a rupture of the oil pipe, the hydraulic cylinders will be locked to prevent the outriggers from moving.
The water inlet is located on the rear side of the vehicle, making it easy to add water.
The seat can be fully flipped up, making it convenient for maintenance.
The battery is located inside the outer enclosure of the vehicle, making it more convenient and quicker for maintenance and servicing.

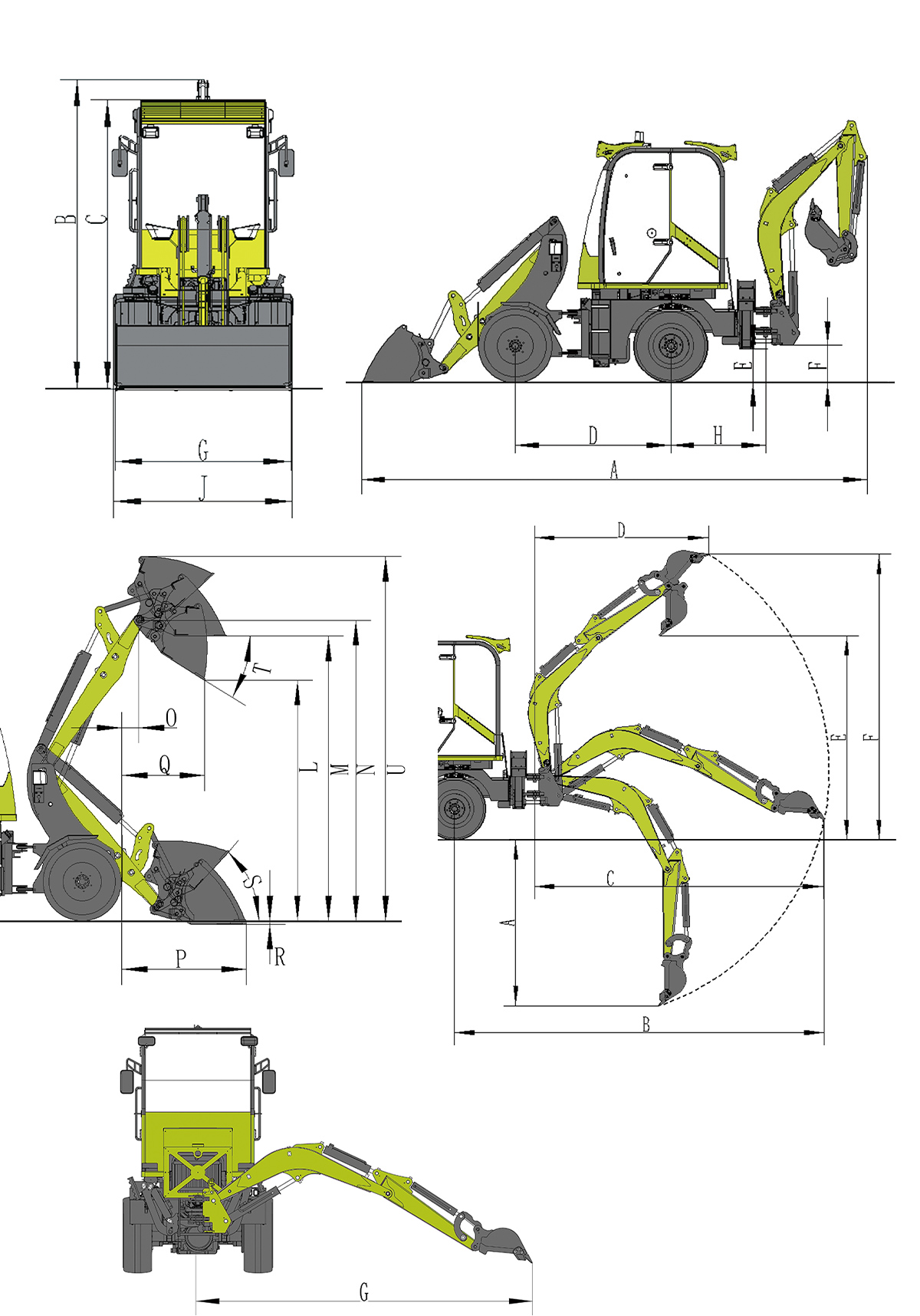

Outlines | |
A Total travel length | 5300mm |
B Total travel height | 2820mm |
C Cab height | 2600mm |
D Wheelbase | 1600mm |
E Outrigger ground clearance | 385mm |
F Articulated point ground clearance | 420mm |
G Bucket width | 1600mm |
H Distance between articulation and axle | 996mm |
J Rear frame width | 1600mm |
Bucket capacity | 0.6m³ |
Machine weight | 2800kg |
STATIC PARAMETER | |
L Dump height | 2400mm |
M Load over height | 2810mm |
N Loader hinge pin height | 2970mm |
O Front distance of loader pin | 165mm |
P Bucket digging radius | 1230mm |
Q Max.digging radius at top point | 320mm |
R Digging radius at highest and max unloading height | 50mm |
S Ground bucket angle | 48° |
T Unloading angle | 32° |
U Max.working height | 3600mm |
Max.load capacity | 1200kg |
Digging Parameters | |
A Max. dig depth | 2350mm |
B Max.distance between rear wheel and digging extreme point | 4590mm |
C Max.distance between articulation and digging extreme point | 3570mm |
D Max.distance between articulation and digging extreme point when at toppest | 2150mm |
E Max.Loading height | 2550mm |
F Operating height | 3570mm |
G Max.distance between articulation and digging extreme point | 3600mm |
Bucket rotate angle | 180° |
Bucket width | 420mm |
Bucket capacity | 0.08m³ |
Powertrain | |
Engine model | Yunnei 25GB/Kubota/Yunnei 27GBZ |
Engine Power | 37/18.2/55kw |
Axle Type | Heavy-Duty Axle |
Tire Specification | 12-16.5/31*15.5-15 |
Speed change type | Hydraulic variable speed driver |
Multi-functional Integrated Operation：This machine integrates digging, loading, bulldozing and leveling functions in one unit. It can replace multiple separate machines, cutting your equipment investment and boosting overall job-site productivity.
Ideal for Confined Working Spaces：Boasting a compact frame, small turning radius and agile maneuverability, it works efficiently in yards, farms, narrow lanes, basements and other restricted areas where large machinery cannot access.
Broad Cross-industry Application：It fits perfectly for municipal engineering, landscaping, farm development, rural infrastructure projects, road maintenance, livestock farms and a wide range of small-scale construction works.
Versatile Attachment Compatibility：It supports a full lineup of optional attachments including breakers, augers, grapples and pallet forks to deliver diversified operations such as drilling, crushing, material handling and trenching.
Intuitive Operation & Excellent Cost Performance：User-friendly controls, low fuel consumption, consistent reliable performance and straightforward maintenance make it a cost-effective solution for farmers, contractors and small construction crews.
Q: What attachments are compatible with this 15-20X backhoe loader?
A: It comes with a quick change system. You can easily switch between the 6-in-1 bucket, agitator bucket and other attachments to complete digging, loading, mixing and site cleaning work.
Q: What is the power and travel speed of the 15-20X backhoe loader?
A: It is equipped with a 37KW engine. Its maximum travel speed can reach 25 km/h for efficient transfer between job sites.
Q: Does the deluxe cab support all-season operation?
A: Yes. The cab is fitted with heater and air-conditioner. Together with the semi-open rear window, it delivers good ventilation and temperature control for hot summers and cold winters.
Q: How does the EB-spring mount improve operating experience?
A: The EB-spring mount absorbs vibration and impact from rough terrain. It reduces shaking during driving and digging, improving operator comfort and protecting core components.
Q: What benefits does the reinforced pin shaft bring?
A: The reinforced pin shaft greatly improves structural rigidity. It is wear-resistant and anti-deformation, maintaining stable performance under continuous heavy-duty digging and loading.
