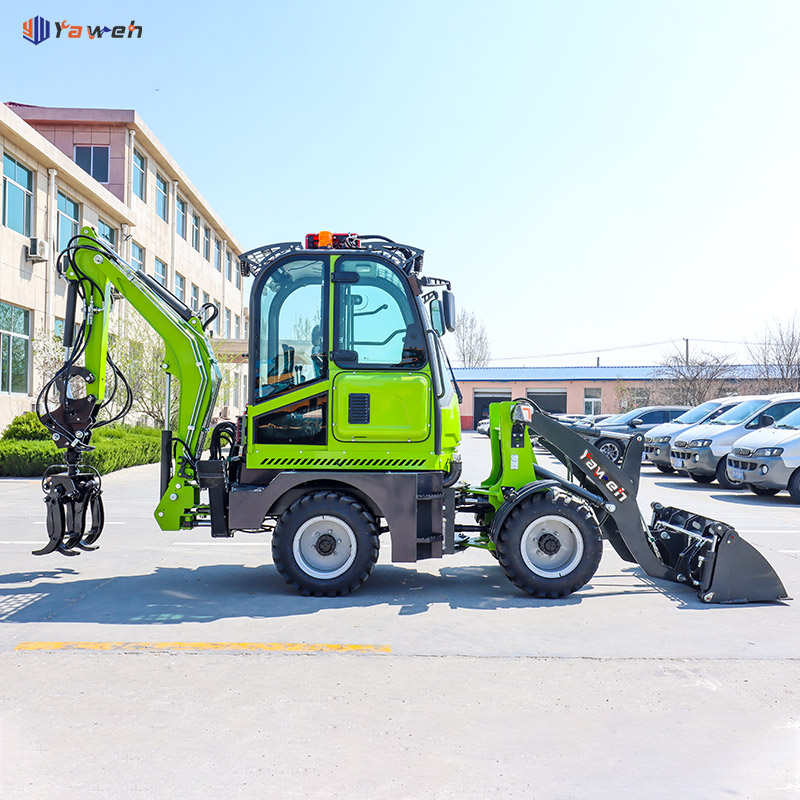

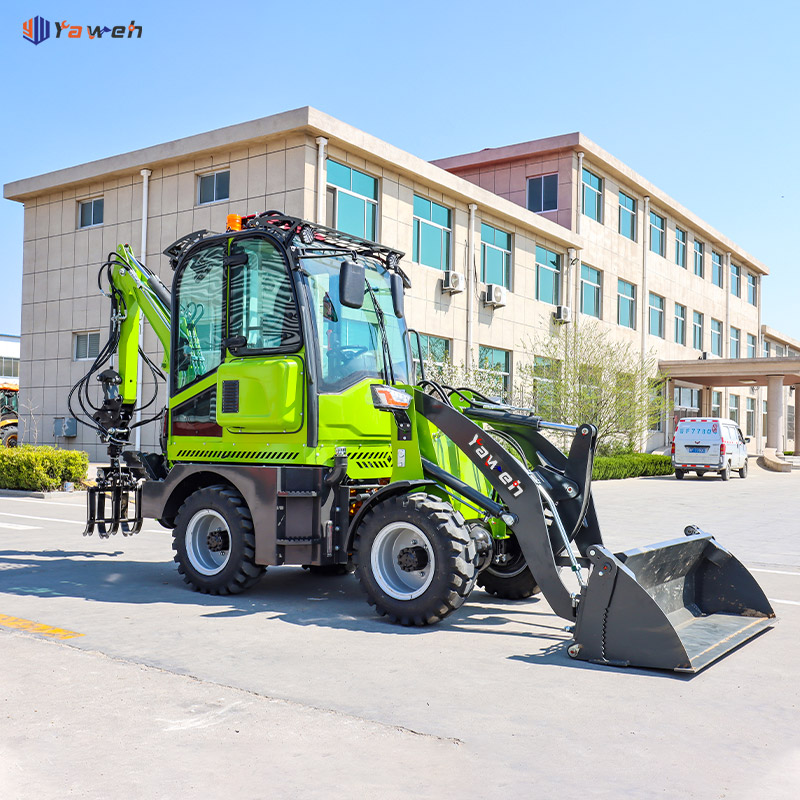

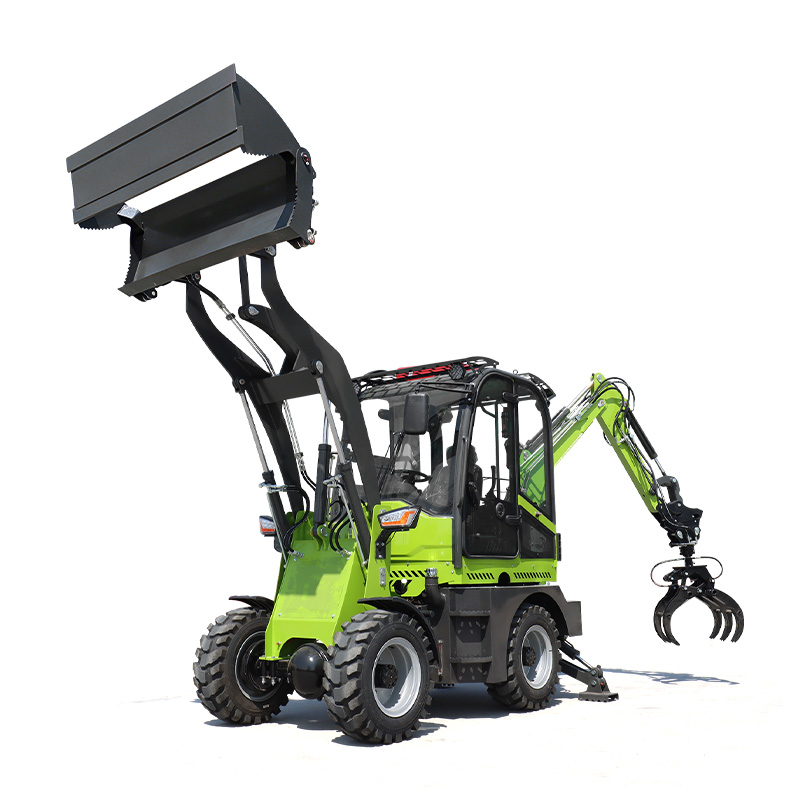

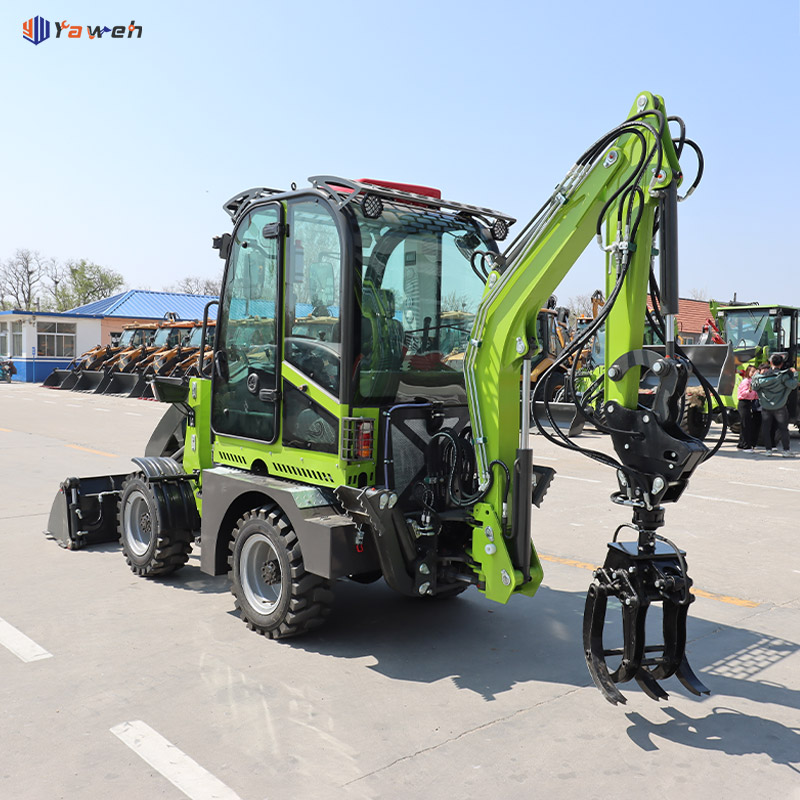

YAWEH15-20 is suitable for small-scale operation environments such as farms, gardens, livestock farms, and construction sites. The main features of the machine are its compact size, flexible operation, and high efficiency. It can be customized according to actual needs. It can achieve various functions through quick-change devices, such as crushing, drilling, and snow removal, and is suitable for various engineering applications.
| Quantity: | |
|---|---|
| A wide-area anti-fall object protection netis installed on the top of the driver's cab,ensuring high safety. |

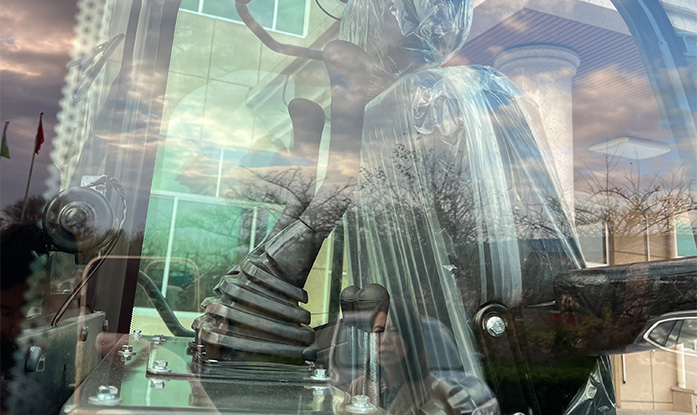

| The cab is well-arranged, spacious, dust-proof,noise-reducing and offers a high level ofcomfort. |

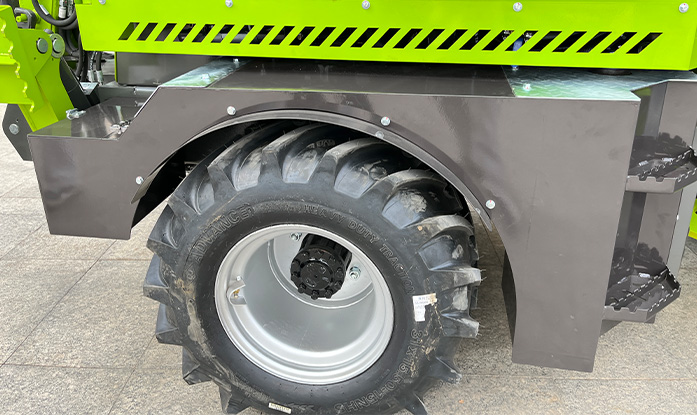

| The tires on both sides of the vehicle are of fully enclosedstructure. They prevent the dust and stones that are kicked upby the tires during movement, avoiding damage to the machinepaint and the corrosion of the chassis edges caused by impacts,thereby reducing the wear and tear of the vehicle body. |

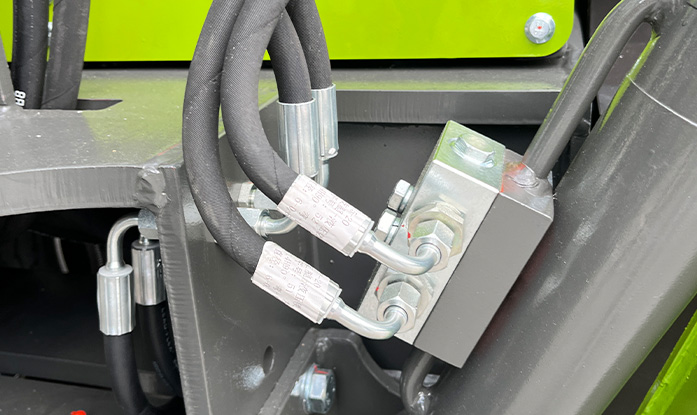

| The outriggers of the excavator are equipped with safetyhydraulic locks. In case of a rupture of the oil pipe, thehydraulic cylinders will be locked to prevent the outriggers from moving. |

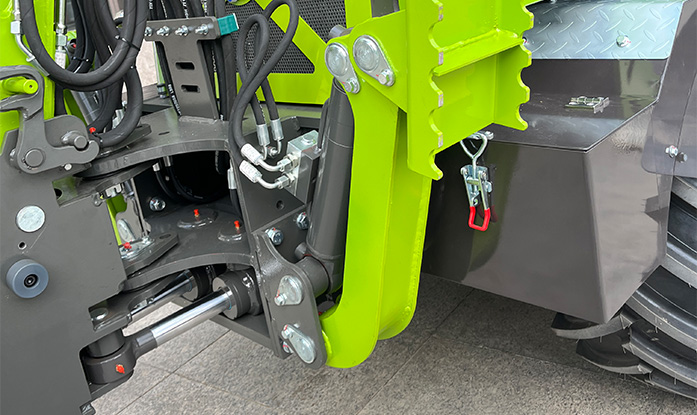

| The patented swivel support and boom base have been specially developed. They feature strong load-bearing capacity, smooth rotation, durability and stability, as well as tight sealing.The swivel radius can truly reach 180 degrees. |
| The shafts of the entire vehicle are made thicker to enhance the load-bearing capacity and resistance to deformation. They can withstand greater axial force, radial force and bending moment, reducing the risk of bending or fracture. |

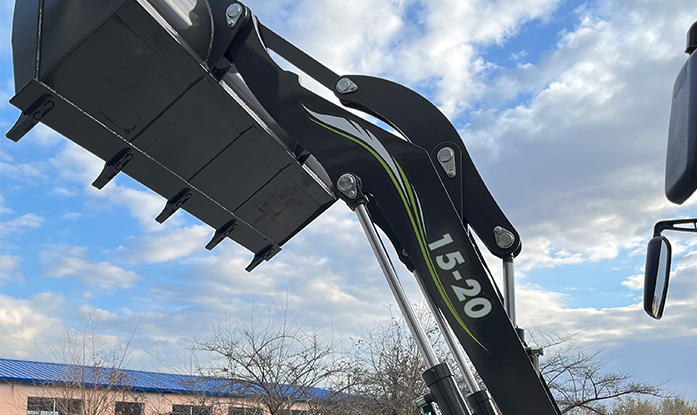

| The thickness of the "S" bend part of the mainboom has been increased, which can enhance its ability to withstand loads. |
YAWEH VS A Certain Factory Brand

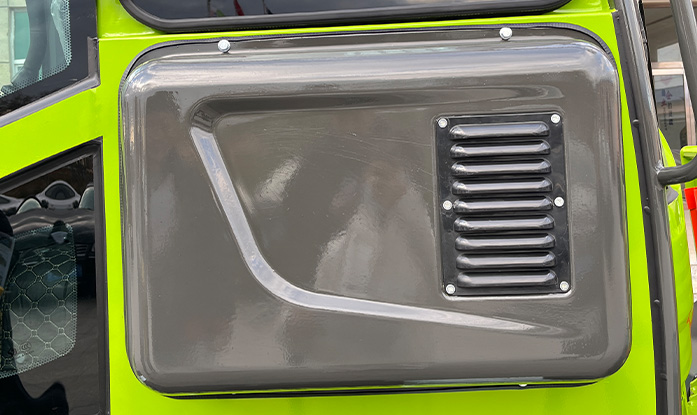

The external air conditioner improves the heat dissipation effect of the radiator, and the cab space is more spacious and the operation is more comfortable.
The front and rear integrated fuel tanks, unique design, patented products, increase the stability of the body structure, and effectively protect the tires.
Ultra-short outriggers, the length does not exceed the body body, flexible operation in a small space, flexible little helper for household and agricultural use.

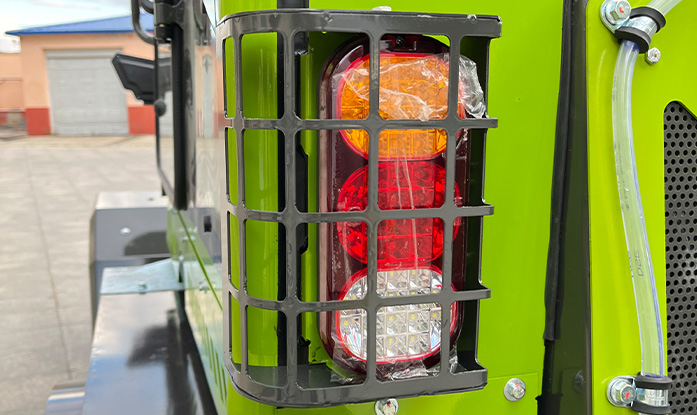

High-mounted running lights improve driving safety and provide you with safety warnings at all times.
Hydraulic lock to protect the stability of the body and prevent the machine from rolling when the oil pipe is ruptured.
Regular excavator operating system, excavator special excavator arm, flexible operation, strong and powerful excavation, smooth action.

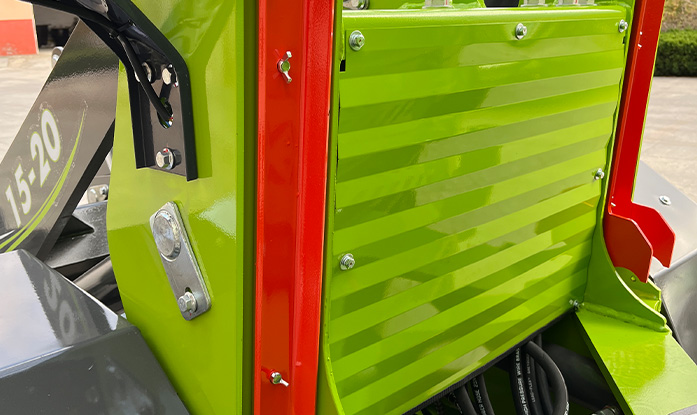

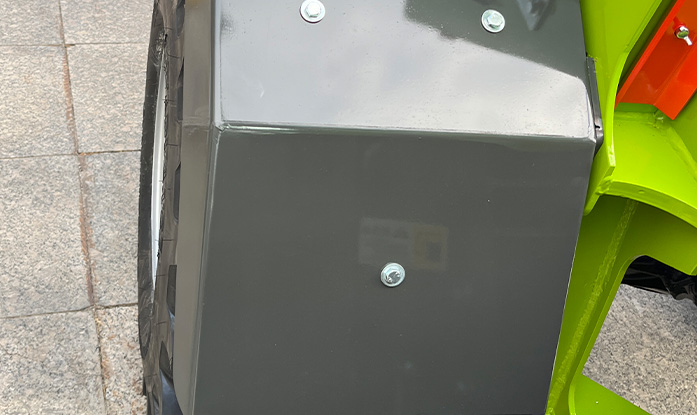

Extra-wide and extra-long fenders to better protect the body and keep your partner fresh at all times.
Hydraulic cylinder protector to prevent the fuselage from landing, maintenance or exhibition to ensure personal safety.

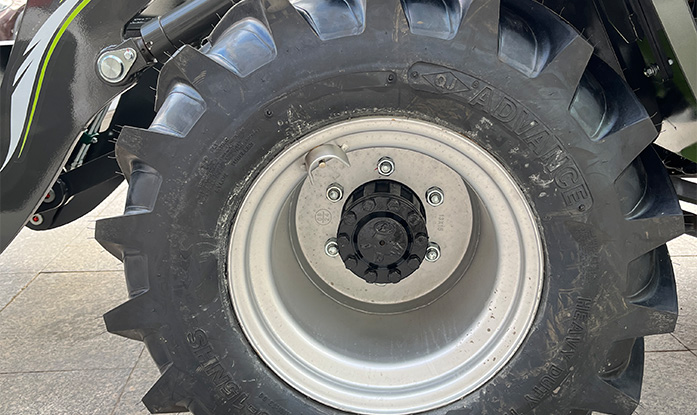

Tires,widened tread,allow you to protect the greenery when driving on the garden grass,improve the machine's ability to get out of trouble on muddy roads.
Three-flat design, the bucket is always kept horizontal during the lifting process, effectively preventing the material from spilling, and the bucket is parallel to the ground when the bucket is placed on the ground without manual adjustment.

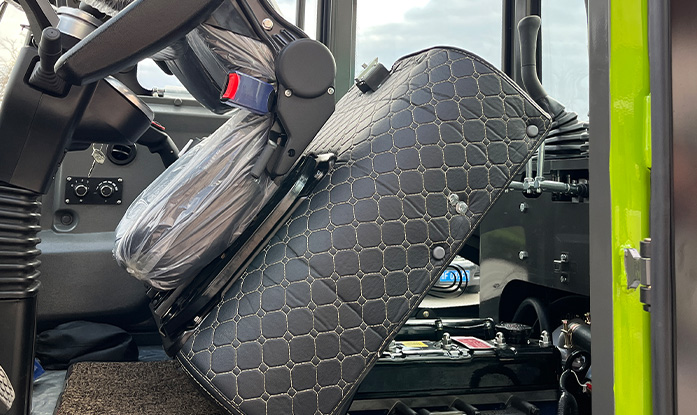

The column-type single-meter instrument panel can be adjusted to increase the indoor operation space.Single-lever operating handle,easy to shift,simple to operate,forward and backward one second switching,making the work simpler and more efficient.The height of the steering wheel can be adjusted according to individual needs.The retractable cockpit canopy makes maintenance easy and fast.

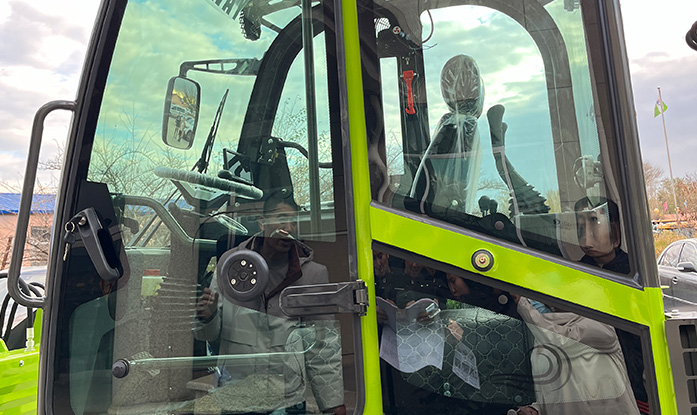

The new European-style cab has a beautiful shape, all-round glass doors and windows in the cab, a wide field of vision, and no dead angle operation. The tubular skeleton structure enhances the stability of the body and prevents the cab from rolling.
Outlines | |
Outline dimension (mm) | 5200*1600*2560 |
Wheel base (mm) | 1620 |
Track width (mm) | 1120 |
Min ground clearance (mm) | 220 |
Min turning radius (mm) | 4200 |
Performance | |
System pressure (Mpa) | 16 |
Machine weight (kg) | 2800 |
Max speed (km/h) | 25 |
Max climbing capacity (°) | 25 |
Min.turning radius (mm) | 2310 |
Excavator | |
Bucket capacity (m³) | 0.12 |
Bucket Width (mm) | 475 |
Boom Length (mm) | 1860 |
Max digging depth (mm) | 2350 |
Max digging radius (mm) | 3500 |
Max digging height (mm) | 3360 |
Unloading height (mm) | 2280 |
Angle of rotation of excavator (°) | 180 |
Loader | |
Max. lifting height (mm) | 3100 |
Max. unloading height (mm) | 2430 |
Max. load capacity (kg) | 1000 |
Machine width (mm) | 1600 |
Bucket capacity (m³) | 0.6 |
Engine | |
Model | Yunnei 490 |
Rated power (kw) | 37 |
Rated speed (r/min) | 2400 |
Cylinder No.-diameter | 4-90 |
Steering System | |
Type | Articulated fully hydraulic |
Steering angle (°) | 38 |
Axle | |
Type | 50 axle |
Tyre | |
Size | 12-16.5 |
Service brake | Gas cap oil clamp disc brake |
Parking brake | Hand break |
Oil | |
Diesel (L) | 47.5 |
Hydraulic oil (L) | 47.5 |
Other | |
Driving type | 4×4 |
Speed change type | Hydraulic variable speed driver |
| 1.Multi-functional integrated operation |
| It combines digging, loading, bulldozing, and leveling in one machine, effectively replacing multiple pieces of equipment to reduce investment and improve work efficiency. |
| 2.Perfect for narrow working spaces |
| With compact structure, small turning radius and flexible movement, it is widely used in yards, farms, alleys, basements and other confined areas where large machinery cannot enter. |
| 3.Wide application in multiple industries |
| Suitable for municipal engineering, landscaping, farm construction, rural infrastructure, road maintenance, breeding farms and small engineering projects. |
| 4.Compatible with various attachments |
| Can be equipped with breaker, auger, grapple, fork and other accessories to achieve drilling, crushing, handling, ditching and other diversified operations. |
| 5.Easy operation & high cost performance |
| Simple to control, low fuel consumption, stable performance and convenient maintenance, making it an ideal choice for farmers, contractors and small construction teams. |
Q: What are the typical applications of a mini backhoe loader?
A: Ideal for narrow-space jobs: residential foundation digging, garden landscaping, farm irrigation, municipal pipe laying, road maintenance, material handling, and small construction projects. It performs both digging and loading in confined yards, alleys, and indoor renovations.
Q: Why is my mini backhoe loader slow or weak in operation?
A: Mainly caused by low hydraulic oil, clogged filter, worn hydraulic pump, or improper pressure. Also results from overloading, prolonged high-temperature operation, or contaminated oil. Regular filter replacement and oil level checks restore speed and power.
Q: Can a mini backhoe loader work on slopes or soft ground?
A: Yes, but with limits: safe slope ≤ 15°. Use outriggers and down blade for stability. Avoid sudden swinging or heavy digging uphill. For soft soil, reduce load and keep tracks wide to prevent sinking or tipping.
Q: How to prevent hydraulic leakage on a mini backhoe loader?
A: Avoid violent operation (prying, impact). Check hoses, seals, and connectors daily. Replace worn seals in time. Use recommended hydraulic oil. Keep the system clean; contamination damages seals and causes leakage.
Q: What’s the standard digging depth and loading capacity?
A: Most mini models: digging depth 1.8–2.8m; loading capacity 0.15–0.3m³; lifting capacity 500–1200kg. Sufficient for household, farm, and municipal jobs. Custom depth and attachments available for special projects.
