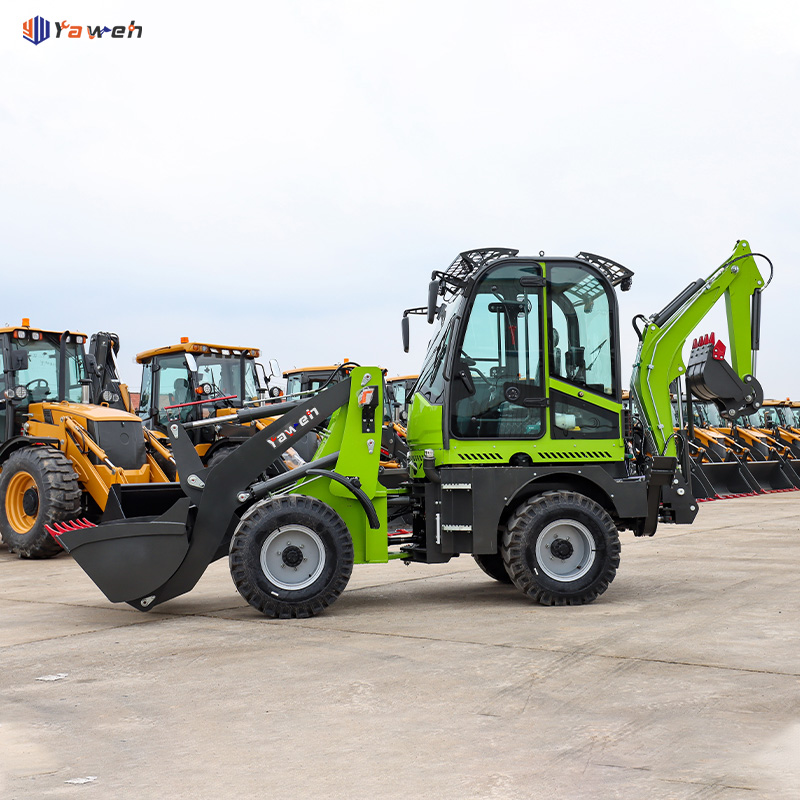

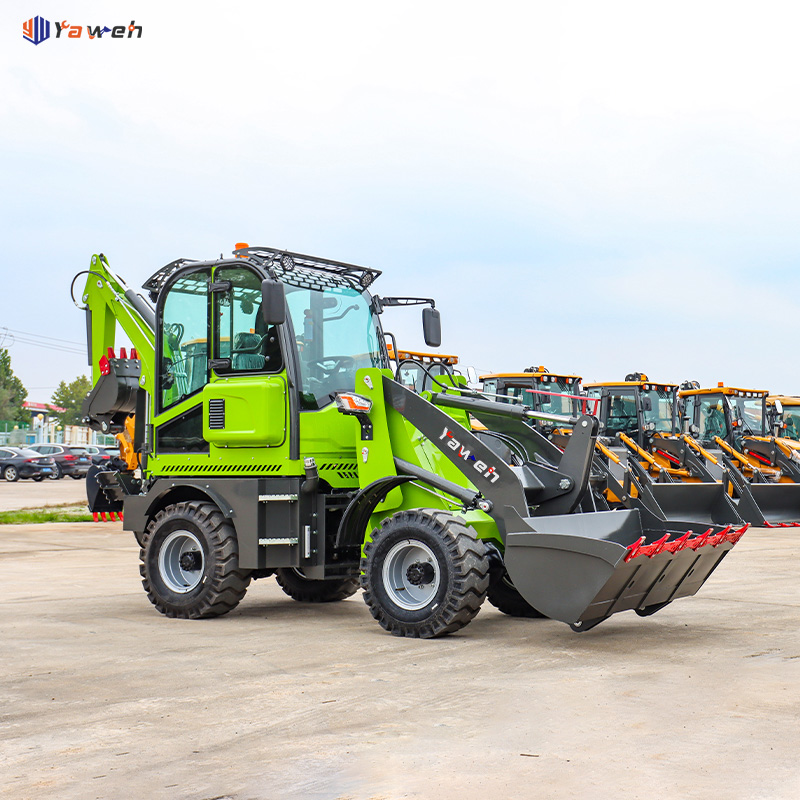

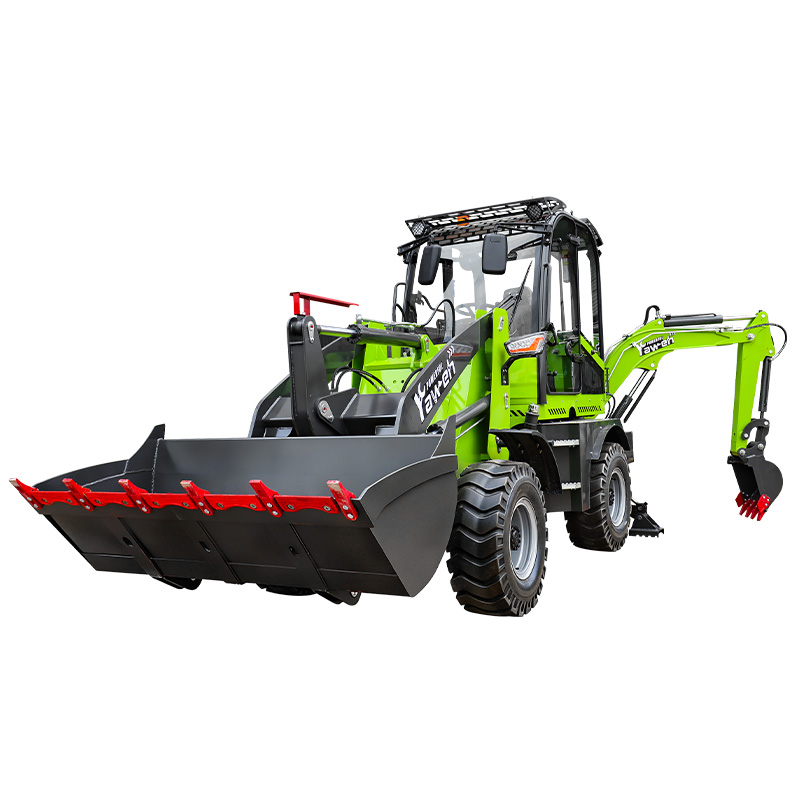

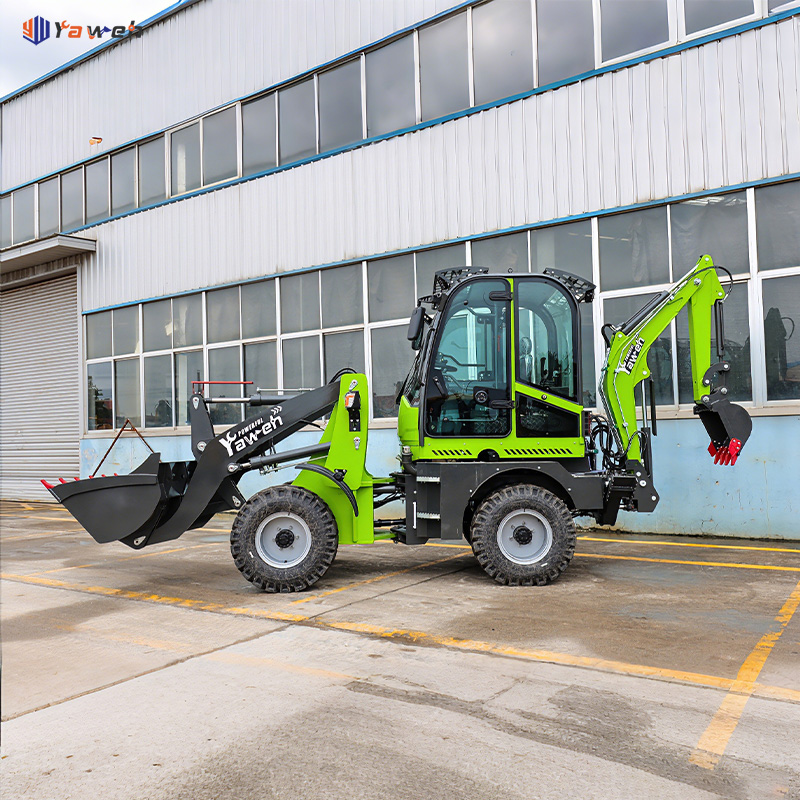

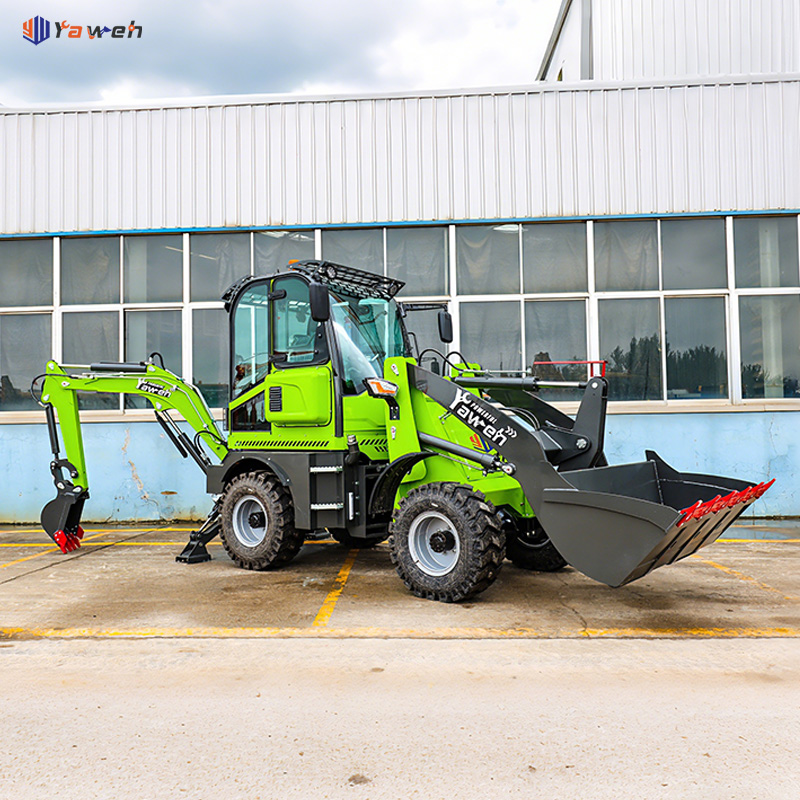

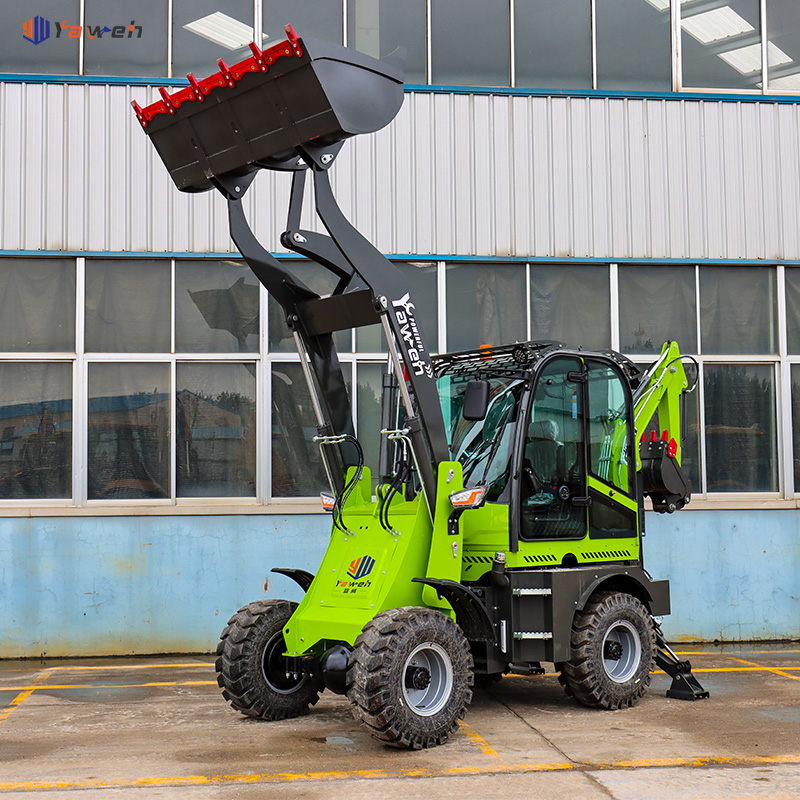

The 18-25 is a compact multi-purpose construction machine that combines the functions of a loader and an excavator, enabling it to perform a variety of tasks including loading, digging, crushing, levelling, and excavation. This equipment typically features a loader bucket at the front and an excavator bucket at the rear, offering advantages such as flexible operation, ease of maintenance, and reliable safety.
| Quantity: | |
|---|---|
YAWEH VS A Certain Factory Brand

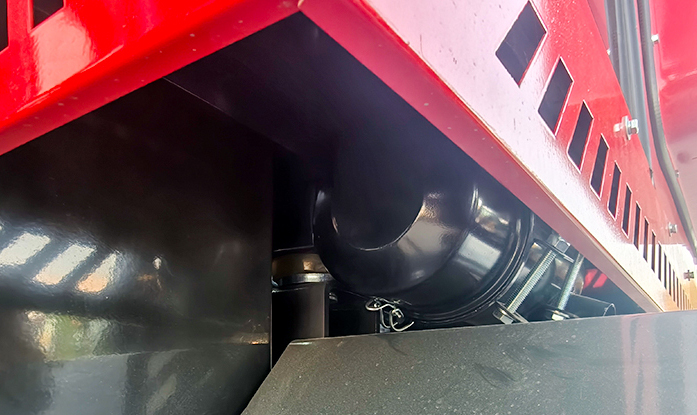

Empty wave position dry cab exterior body opening, free travel point Indoor areas are less likely to accumulate dust, fluff, and food residues Small debris such as slag.
The air filter is located inside the cab, occupying internal space and affecting Layout and maintenance, the air temperature inside the cab is usually high The external environment will directly affect the intake quality of the engine Quantity and combustion efficiency.

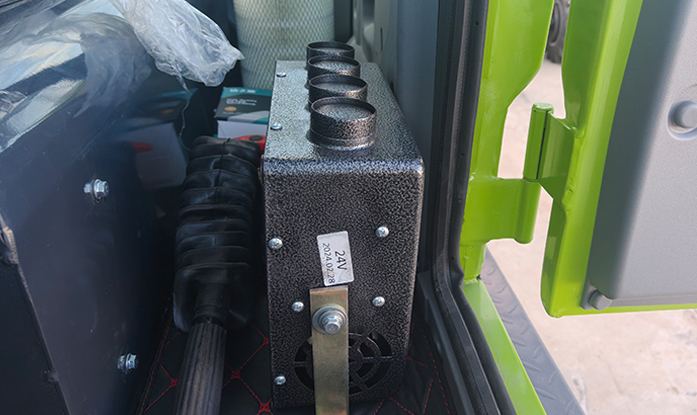

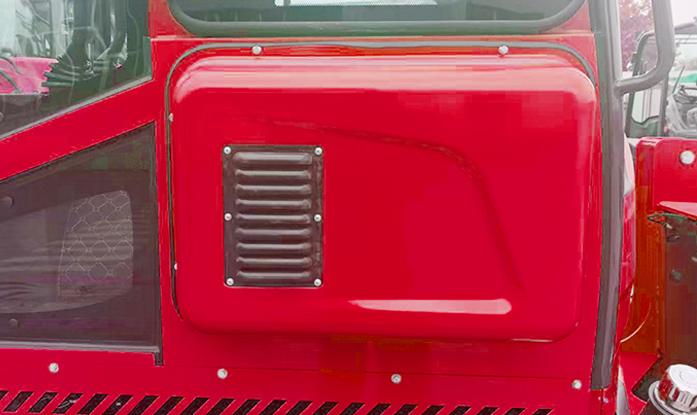

The Haofeng and air conditioning are located in the small backpack on the right side of the cab Occupying cabin space, optimizing internal layout and heating efficiency Good fruit.
The heating and air conditioning are located inside the driver's cabin, and the noise level can be very high, which requires a lot of space in the cabin.

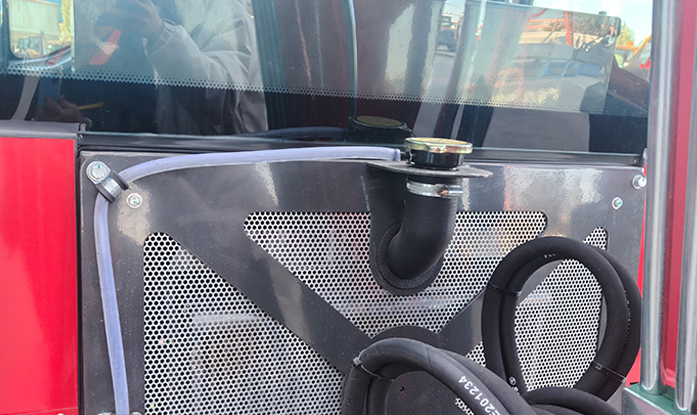

The water inlet is located at the rear of the vehicle for easy addition.

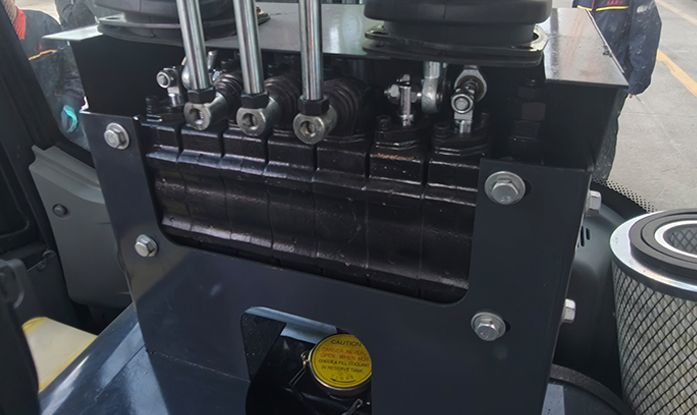

The water inlet is hidden under the excavator control lever, making it very difficult to add water.

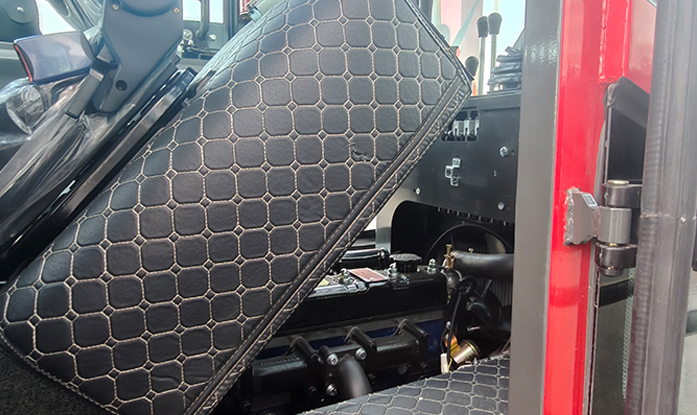

The seat can be flipped up as a whole for easy maintenance.
The seat cannot be flipped up, making maintenance very difficult.

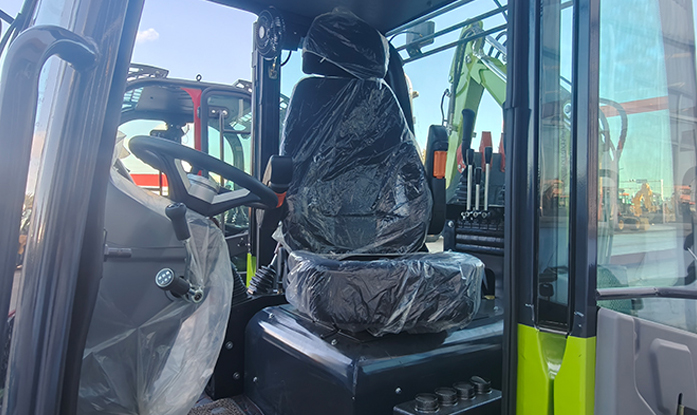

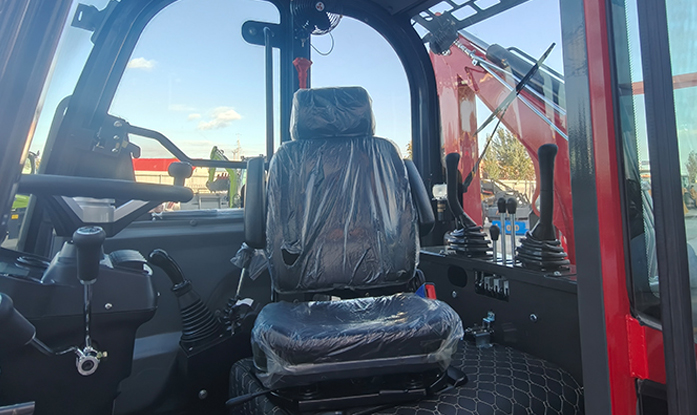

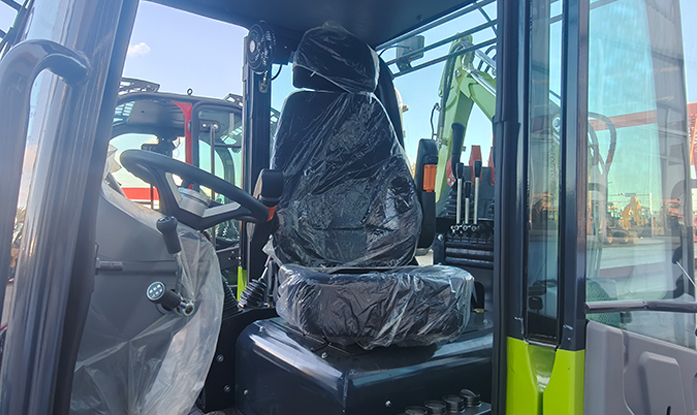

The layout of the cab is reasonable, spacious, dust-proof and noise proof, and highly comfortable.
The cabin space is compact, with rotating seats and a fan, multiple gaps inside, loud noise, and dust ingress,

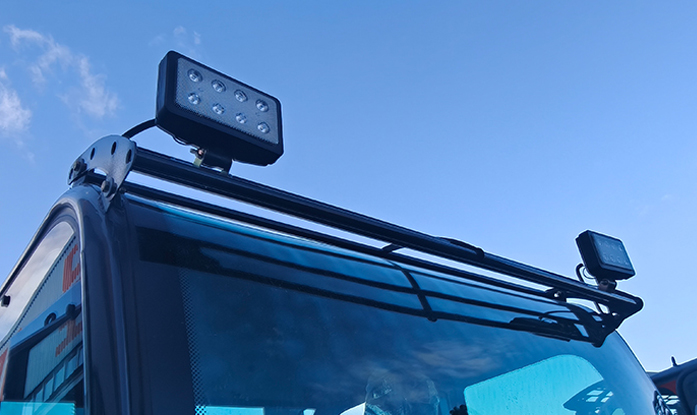

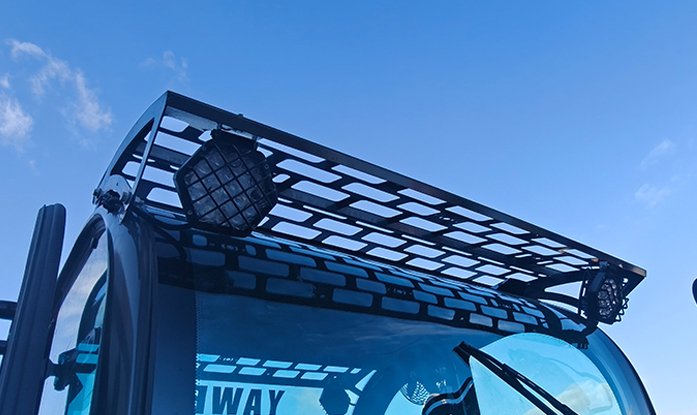

The top of the cab is equipped with a wide area anti falling object protection net, ensuring a safe level.
There are only three simple anti-collision strips at the top, with almost no protective function.

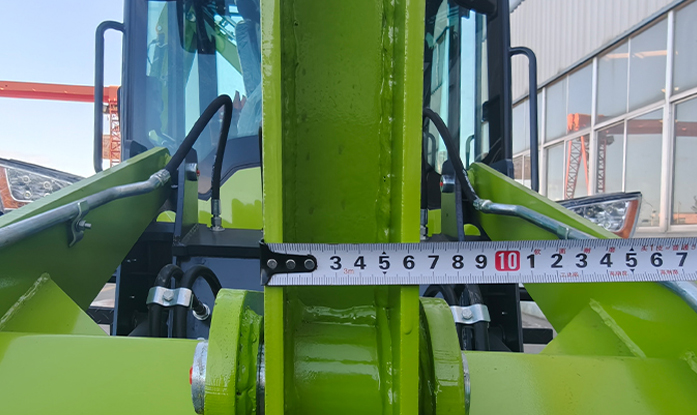

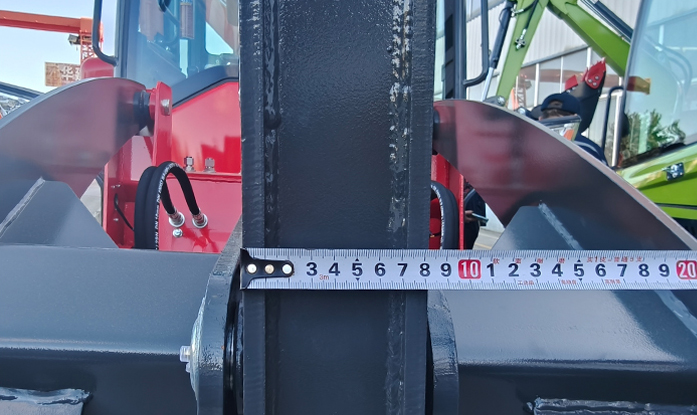

The increase in thickness of the S-bend section of the upper arm can improve its load-bearing capacity.
The 5-bend size of the boom is thin and the structural strength is insufficient, which will directly lead to a decrease in bearing capacity, easy deformation and damage, and significantly shorten the service life of the spare parts and increase safety risks.

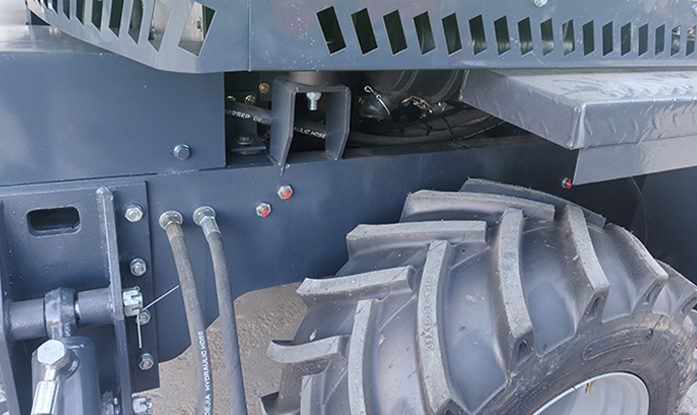

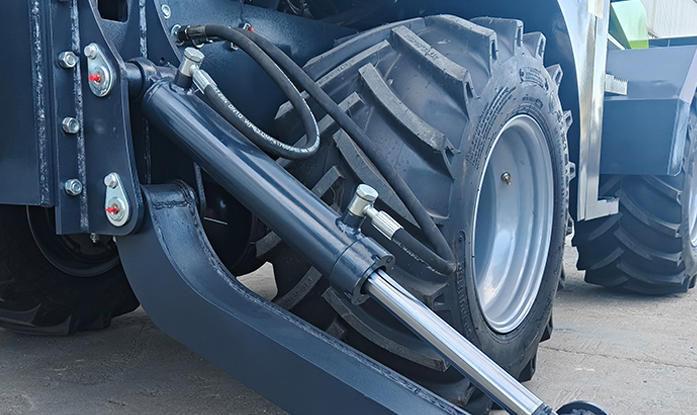

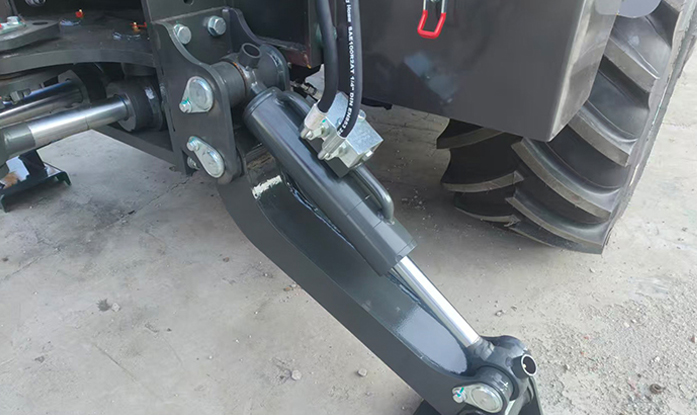

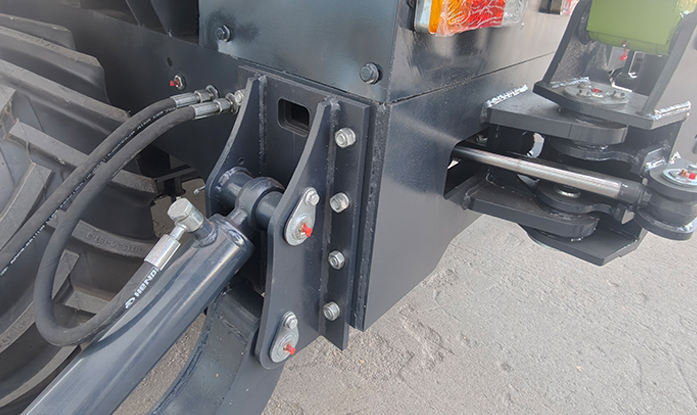

The excavator legs are equipped with safety hydraulic locks, which will lock the oil cylinder and keep the legs stationary in case of oil pipe rupture.
Without a safety hydraulic lock, in the event of a ruptured oil pipe, the oil cylinder will instantly release pressure, causing the vehicle to roll over.

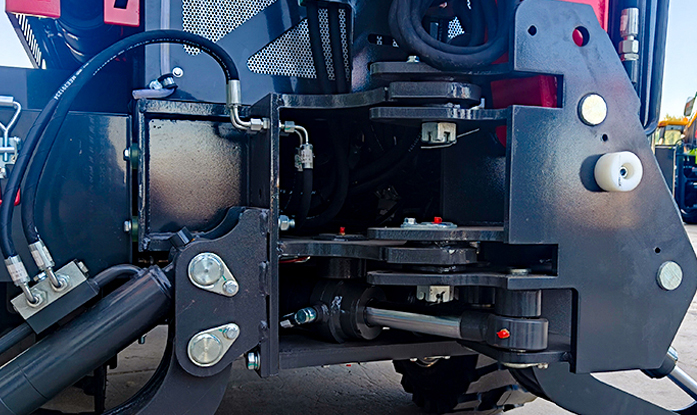

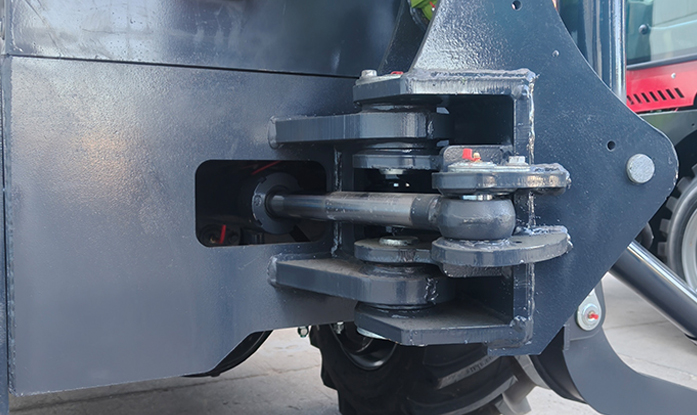

The exclusively developed and designed slewing bearing and one arm seat have strong load-bearing capacity, smooth rotation, durability and stability, and tight sealing, with a slewing radius of up to 180 degrees.
The design structure of the one arm seat is simple, and the turning radius of the excavator is small, Cannot reach 180 degrees.

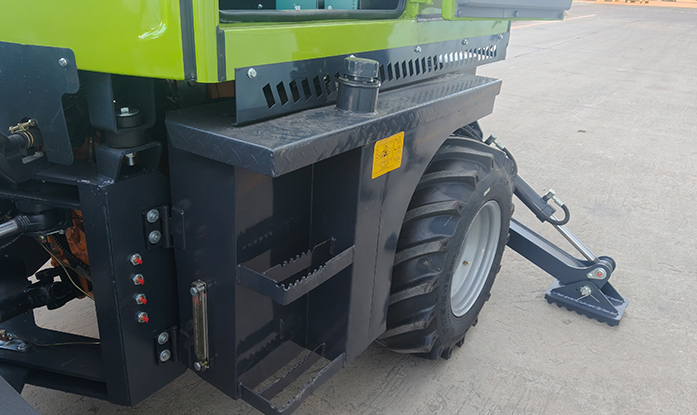

The boarding platform has a large space and is non slip.

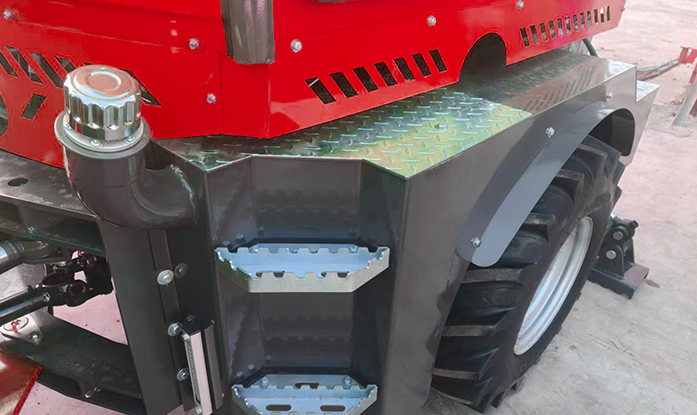

The space on the boarding platform is small, and it is easy to slip and feel uneasy in rainy and snowy weather All right.

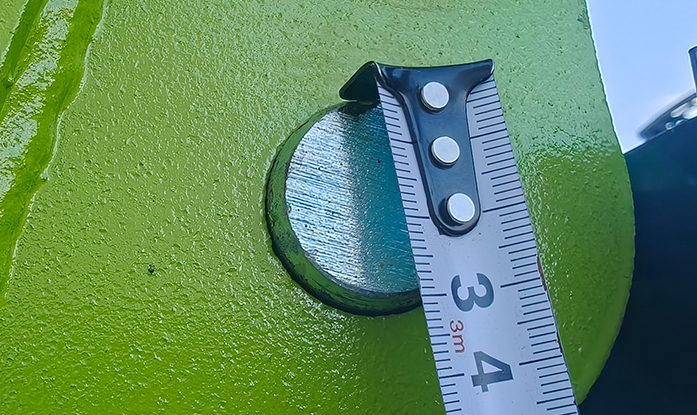

The entire vehicle is thickened to enhance its load-bearing and anti deformation capabilities, capable of withstanding greater axial, radial, and bending forces, reducing bending or fracture zones, and minimizing risks.

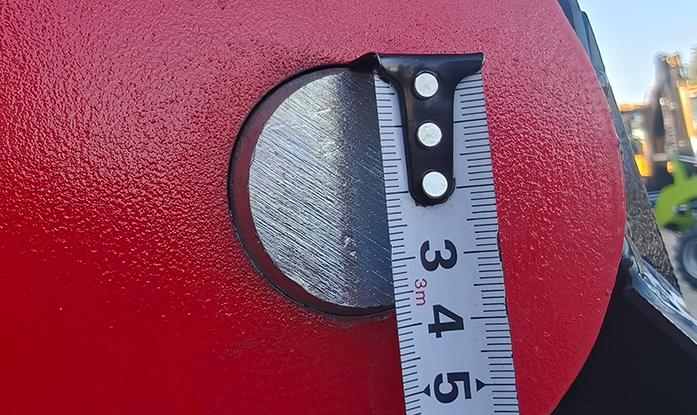

The pin axis of the upper arm is thin, and the connection stiffness is insufficient, making it easy to work Generating gaps and shaking, reducing the accuracy of the boom operation, and affecting The overall stability of the equipment is affected, which can easily cause malfunctions and safety hazards Suffering.

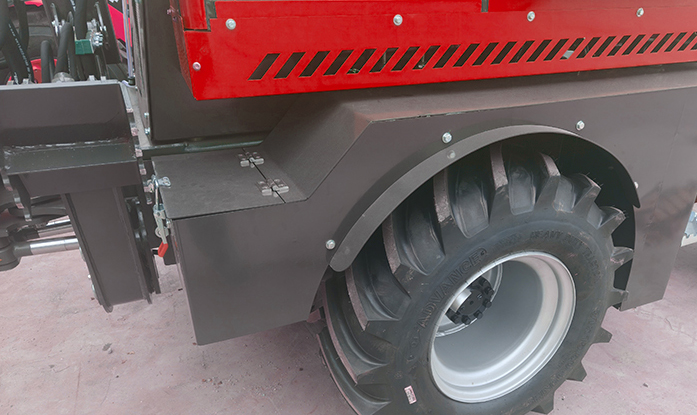

The tires on both sides of the vehicle are of full pressure structure, with female tires When driving, prevent the mud, stones, and debris from getting mixed up with the car paint! Flower and chassis edges are corroded by broadcasting, reducing body wear and tear
Both sides of the tires are not surrounded, making it easy for the body and tires to be damaged by mud, sand, and stones during operation.

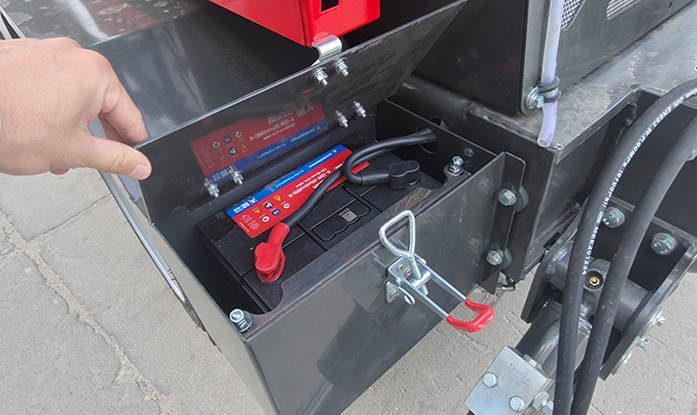

The battery is located inside the outer enclosure of the vehicle, making it easy to maintain and repair Nourish.
The battery is hidden at the bottom of the vehicle, making maintenance inconvenient and susceptible to erosion from mud and sand.

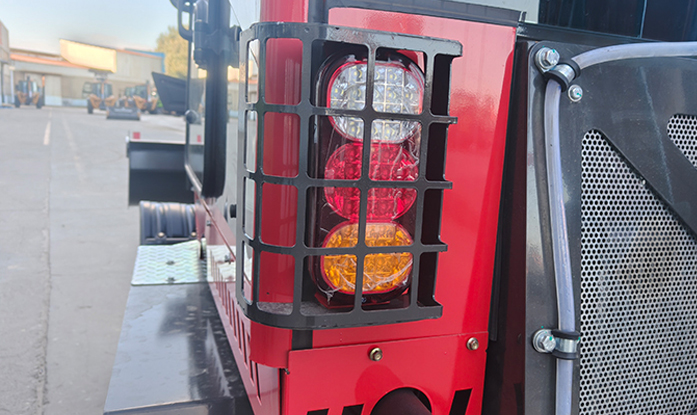

Iron protection rate is installed on the taillights to block stones, trees, and other debris Hard object impact to prevent the tail lamp cover from cracking and the lamp body from being damaged Extend the service life while ensuring driving safety.
The taillights lack any protection, which can easily lead to damage and safety issues The increase in hidden dangers will also increase the cost of use.
Outlines | |
Outline dimension (mm) | 5905*1680*2700 |
Wheel base (mm) | 1990 |
Traud (mm) | 1640 |
Min ground clearance (mm) | 260 |
Performance | |
System pressure (Mpa) | 16 |
Machine weight (kg) | 3400 |
Max speed (Km/h) | 25 |
Max climbing capacity (°) | 25 |
Min.turning radius (mm) | 2310 |
Excavator | |
Bucket capacity (m³) | 0.12 |
Bucket width (mm) | 420 |
Max digging depth (mm) | 2350 |
Max digging radius (mm) | 3500 |
Max digging height (mm) | 3360 |
Angle of rotation of excavator (°) | 180 |
Loader | |
Max. lifting height (mm) | 4300 |
Max. unloading height (mm) | 3200 |
Max. load capacity (kg) | 1600 |
Bucket width (mm) | 1800 |
Capacity (m³) | 0.6 |
Engine | |
Model | Yunnei 490 |
Rated power (kw) | 42 |
Rated speed (r/min) | 2400 |
Cylinder No.-diameter | 4-90 |
Type | Cylinder-in-line |
Steering System | |
Type | Articulated fully hydraulic |
Steering angle (°) | 38 |
Axle | |
Type | 50 axle |
Tyre | |
Size | 20.5/70-16 |
Travel brake | Gas cap oil clamp disc brake |
Parking brake | Hand brake |
Oil | |
Diesel (L) | 47.5 |
Hydraulic oil (L) | 47.5 |
Other | |
Driving type | 4×4 |
Speed change type | Hydraulic variable speed driver |
1. A dedicated tool for narrow space operations, suitable for various confined scenarios
With a compact body and flexible turning, it can easily navigate through yards, alleys, basements, farm passages and other areas inaccessible to large machinery. Whether it is indoor demolition, yard renovation or farm manure cleaning, it can operate flexibly to solve the problem of construction in narrow spaces.
2. Universal for multiple industries, balancing practicality and efficiency
Widely used in municipal engineering, landscaping, rural infrastructure and other fields, it can complete road repair, green belt trenching, small foundation pit excavation, road leveling operations. One machine is suitable for multiple scenarios, eliminating the need for frequent equipment replacement and greatly improving construction efficiency.
3. An exclusive helper for farms, reducing the cost of breeding and planting operations
Optimized and designed for farm needs, it can efficiently complete operations such as manure cleaning, land leveling, tree planting hole digging, feed handling, and fence foundation pit excavation. It is easy to operate, low in fuel consumption, and can be quickly mastered by novices, helping farmers save labor costs.
4. Convenient multi-functional switching, adapting to diverse operation needs
Standard equipped with a backhoe bucket and front loader bucket, it can be quickly replaced with attachments such as hydraulic breakers, augers, and log grabs, easily realizing multiple functions such as digging, loading, breaking, drilling, and material handling, to meet the personalized needs of different construction scenarios.
5. Lightweight design, suitable for small construction teams and individual use
The lightweight body is easy to transport and transfer without the need for large trailers. It is simple to maintain and has controllable costs. It is a cost-effective operation choice for small general contractors, individual constructors, farmers, and yard renovation practitioners.
Q: What is the mini backhoe loader used for?
A: The mini backhoe loader is primarily used for municipal projects, landscaping, farmland improvement, small-scale construction, farm waste cleanup and grading, road repairs, interior demolition, yard renovations, and other work in confined spaces. It combines digging, loading, breaking, dozing, and trenching functions, serving as a replacement for large equipment that cannot access tight areas.
Q: Can a small backhoe operate in confined spaces?
A: Yes. Small backhoe are designed with a narrow frame, a compact turning radius, and a streamlined counterweight. They are well suited for alleyways, yards, basements, farm paths, rural roads, and other restricted spaces—offering a flexible, irreplaceable alternative to larger excavators.
Q: What attachments can a small backhoe loader use?
A: Standard attachments include a backhoe bucket and a front loader bucket. The machine can also be quickly fitted with a hydraulic breaker, auger, log grab, sweeper, dozer blade, pallet fork, ripper, and more. This allows for drilling, breaking, material handling, cleaning, trenching, and other tasks, greatly enhancing the machine’s versatility.
Q: Is a mini backhoe suitable for farm use?
A: Absolutely. It can handle jobs such as cleaning animal waste, leveling land, digging ditches for drainage, preparing planting holes, moving feed, excavating foundations for fences, and maintaining ranch roads. It is versatile, fuel-efficient, easy to operate, and accessible even for beginners.
Q: What is the difference between a small backhoe loader and a mini excavator?
A: A small backhoe loader features loading at the front and digging at the rear, with fast travel speeds, making it well suited for loading, hauling, and short-cycle tasks.
A mini excavator is designed solely for digging and offers more precise control for deep trenching and slope work.
The small backhoe loader delivers greater overall efficiency and broader application, making it ideal for situations where frequent switching between digging and loading is required.
