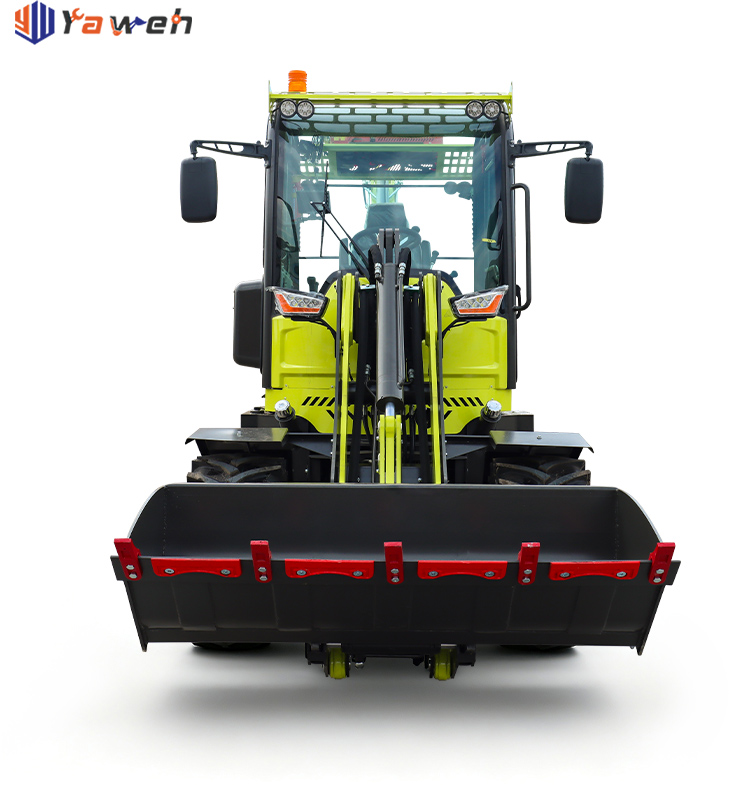

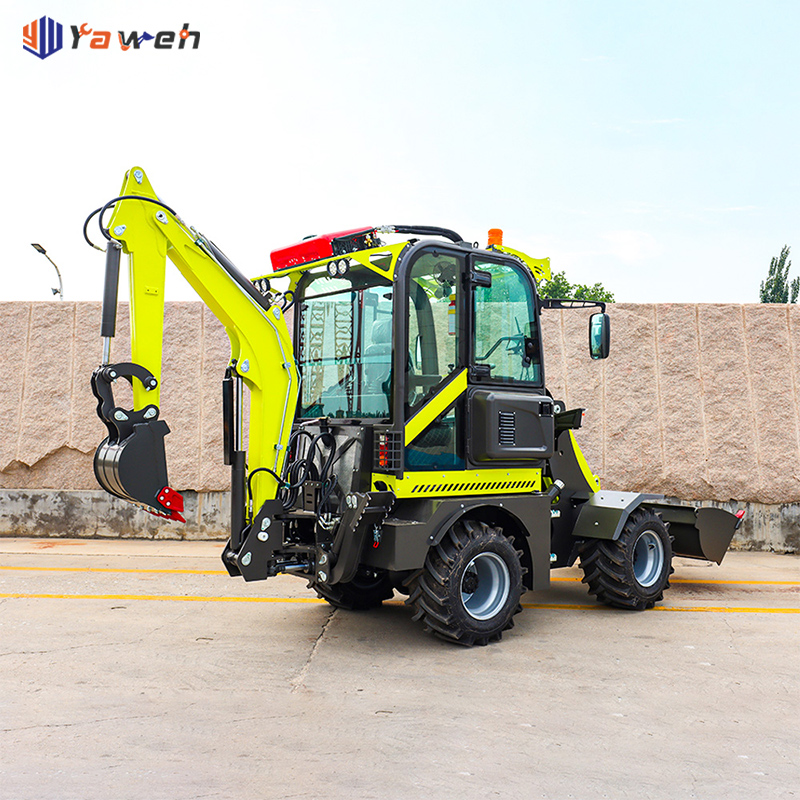

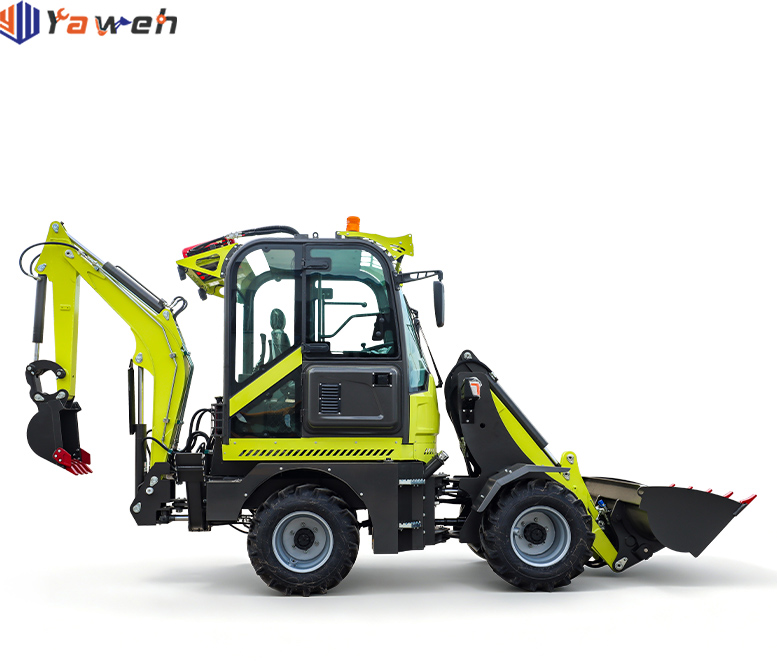

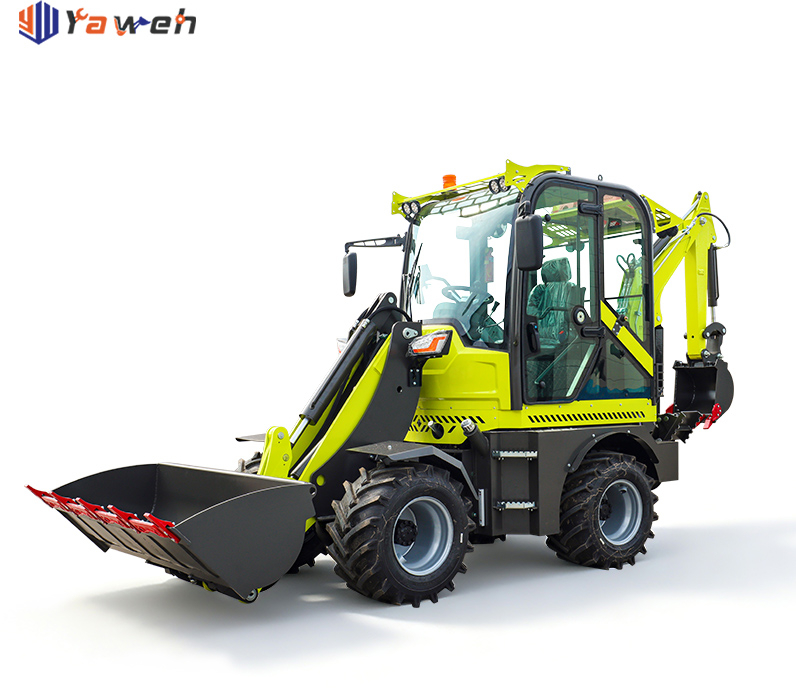

YAWEH15-20 is suitable for small-scale operation environments such as farms, gardens, livestock farms, and construction sites. The main features of the machine are its compact size, flexible operation, and high efficiency. It can be customized according to actual needs. It can achieve various functions through quick-change devices, such as crushing, drilling, and snow removal, and is suitable for various engineering applications.
| Quantity: | |
|---|---|
| A wide-area anti- fall object protection netis installed on the top of the driver's cab,ensuring high safety. |
| The cab is well-arranged, spacious, dust-proof,noise-reducing and offers a high level ofcomfort. |
| The tires on both sides of the vehicle are of fully enclosedstructure. They prevent the dust and stones that are kicked upby the tires during movement, avoiding damage to the machinepaint and the corrosion of the chassis edges caused by impacts,thereby reducing the wear and tear of the vehicle body. |
| The outriggers of the excavator are equipped with safetyhydraulic locks. In case of a rupture of the oil pipe, thehydraulic cylinders will be locked to prevent the outriggers from moving. |
| The patented swivel support and boom base have been specially developed. They feature strong load-bearing capacity, smooth rotation, durability and stability, as well as tight sealing.The swivel radius can truly reach 180 degrees. |
| The shafts of the entire vehicle are made thicker to enhance the load-bearing capacity and resistance to deformation. They can withstand greater axial force, radial force and bending moment, reducing the risk of bending or fracture. |

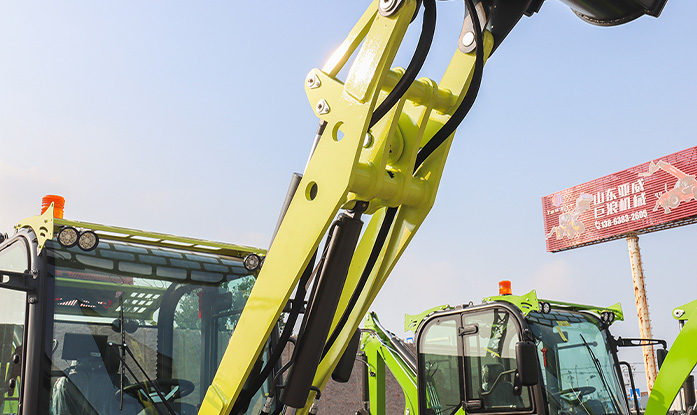

| The thickness of the "S" bend part of the mainboom has been increased, which can enhance its ability to withstand loads. |
YAWEH VS A Certain Factory Brand
A wide-area anti-fall object protection net is installed on the top of the driver's cab, ensuring high safety.

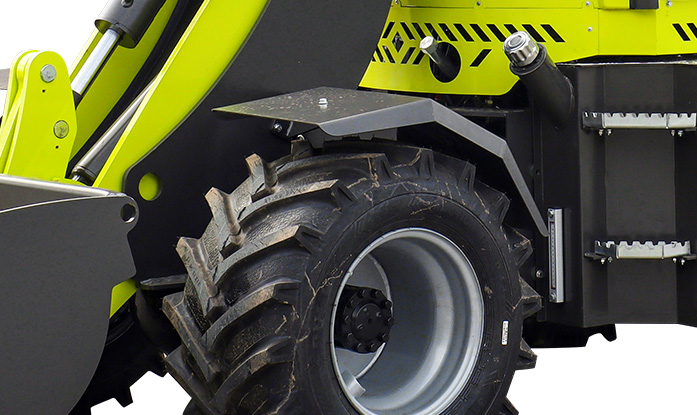

Full-coverage structures are adopted for tires on both sides of the vehicle body, preventing scratches to the paintwork and impact & corrosion on chassis edges to reduce body wear.
European-style front end with tapered middle section of the boom. No straight arm crossbeam obstructs the lower front of the cab, allowing unobstructed full visibility of the bucket, cutting edge and front wheels throughout operation.

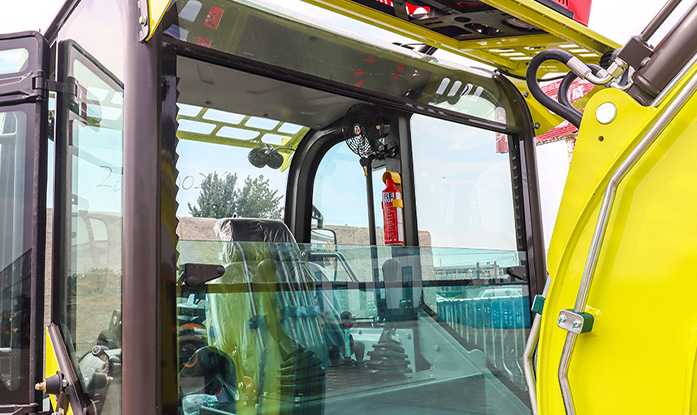

The rear cab window can be partially opened, facilitating observation of the working status of the rear digging assembly, improving air circulation inside the cabin, and quickly dissipating hot air and exhaust gas within the enclosed compartment.

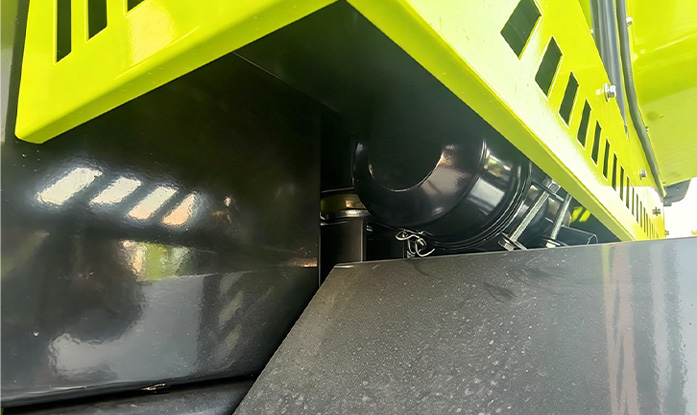

The air filter is located on the side of the vehicle body outside the cab, avoiding occupying the space within the cab and optimizing the internal layout. Compared to the interior of the cab, it is less likely to accumulate fine debris such as dust, lint, and food residues.

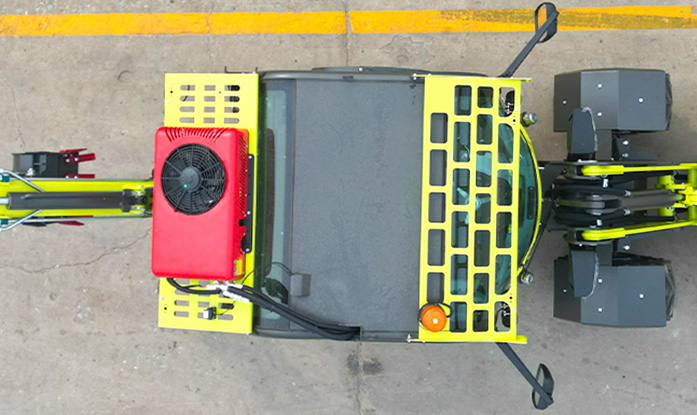

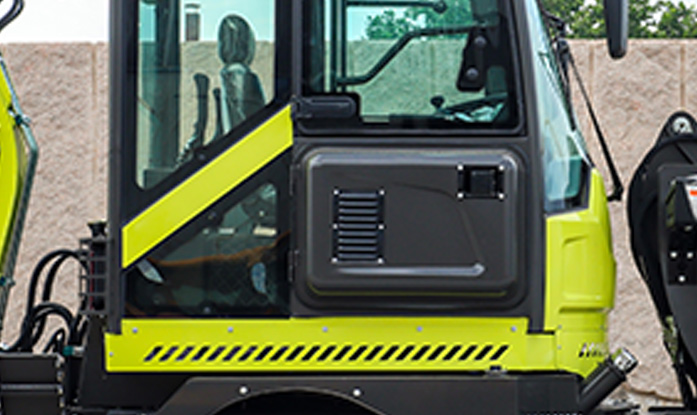

The heating fan and air conditioner are located in a small compartment on the right side of the driver's cabin. They do not occupy the space of the inside space, optimize the internal layout and have a good heating effect.

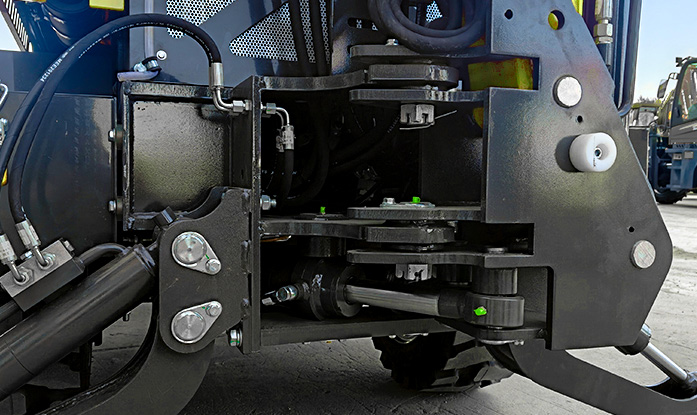

The patented swivel support and boom base have been specially developed. They feature strong load-bearing capacity, smooth rotation, durability and stability, as well as tight sealing. The swivel radius can truly reach 180 degrees.

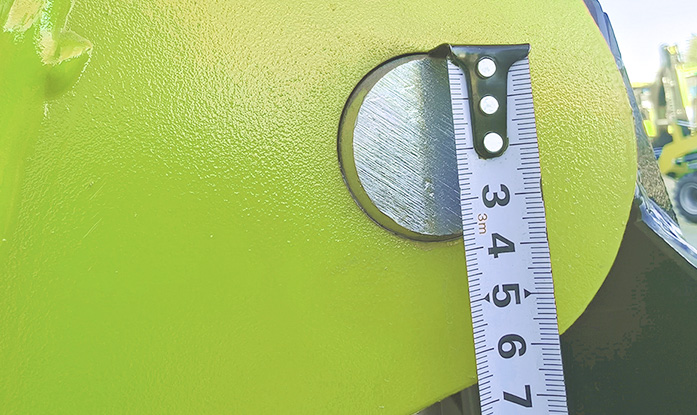

The shafts of the entire vehicle are made thicker to enhance the load-bearing capacity and resistance to deformation. They can withstand greater axial force, radial force and bending moment, reducing the risk of bending or fracture.

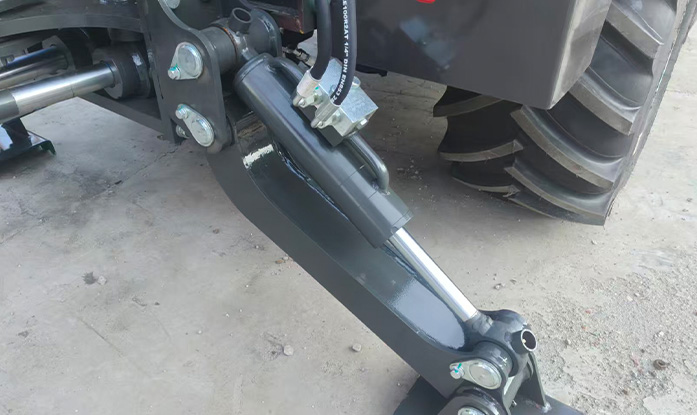

The outriggers of the excavator are equipped with safety hydraulic locks. In case of a rupture of the oil pipe, the hydraulic cylinders will be locked to prevent the outriggers from moving.

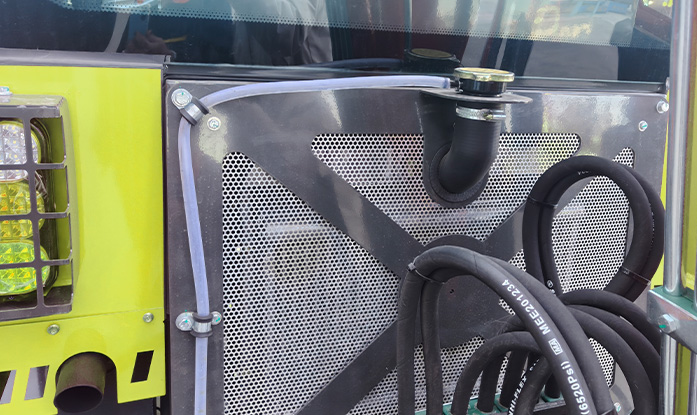

The water inlet is located on the rear side of the vehicle, making it easy to add water.

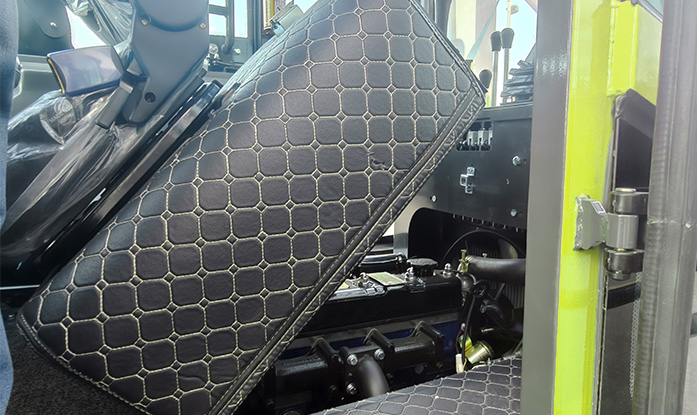

The seat can be fully flipped up, making it convenient for maintenance.

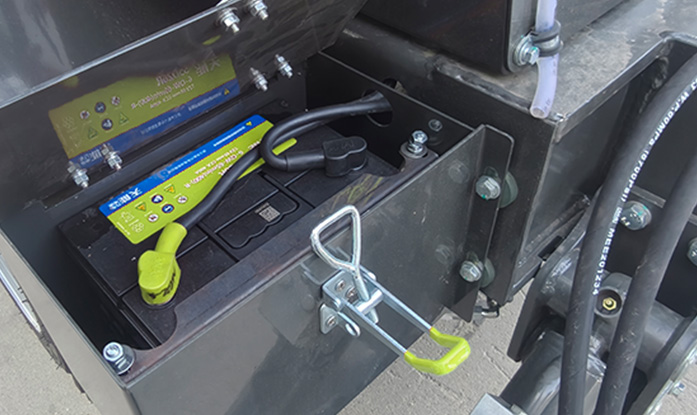

The battery is located inside the outer enclosure of the vehicle, making it more convenient and quicker for maintenance and servicing.
Outlines | |
Outline dimension (mm) | 5200*1600*2560 |
Wheel base (mm) | 1620 |
Track width (mm) | 1120 |
Min ground clearance (mm) | 220 |
Min turning radius (mm) | 4200 |
Performance | |
System pressure (Mpa) | 16 |
Machine weight (kg) | 2800 |
Max speed (km/h) | 25 |
Max climbing capacity (°) | 25 |
Min.turning radius (mm) | 2310 |
Excavator | |
Bucket capacity (m³) | 0.12 |
Bucket Width (mm) | 475 |
Boom Length (mm) | 1860 |
Max digging depth (mm) | 2350 |
Max digging radius (mm) | 3500 |
Max digging height (mm) | 3360 |
Unloading height (mm) | 2280 |
Angle of rotation of excavator (°) | 180 |
Loader | |
Max. lifting height (mm) | 3100 |
Max. unloading height (mm) | 2430 |
Max. load capacity (kg) | 1000 |
Machine width (mm) | 1600 |
Bucket capacity (m³) | 0.6 |
Engine | |
Model | Yunnei 490 |
Rated power (kw) | 37 |
Rated speed (r/min) | 2400 |
Cylinder No.-diameter | 4-90 |
Steering System | |
Type | Articulated fully hydraulic |
Steering angle (°) | 38 |
Axle | |
Type | 50 axle |
Tyre | |
Size | 12-16.5 |
Service brake | Gas cap oil clamp disc brake |
Parking brake | Hand break |
Oil | |
Diesel (L) | 47.5 |
Hydraulic oil (L) | 47.5 |
Other | |
Driving type | 4×4 |
Speed change type | Hydraulic variable speed driver |
| 1.Multi-functional integrated operation |
| It combines digging, loading, bulldozing, and leveling in one machine, effectively replacing multiple pieces of equipment to reduce investment and improve work efficiency. |
| 2.Perfect for narrow working spaces |
| With compact structure, small turning radius and flexible movement, it is widely used in yards, farms, alleys, basements and other confined areas where large machinery cannot enter. |
| 3.Wide application in multiple industries |
| Suitable for municipal engineering, landscaping, farm construction, rural infrastructure, road maintenance, breeding farms and small engineering projects. |
| 4.Compatible with various attachments |
| Can be equipped with breaker, auger, grapple, fork and other accessories to achieve drilling, crushing, handling, ditching and other diversified operations. |
| 5.Easy operation & high cost performance |
| Simple to control, low fuel consumption, stable performance and convenient maintenance, making it an ideal choice for farmers, contractors and small construction teams. |
Q: What are the typical applications of a mini backhoe loader?
A: Ideal for narrow-space jobs: residential foundation digging, garden landscaping, farm irrigation, municipal pipe laying, road maintenance, material handling, and small construction projects. It performs both digging and loading in confined yards, alleys, and indoor renovations.
Q: Why is my mini backhoe loader slow or weak in operation?
A: Mainly caused by low hydraulic oil, clogged filter, worn hydraulic pump, or improper pressure. Also results from overloading, prolonged high-temperature operation, or contaminated oil. Regular filter replacement and oil level checks restore speed and power.
Q: Can a mini backhoe loader work on slopes or soft ground?
A: Yes, but with limits: safe slope ≤ 15°. Use outriggers and down blade for stability. Avoid sudden swinging or heavy digging uphill. For soft soil, reduce load and keep tracks wide to prevent sinking or tipping.
Q: How to prevent hydraulic leakage on a mini backhoe loader?
A: Avoid violent operation (prying, impact). Check hoses, seals, and connectors daily. Replace worn seals in time. Use recommended hydraulic oil. Keep the system clean; contamination damages seals and causes leakage.
Q: What’s the standard digging depth and loading capacity?
A: Most mini models: digging depth 1.8–2.8m; loading capacity 0.15–0.3m³; lifting capacity 500–1200kg. Sufficient for household, farm, and municipal jobs. Custom depth and attachments available for special projects.
