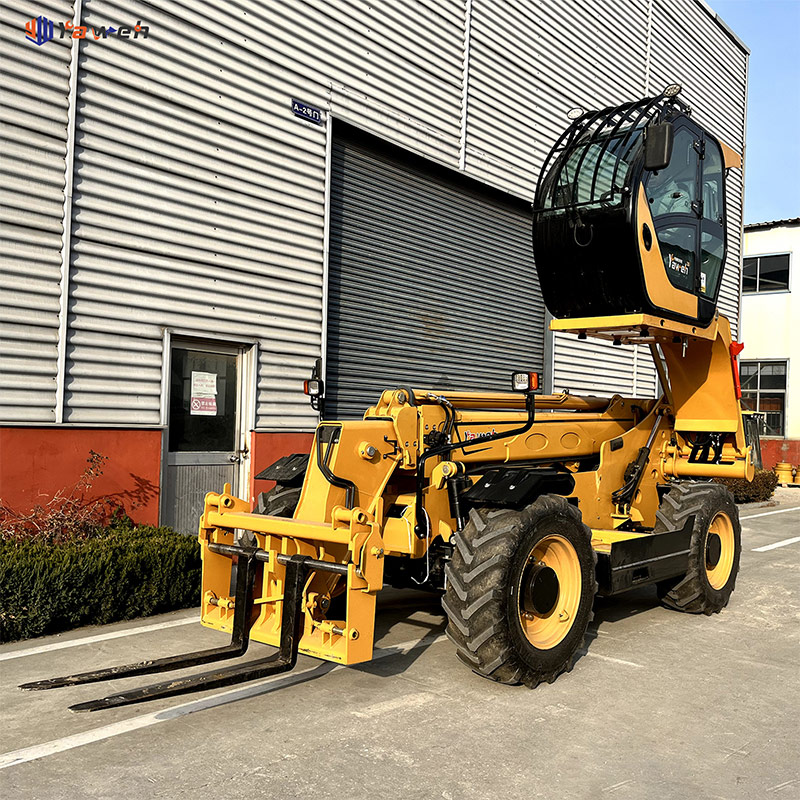

YAWEH telescopic forklifts enable you to achieve powerful lifting capabilities at the highest lifting height, and can overcome fences, steps, green belts, and other obstacles. Our telescopic forklifts prioritize operator safety and comfort, featuring advanced safety functions, intuitive control, and a design that emphasizes stability and precision. The robust and reliable structure of YAWEH telescopic forklifts, coupled with easily replaceable attachments, ensures that they can complete various tasks quickly, accurately, and reliably in construction, agriculture, municipal maintenance, ports and docks, warehouses, and logistics centers.
| Quantity: | |
|---|---|
As a premier manufacturer and global supplier of heavy-duty material handling equipment, we present this engineered 3.5-ton, 9.5-meter telescopic handler. Designed specifically to meet rigorous industrial procurement demands, this machine guarantees uncompromising stability, exceptional reach, and seamless fleet integration.
3,500 kg maximum load capacity for heavy material transit
9,500 mm peak lifting height for multi-story material placement
Engineered for bulk industrial applications and continuous daily operation
Step into a new tier of material handling where raw mechanical power meets exquisite precision. This 3.5-ton telescopic handler is forged with high-yield-strength steel, presenting a commanding, rugged silhouette that effortlessly absorbs the heavy impacts of daily industrial operations. When the turbocharged engine roars to life, it emits a steady, low-frequency hum that signals relentless torque, while the electro-proportional joysticks glide with butter-smooth resistance under the operator's fingertips. Every hydraulic movement is whisper-quiet and meticulously calibrated, eliminating the jarring mechanical clanks typical of lesser machinery.
The heavy-duty pneumatic tires grip the earth with aggressive, deep-cut tread patterns, ensuring that whether navigating deep mud, slick clay, or abrasive gravel, the chassis remains resolutely planted. Inside the pressurized, climate-controlled cabin, the subtle scent of premium industrial synthetics and the tactile feedback of the ergonomic controls create an environment where operators can execute millimeter-perfect placements without fatigue. This machine does not merely lift materials; it elevates the entire operational workflow, drastically cutting cycle times, minimizing material damage, and redefining site productivity for demanding industrial projects.
Engineered to resolve the most complex logistical bottlenecks, this machine integrates cutting-edge fluid dynamics with structural brilliance. It transforms sluggish material transfer processes into rapid, fluid operations, ensuring that fleet managers see an immediate reduction in project timelines.
Revolutionary Cycle Speeds: Advanced valve compensation technology dynamically adjusts hydraulic flow, boosting operational speed by 15% without sacrificing precision.
Parallel Prowess: The optimized system allows for simultaneous lifting, telescoping, and leveling, entirely eliminating the stuttering delays of sequential movements.
Customized Performance Modes: Intelligent flow mapping automatically triggers maximum pressure for digging or continuous steady flow for delicate platform work.
Smart Parking Solution: Seamless transitions between automatic and manual braking modes provide absolute security on steep gradients.
1. Revolutionar Speed
The load-sensitive post-valve compensation technology dynamically adjusts flow, ensuring ample supply based on load. This boosts operating speed by 15%, slashing cycles and enhancing overall efficiency.
2. Automatic adjustment
Adopting post-valve compensation technology, the system can automatically adjust to the optimal performance state for different load conditions, ensuring system stability and efficiency. Its intelligent design simplifies the operation process, significantly improving the equipment's reliability and extending its service life.
3. Innovative Strength & Durability
It skillfully integrates innovative concepts with mature technologies. Its fuselage is robust, and the telescopic boom is made of high-strength steel, ensuring excellent stability and a long service life. The specially designed sliding blocks, paired with self-lubricating materials and an efficient dust-proof function, can significantly enhance the overall performance of the machine even in harsh environments.
4. Parallel Prowess
This system has been optimized for multitasking and can smoothly perform lifting, telescoping, and leveling simultaneously. It maintains efficiency even under challenging conditions, minimizing waiting time.
5. Customized Performance
Custom speed and pressure modes can flexibly adapt to the requirements of various attachments. When switching to the bucket, the system automatically triggers the maximum flow and pressure settings, thereby significantly enhancing digging force and operation speed; when switching to the platform mode, it ensures stable and continuous flow output to achieve precise fluid handling.
6. Rigorous Testing
Comprehensive load durability tests are conducted on key components to verify the quality and reliability throughout the entire product lifecycle, ensuring optimal performance for users.
7. Versatility
The equipment also supports quick replacement of different attachments such as buckets, forks, and platforms. Combined with corresponding professional operation modes, it instantly transforms into a reliable tool that meets various operational needs.
8. Smart Parking Solution
The telehandler achieves seamless integration of automatic and manual modes, greatly enhancing operational convenience—an advantage that is particularly prominent in complex environments.
Outlines | |
Outline dimension (mm) | 4990*2290*2490 |
Machine weight (kg) | 8900 |
Wheel base (mm) | 1870 |
Traud (mm) | 2750 |
Min ground clearance (mm) | 400 |
Min turning radius (mm) | 1870 |
Performance | |
Max.capacity (kg) | 3500 |
Max.lifting height (mm) | 9500 |
Max.external elongation (mm) | 6520 |
Unloading distance (mm) | 2430 |
Max. tipping load at top (kg) | 1600 |
Max. tipping load at extreme (kg) | 500 |
Turning radius (mm) | 3700 |
Engine | |
Model | Yuchai4102/WebaichWP4G |
Type | Turbo charge |
Rated power (kw) | 77/70 |
Rated speed (r/min) | 2400/2200 |
Max.speed | 28 |
Other | |
Axle | Carraro |
Gearbox | Carraro |
Brake type | Wet brake with differential lock |
Pump&valve | Danfoss |
Control | electro-proportional control |
Boom type | 3-stages telescopic boom |
Cab | upgraded cab with AC&reverse camera |
Drive type | 4-wheels drive&4-wheels steering |
1. Stone mining and processing base (core scenario)
Quarry yard: A site for open storage of large stone blocks.
Inside the stone processing factory: the raw material area and the semi-finished product area within the workshop.
Mine extraction site: A level area located not far from the quarrying point.
Port and logistics hub
2. Container terminal: used for stacking 20-foot and 40-foot containers (usually requiring specialized container lifting equipment).
Railway freight station: handling heavy steel materials and large mechanical components.
3. Heavy industry manufacturing base
Steel plant: Transfer of steel coils, billets, and steel plates.
Hydropower stations/wind power bases: handling huge hydro turbine components, wind turbine blades, or nacelles (requiring special tools).
Prefabricated parts factory: handling heavy concrete segments and prefabricated beams for bridges.
4. Large-scale warehousing and logistics centers
A warehouse specifically designated for storing heavy equipment, large transformers, and generator sets.
When evaluating heavy machinery for industrial procurement, operational limits dictate project feasibility. This telehandler is built to conquer high-altitude stacking and heavy-duty transit with absolute authority. The integration of a 3-stage telescopic boom crafted from high-yield steel ensures that even at maximum extension, structural deflection is virtually non-existent.
Massive Load Capability: Safely elevates up to 3,500 kg, making it ideal for palletized stone, steel coils, and heavy concrete segments.

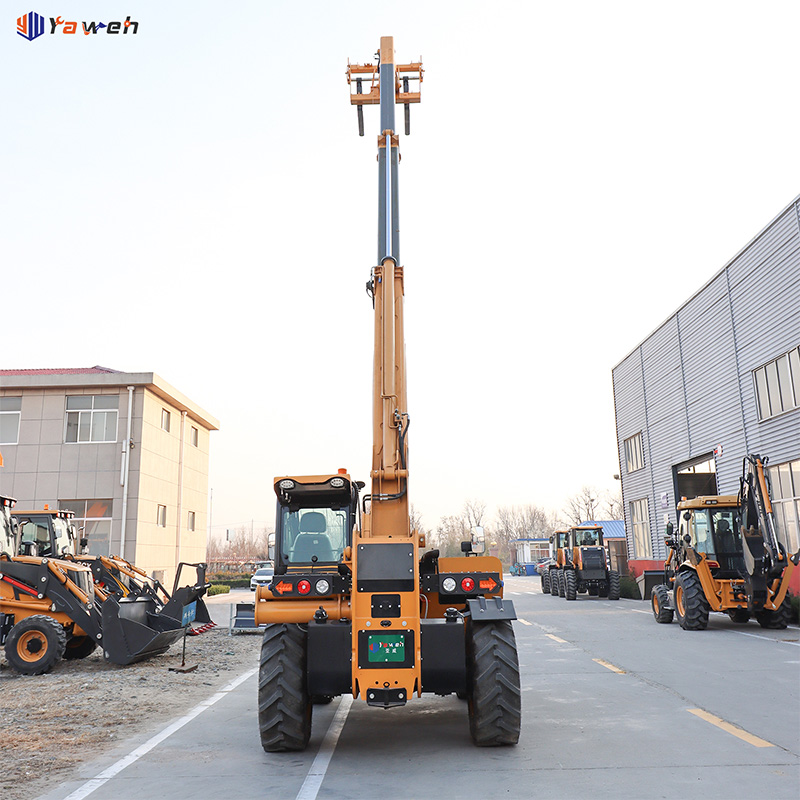

Exceptional Vertical Reach: The 9,500 mm peak lifting height allows operators to bypass scaffolding and deliver materials directly to upper-level construction floors.

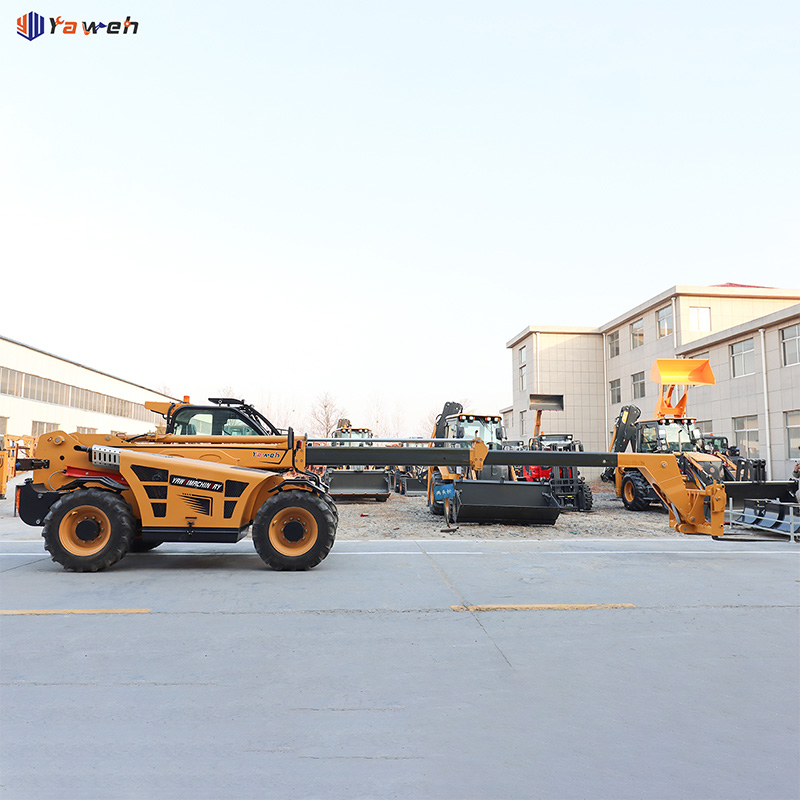

Impressive Forward Reach: Achieves a maximum external elongation of 6,520 mm, easily reaching across trenches, fences, and green belts.
Intelligent Leveling: Automatic compensation keeps forks perfectly horizontal during boom elevation, preventing load spillage and material damage.
The heartbeat of this equipment lies in its uncompromising powertrain, designed to minimize fuel consumption while maximizing torque output. By pairing industry-leading engines with elite European transmission components, we provide a solution that drastically lowers total cost of ownership while maintaining relentless performance.
Premium Engine Options: Choose between the turbocharged Yuchai 4102 or Weichai WP4G, both delivering exceptional torque at low RPMs for heavy pushing and lifting.
World-Class Transmission: Equipped with a Carraro gearbox and axle setup, ensuring seamless power delivery and eliminating gear-shift shock.
Advanced Fluid Control: Danfoss pumps and valves utilize load-sensitive post-valve compensation, providing exact hydraulic power only when needed, significantly reducing thermal waste.
Electro-Proportional Precision: Translates minute operator joystick inputs into exact boom movements, crucial for placing fragile or hazardous materials.
Industrial sites are rarely paved or spacious. This telehandler thrives in confined, chaotic environments where standard forklifts falter. Its compact chassis and advanced steering geometry allow it to dance around obstacles, while its rugged drivetrain conquers the most unforgiving topographies.
Extreme Ground Clearance: A massive 400 mm clearance ensures the undercarriage remains protected from rocks, debris, and deep ruts.
Tri-Mode Steering System: Features 4-wheel steering for tight corners, front-wheel steering for road travel, and crab steering for precise lateral positioning alongside walls.
Unstoppable Traction: 4-wheel drive combined with wet brakes and a differential lock guarantees forward momentum in deep mud and loose gravel.
Ultra-Tight Turning: An astonishingly short turning radius of 1,870 mm allows operations in highly restricted warehouse aisles and congested urban sites.
High-Speed Transit: Capable of reaching 28 km/h, minimizing travel time between different zones of a sprawling industrial complex.
In high-stakes industrial environments, operator visibility is synonymous with site safety. We have engineered the cabin and chassis to eliminate dangerous blind spots, protecting both your personnel and your valuable cargo. Every structural element is designed to exceed international safety mandates.

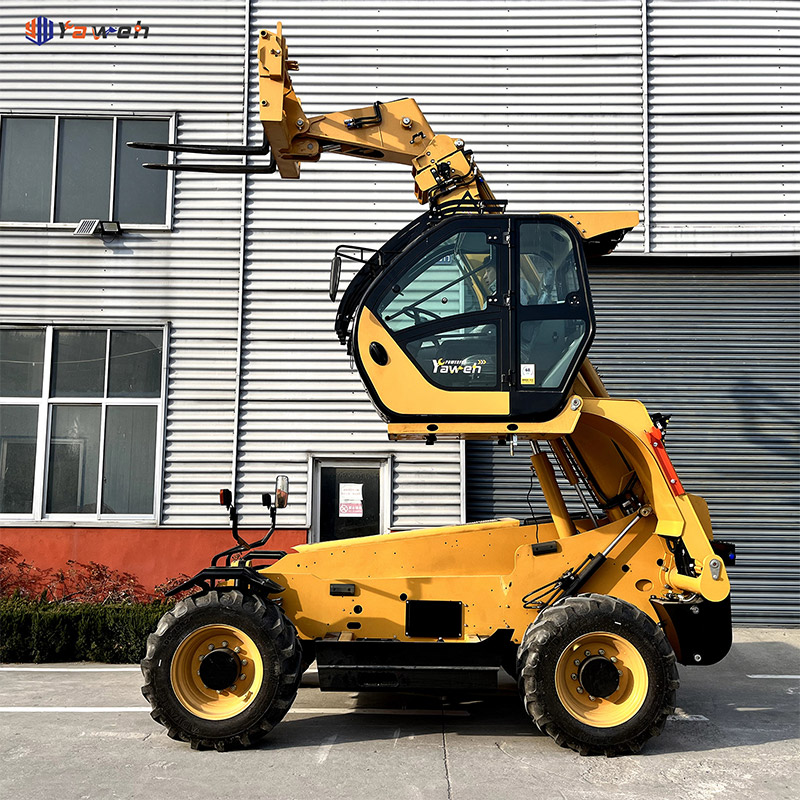

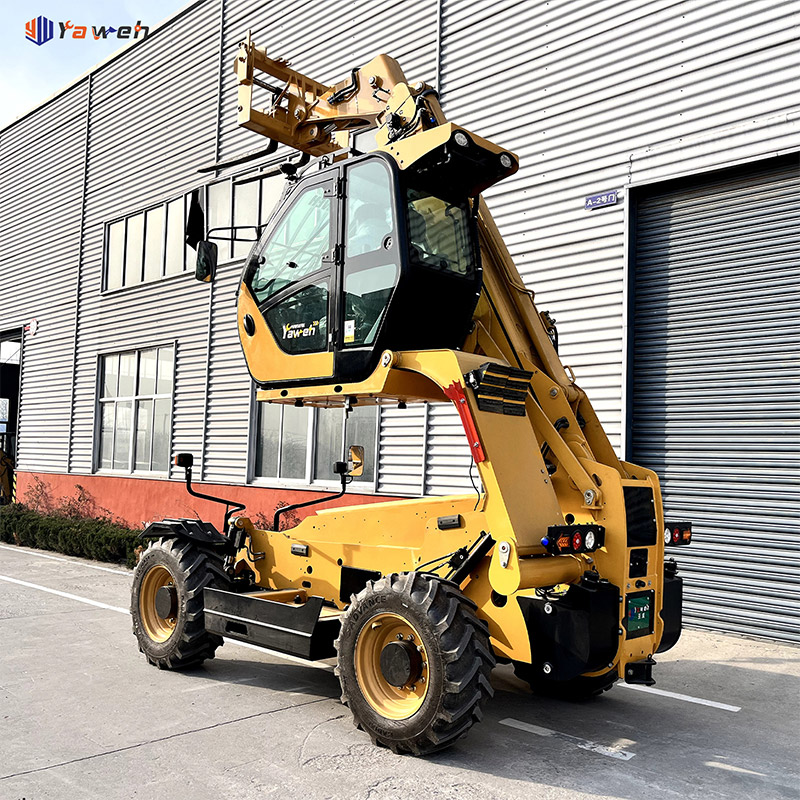

Panoramic Command Center: The asymmetrical cabin design and sloped engine hood provide an unobstructed 360-degree view of the fork tips and surrounding terrain.
Advanced Camera Systems: A high-definition reverse camera feeds directly into the digital dash, eliminating rearward guesswork during tight maneuvers.
Structural Protection: The upgraded cab features reinforced ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) to shield operators from site hazards.
Fail-Safe Braking: Enclosed wet brakes offer fade-free stopping power, immune to the water, dust, and mud that compromise standard disc brakes.
An exhausted operator is a liability. By prioritizing human-centric design, this telehandler ensures that operators remain alert, comfortable, and highly productive throughout extended shifts. The cabin isolates the driver from the harsh realities of the construction site, creating a focused working environment.
Climate-Controlled Environment: The upgraded AC system maintains a stable, comfortable temperature regardless of blistering summer heat or freezing winter winds.
Vibration Isolation: A premium suspension seat and advanced boom dampening systems absorb chassis shocks, protecting the operator's spine during rough terrain transit.
Intuitive Control Layout: The electro-proportional joystick is ergonomically positioned to follow the natural resting angle of the arm, reducing wrist strain.
Real-Time Diagnostics: A glare-free digital display provides instant readouts on load weight, boom angle, and engine vitals, keeping the operator fully informed.
Maximizing the return on your heavy equipment investment requires adaptability. This machine is not just a telehandler; it is a multi-purpose industrial tool carrier. With rapid-swap capabilities, it seamlessly transitions between entirely different operational roles in a matter of minutes.
Rapid Tool Swapping: A hydraulic quick-hitch system allows operators to change attachments without leaving the safety of the cabin.
Auxiliary Hydraulic Power: Pre-installed hydraulic and electrical lines run directly to the boom tip, ready to power complex attachments.
Diverse Application Range: Instantly converts from a heavy material fork to a high-capacity bucket, a sweeping brush, a timber grapple, or a secure aerial work platform.
Automated Mode Switching: The onboard computer automatically adjusts hydraulic pressure curves based on the connected attachment for optimized performance.
Equipment downtime directly erodes profitability. We engineered this telehandler to keep maintenance out of the workshop and on the site. By utilizing self-lubricating materials and centralizing service points, daily checks take minutes, ensuring the machine spends its life working, not waiting for repairs.
Accessible Engine Bay: The wide-opening side hood exposes all daily fluid checks, filters, and belts at ground level, requiring no special tools or ladders.
Wear-Resistant Boom: Specially designed self-lubricating sliding blocks inside the telescopic boom drastically reduce friction and eliminate the need for constant greasing.
Severe-Duty Dust Protection: High-grade seals on all hydraulic cylinders prevent abrasive dust and moisture from contaminating the fluid lines.
Extended Component Life: Rigorous full-lifecycle load testing guarantees that pins, bushings, and chassis welds withstand years of brutal industrial abuse.
Q: What exactly is it? What are its core functions?
A: It is a multifunctional equipment that combines the all-terrain forklift's maneuverability with the crane's lifting and extending capabilities. Its core function lies in the significant horizontal extension and retraction of its mast or forks, enabling it to overcome obstacles or precisely deliver materials to locations that are difficult to reach directly.
Q: What are the main application scenarios?
A: It is widely used in situations where long-distance, high-altitude, or obstacle-crossing handling is required. Typical scenarios include construction sites (delivering building materials to upper floors), warehousing and logistics (loading and unloading high-stacked containers), agriculture (straw bundling and stacking), and industrial maintenance (installing equipment).
Q: What are its advantages compared to ordinary forklifts and truck cranes?
A: Compared to ordinary forklifts, it boasts stronger terrain adaptability and a wider operational range; compared to truck cranes, it can simultaneously complete the full set of actions including "traveling, positioning, lifting, and placing", and can handle palletized goods, offering higher integration and handling efficiency.
Q: What key parameters should I pay attention to when making a purchase?
A: Special attention should be paid to the rated load, maximum lifting height, maximum reach, and chassis drive type (such as four-wheel drive). It is imperative to ascertain the remaining load capacity required for the equipment to operate safely at the desired maximum height and reach.
Q: What attachments can it be equipped with to expand its functions?
A: Through the quick-change device, dozens of attachments such as buckets, forks, platforms, grippers, sweepers, and augers can be equipped. This allows it to transform into an aerial work platform, a light loader, or a drilling machine, achieving multi-purpose functionality and greatly enhancing equipment utilization and investment returns.
Q: How does the load-sensitive hydraulic system improve daily operational efficiency?
A: The Danfoss load-sensitive post-valve compensation system dynamically measures the exact hydraulic pressure required for a specific load. It only delivers the necessary flow, which increases lifting speed by 15%, eliminates hydraulic stalling, and significantly reduces fuel consumption during repetitive stacking tasks.
Q: What specific terrain conditions can the tri-mode steering system handle?
A: The four-wheel steering mode allows for incredibly tight turns (1,870 mm radius) in cramped warehouses. The front-wheel mode provides stability for high-speed (28 km/h) road transit. The crab steering mode allows the machine to move diagonally, which is essential for precisely aligning loads against walls or scaffolding without needing to reverse and reposition.
Q: Is it complicated to switch between different attachments on the job site?
A: Not at all. The machine features an integrated hydraulic quick-change device. Operators can detach a set of forks and lock into a bucket or work platform in under two minutes without manual heavy lifting, instantly transforming the machine's utility.
Q: How does the equipment ensure stability when lifting the maximum 3.5-ton load to extreme heights?
A: Stability is achieved through a combination of the ultra-wide 2,750 mm tread, a low center of gravity, and a heavy 8,900 kg machine weight. Furthermore, the 3-stage boom is constructed from high-strength steel that resists torsional twisting, ensuring the load remains perfectly balanced even at the 9.5-meter peak.
Q: What measures are in place to reduce maintenance downtime?
A: We have centralized all daily grease points and fluid checks to easily accessible ground-level locations. The telescopic boom utilizes advanced self-lubricating wear pads that require minimal intervention, and the enclosed wet disc brakes are completely sealed from environmental contaminants, rendering them virtually maintenance-free.
