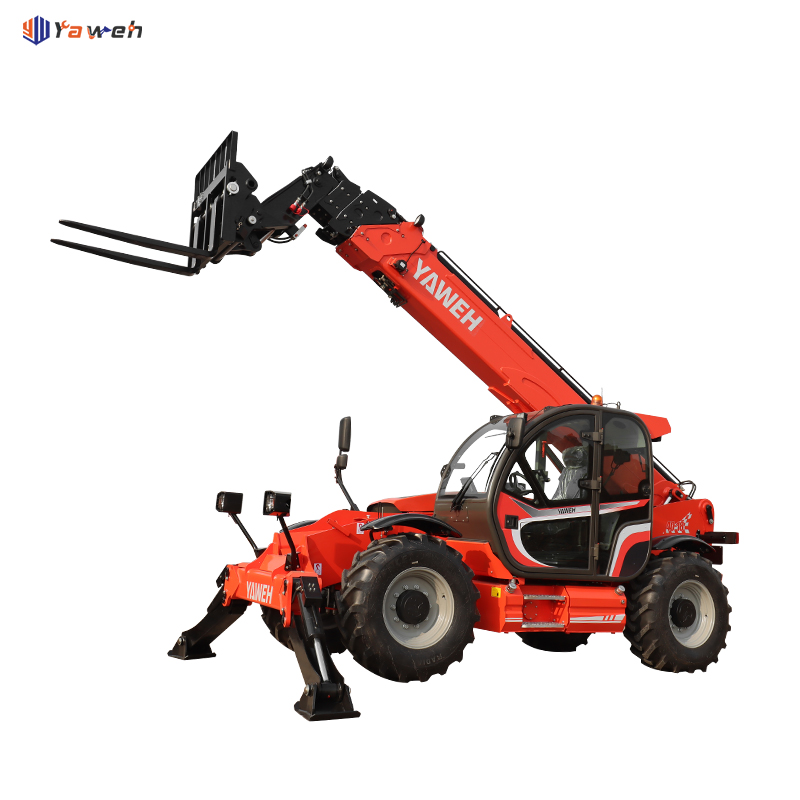

YAWEH telehandlers empower you with strong lifting capabilities even at the highest lifting height, while easily overcoming obstacles like fences, steps, green belts, and more. Our telescopic telehandler forklifts put operator safety and comfort first, boasting advanced safety functions, intuitive controls, and a design that highlights stability and precision.
Featuring a robust and reliable structure, YAWEH telehandlers come with easily replaceable attachments—this ensures our telehandler forklifts can finish various tasks quickly, accurately, and dependably in fields such as construction, agriculture, municipal maintenance, ports and docks, warehouses, and logistics centers.
| Quantity: | |
|---|---|
| 1.ltalian Carraro drive axle |
| The Carraro axles equipped on the machine feature load sensors, which ensure precise control and excellent stability. The transmission system of Yaweh telescopic boom forklifts demonstrates outstanding performance in high-speed operation, high-temperature environments, and automatic cooling. Leveraging its sophisticated technology, Carraro delivers greater reliability even under extreme weather conditions. Additionally, it provides global support services, greatly facilitating the maintenance of the equipment. |
| 2.The telescopic arm is sturdy and durable |

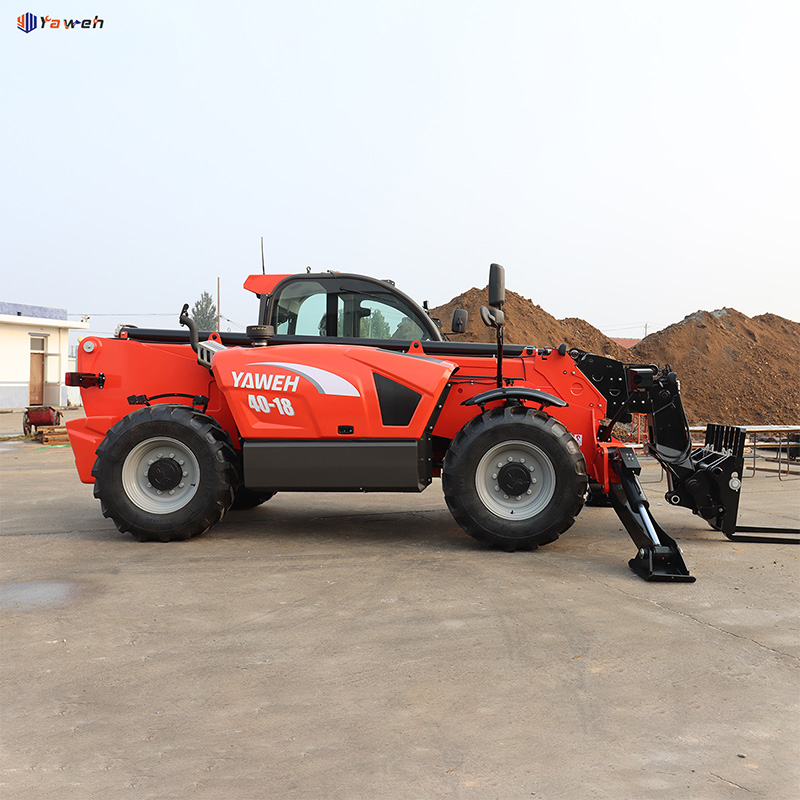

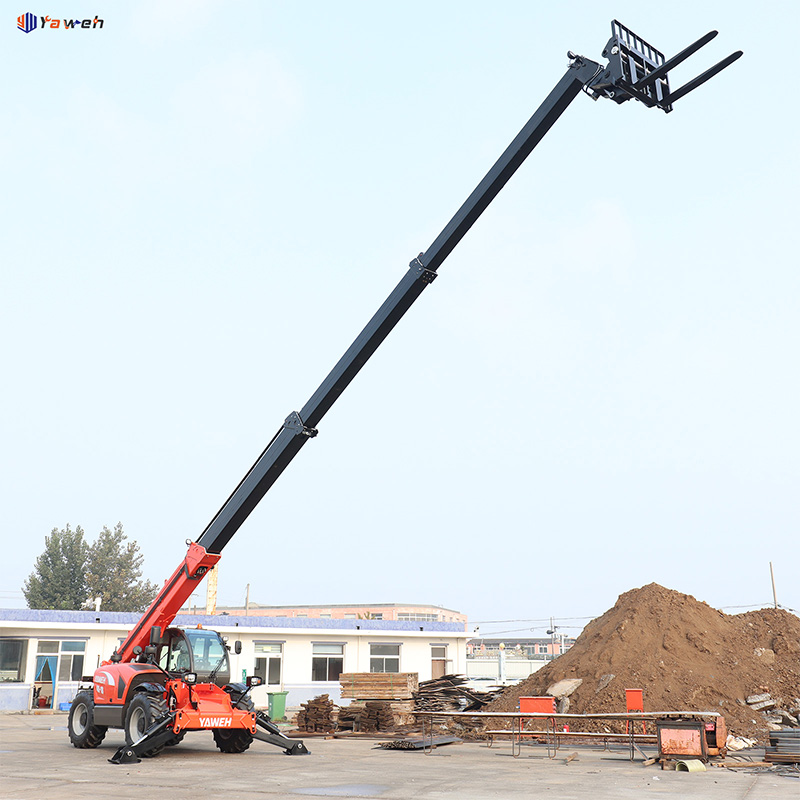

| Yaweh telescopic boom forklift is equipped with a 4-section telescopic boom (model 40-18), which can lift up to 18 meters. It features excellent extensibility and stability, and can precisely control various cargo-handling tasks through the telescopic boom. The boom system ensures stability and safety, providing outstanding control during heavy-load or high-speed operations. |
| 3.The body can be tilted or leveled |
| The body of a telescopic boom forklift is designed to be flexible and highly adaptable. It can easily tilt or level according to various operation requirements and scenarios, ensuring stability even in complex working environments while enhancing work efficiency and safety. |
| 4.ROPS & FOPS cab |
| The cab of Yaweh telescopic boom forklift is ergonomically designed and equipped with ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) to prevent roll-overs and falling objects, ensuring safety in harsh environments. It is also fitted with a negative-pressure air circulation system and an efficient heating and cooling air conditioner, which help reduce driver fatigue and ensure comfort. Additionally, the cab design provides a wide field of vision, minimizing visual obstacles and enhancing the driver's safety during operation. |

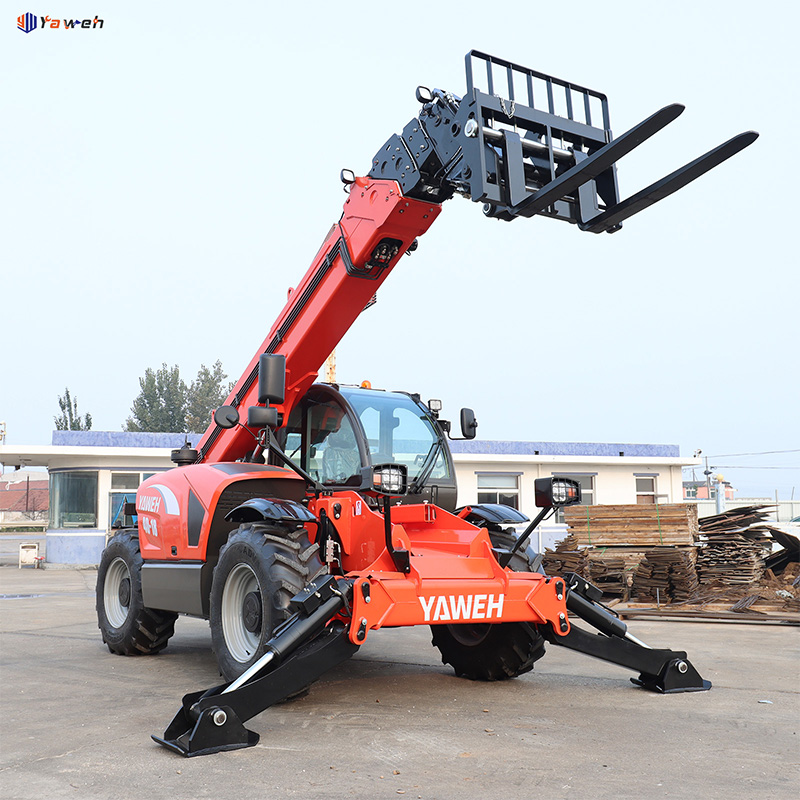

| 5.Hydraulic support legs |
| The hydraulic outriggers on a telescopic boom forklift provide stable support, enhance load-bearing capacity, and ensure balance, thereby improving performance. Their height adjustability and telescopic function allow adaptation to various terrains, boosting work efficiency and reducing risks while safeguarding the operator's safety. |
| 6.A variety of attachments are availab |
| The maximum rated load capacity of Yaweh telescopic boom forklift is 4 tons. It can be equipped with a variety of attachments to meet various complex working conditions. Examples of such attachments include clamps, grabs, forks, buckets, snow sweepers, hooks, and simple platforms These attachments are easy to replace, enabling the forklift to be widely used in logistics construction, and manufacturing industries, thereby improving work efficiency. |
Outlines | |
Outline dimension (mm) | 6410*2310*2610 |
Machine weight (kg) | 12000 |
Wheel base (mm) | 3070 |
Traud (mm) | 1900 |
Min ground clearance (mm) | 400 |
Min turning radius (mm) | 4010 |
Max.speed | 28 |
Fork dimensions (mm) | 1200*125*50 |
Frame left and right tilt angle | ±9° |
Engine | |
Model | QSB3.9-C110 |
Type | Turbo charge |
Rated power (kw) | 81 |
Rated speed (r/min) | 2200 |
Performance | |
Max.capacity (kg) | 4000 |
Max.lifting height (mm) | 17500 |
Max.external elongation (mm) | 1310 |
Max. tipping load at top (kg) | 2000 |
Max. tipping load at extreme (kg) | 400 |
Tire specification | 400/80-24 |
Diesel tank capacity (L) | 170 |
Hydraulic tank capacity (L) | 240 |
Other | |
Axle | Carraro |
Gearbox | Carraro |
Travel pump | Rexroth/71 displacement |
Ravel motor | Rexroth/107 displacement |
Tooling pump | Rexroth/71 displacement |
Working valve | Rexroth |
Balance valve | Rexroth |
| Configuration | |||
Fully control | Quick-change device | Hydrostatic travel | The forks are automatically leveled |
Four-wheel drive | Three steering modes | Four-section boom | Wet brake |
Reversing camera | Off-road patterned pneumatic tires | Electrically controlled proportional joystick | 10-inch smart screen |
Enclosed cab | Air conditioning cooling | Warm air system | Fan |
Telehandler is a multi-functional construction machinery with a telescopicboom and forklift loading function. With its flexible mobility, wideadaptability, and strong operational capability, it has important applications in multiple industries and fields.
①Industry and Manufacturing
②Construction and Engineering
③Agriculture and Forestry
④Warehousing and Logistics
⑤Energy and Electricity
⑥Municipal and Public Utilities
A:It is a multifunctional equipment that combines the all-terrain forklift's maneuverability and the crane's lifting and extending capabilities. Its core function lies in the fact that its mast or forks can extend and retract significantly in the horizontal direction, enabling it to cross obstacles or precisely deliver materials to locations that are difficult to reach directly.
A:It is widely used in situations where long-distance, high-altitude, or obstacle-crossing handling is required. Typical scenarios include construction sites (delivering building materials to upper floors), warehousing and logistics (loading and unloading high-stacked containers), agriculture (straw bale stacking), and industrial maintenance (equipment installation).
A:Compared to ordinary forklifts, it boasts stronger terrain adaptability and a wider operating range; compared to truck cranes, it can simultaneously complete the full set of actions including "traveling, positioning, lifting, and placing", and can handle palletized goods, offering higher integration and handling efficiency.
A:Special attention should be paid to the rated load, maximum lifting height, maximum reach, and chassis drive type (such as four-wheel drive). It is essential to ascertain the remaining load capacity required for the equipment to operate safely at the desired maximum height and reach.
A:Through the quick-change device, dozens of attachments such as buckets, forks, platforms, grippers, sweepers, and augers can be equipped. This allows it to transform into an aerial work platform, light loader, or drilling machine, achieving multi-purpose functionality and greatly enhancing equipment utilization and return on investment.
