The YW920 loader is a versatile piece of construction machinery widely employed across construction, mining, and agricultural sectors. Boasting formidable loading and transport capabilities, it swiftly accomplishes large-scale earthmoving tasks, thereby enhancing operational efficiency. By swapping out different attachments, the loader can perform multiple functions, adapting to diverse working environments. Modern loaders feature advanced control systems and ergonomic designs, enabling operators to master them with ease and reducing reliance on specialised skills.
| Quantity: | |
|---|---|
As a premier heavy equipment manufacturer and global supplier, we present this 1 Ton Compact Wheel Loader engineered for maximum operational uptime. Designed to handle demanding earthmoving, agricultural, and construction tasks, this machinery delivers exceptional returns on investment for large-scale fleet operators and project contractors.
Optimized for tight-quarter maneuverability and precise material handling.
Built with heavy-duty structural integrity for relentless daily use.
Engineered for fuel-efficient, high-torque performance across diverse terrains.
Step into the realm of elevated productivity with a compact wheel loader that redefines job site efficiency. When you engage the ignition, the deep, steady hum of the high-torque engine immediately communicates raw, dependable power ready to be unleashed. The heavy-duty manganese steel chassis, finished with a smooth, corrosion-resistant industrial powder coat, stands as a testament to its rugged craftsmanship. Operators will instantly notice the fluid, responsive feel of the hydraulic controls, translating subtle hand movements into massive breakout force without the jarring vibrations typical of lesser machinery. Every curve of the articulated frame and every reinforced weld is meticulously calculated to distribute stress seamlessly during aggressive load cycles. By integrating advanced torque conversion with an optimized center of gravity, this loader grips the terrain firmly, ensuring that your fleet moves materials faster, safer, and with significantly reduced fuel consumption. This is not merely an earthmoving tool; it is a meticulously crafted asset designed to scale your operational capacity and drive down long-term overhead.
Brand-name engine: High-horsepower branded engine delivering robust power, fuel efficiency, durability and low noise levels.
Engineering-grade tyres: Extended service life with deepened tread patterns for enhanced traction and wear resistance, tackling diverse terrains with superior grip.
Heavy-duty axles: Transmit force and torque with robust power, resist deformation under load, and maintain stable performance.
Reinforced hydraulic cylinders: Feature superior sealing, hydraulic lifting capability, powerful operation, high load-bearing capacity, rapid return, and extended service life.
Large-capacity bucket: Powered by a high-horsepower brand diesel engine, delivering formidable strength with low fuel consumption. Capable of sustained operation, it represents a fuel-saving solution.
Elevating your daily material handling operations requires equipment that anticipates the rigorous demands of continuous use. This compact loader is engineered with a focus on maximizing output while minimizing operator fatigue and mechanical downtime. The intelligent integration of high-flow hydraulics with a robust drivetrain ensures that every scoop, lift, and dump is executed with absolute precision.
Consistent, reliable power is the heartbeat of any heavy-duty operation. This loader is driven by a meticulously selected powertrain designed to deliver massive low-end torque, ensuring that you can push through dense aggregates or heavy soil without engine stalling. The seamless integration of the hydraulic torque converter provides smooth, shock-free directional changes, protecting the drivetrain from premature wear.
Equipment longevity directly impacts your bottom line. We have engineered this loader's skeleton using high-yield manganese steel, specifically chosen for its exceptional resistance to torsional stress and impact fatigue. The robotic precision welding creates flawless, uniform seams that eliminate the weak points typically found in manually welded frames, ensuring the machine maintains its structural integrity through years of punishing load cycles.
Time is the most valuable commodity on any project site. This compact loader utilizes a high-displacement hydraulic pump paired with premium multi-way valves to deliver explosive breakout force and rapid cycle times. The fluid dynamics have been optimized to ensure that lifting, dumping, and lowering happen in a fraction of the time, allowing your operators to move significantly more tonnage per shift.
An exhausted operator is an inefficient operator. We have meticulously designed the cabin to be a sanctuary of focus and control. Meeting rigorous ROPS and FOPS safety standards, the cab protects your personnel while offering a commanding, 360-degree panoramic view of the work zone. The tactile feedback of the controls and the climate-controlled environment keep operators sharp, safe, and highly productive throughout extended shifts.
Maximizing asset utilization is crucial for operational profitability. This compact loader is not just a bucket machine; it is a highly adaptable tool carrier designed to replace multiple specialized pieces of equipment. By utilizing the hydraulic quick hitch system, operators can seamlessly transition between entirely different tasks in under a minute without ever leaving the safety of the cabin, exponentially increasing the machine's daily value.
Complex maintenance routines drain labor hours and keep equipment out of the dirt. We have engineered this loader with a primary focus on reducing the Total Cost of Ownership through unparalleled service accessibility. The wide-opening engine hood exposes all critical daily checkpoints, allowing your maintenance crews to perform fluid checks, filter replacements, and visual inspections in a matter of minutes rather than hours.
Procuring heavy machinery is a significant investment that demands absolute peace of mind. Every single unit undergoes a grueling regimen of pre-delivery inspections and maximum-load stress tests to guarantee zero-defect performance upon arrival. Backed by internationally recognized manufacturing certifications, our commitment to your operational success extends far beyond the initial delivery, supported by a robust, globally responsive parts network.
Manufactured under strict ISO quality management systems and fully CE certified, ensuring compliance with the highest global safety and performance standards.
Comprehensive 1-year or 2000-hour core component warranty protects your capital investment against unforeseen mechanical anomalies.
Expedited global parts distribution network ensures that critical replacement components are dispatched immediately, minimizing costly fleet downtime.
Dedicated technical support teams provide remote diagnostics and step-by-step troubleshooting assistance to your on-site mechanics.
Each loader is subjected to rigorous dynamic load testing and hydraulic pressure verification before ever leaving the assembly line.
Large-angle side and rear opening hoods provide unobstructed access to the engine block, alternator, and cooling matrix.
Centralized lubrication banks bring hard-to-reach grease points to a single, accessible location, ensuring no pin or bushing is ever neglected.
Ground-level access to fuel and hydraulic fluid fills eliminates the need for technicians to climb on the machine, enhancing workshop safety.
Transparent fluid sight gauges allow for instant, walk-around visual inspections of hydraulic and coolant levels.
Quick-drain valves for engine oil and coolant prevent environmental spills and drastically speed up scheduled fluid changes.
Hydraulic quick hitch mechanism allows for instantaneous swapping of attachments, turning downtime into productive labor time.
Perfectly compatible with pallet forks for precise material handling and logistics support in lumber yards or warehouse exteriors.
Easily integrates with log grapples, augers, and sweepers, making it an indispensable asset for agricultural, landscaping, and municipal maintenance fleets.
Auxiliary hydraulic lines are pre-plumbed and easily accessible, providing immediate power to complex, motor-driven attachments like snow blowers or trenchers.
Optional hydraulic pilot joystick control translates minimal wrist movement into precise boom and bucket actions, virtually eliminating shoulder and arm fatigue.
Fully adjustable, suspension-mounted seating absorbs harsh job site vibrations, protecting the operator's lower back during long transport runs.
Integrated high-definition reverse camera eliminates rear blind spots, drastically reducing the risk of job site accidents.
High-capacity heating and air conditioning system maintains a comfortable ambient temperature, regardless of freezing winters or scorching summers.
Ergonomically positioned dashboard and intuitively laid-out switches allow for blind operation, keeping the operator's eyes fixed on the task ahead.
Accelerated three-item cycle time (lift, dump, lower) drastically increases the number of trucks loaded per hour.
High-pressure multi-way valves provide micro-precision control, allowing operators to feather the load for delicate placement tasks.
Oversized hydraulic oil cooler maintains optimal fluid viscosity, preventing performance degradation during continuous, high-intensity shifts.
Exceptional breakout force easily shatters compacted soil and handles dense, wet materials without hydraulic hesitation.
Premium-grade hydraulic hoses are routed internally wherever possible to eliminate snagging and abrasive wear against the chassis.
Reinforced, thickened boom arms resist twisting and bending when handling asymmetrical loads or breaking through frozen ground.
Heavy-duty articulated joint features oversized pins and hardened bushings, providing smooth steering while absorbing immense lateral forces.
Protective belly pans and shielded hydraulic lines prevent catastrophic damage from job site debris, rocks, and uneven terrain.
Multi-stage industrial paint process ensures a hardened, scratch-resistant surface that repels rust, chemical corrosion, and UV degradation.
Reinforced front axle housing withstands the immense downward pressure generated during maximum breakout force applications.
Available with internationally compliant EPA Tier 4 or Euro V emission standard engines, ensuring seamless integration into strictly regulated environmental zones.
Engineered for exceptional fuel economy, drastically reducing daily diesel consumption and lowering the overall cost of ownership for large fleets.
Advanced thermal management system prevents overheating during continuous, high-load operations in extreme summer climates.
High-torque output at low RPMs guarantees aggressive bucket penetration into compacted materials with minimal mechanical strain.
Unrestricted articulation angle allows for exceptional maneuverability within confined construction sites or narrow agricultural facilities.
Wide-base pneumatic tires provide superior traction and ground pressure distribution, preventing surface damage while maintaining absolute stability on muddy or uneven terrains.
Optimized bucket geometry ensures maximum material retention, reducing spillage and increasing the actual volume moved per cycle.
Acoustically insulated engine compartment significantly dampens operational noise, creating a safer and more focused environment for ground personnel.
Heavy-duty cylinder seals prevent fluid leakage and pressure drops, guaranteeing consistent lifting power even after thousands of hours of rigorous operation.
Strategically placed counterweights maintain a perfect center of gravity, eliminating the tipping risks associated with heavy, elevated loads.

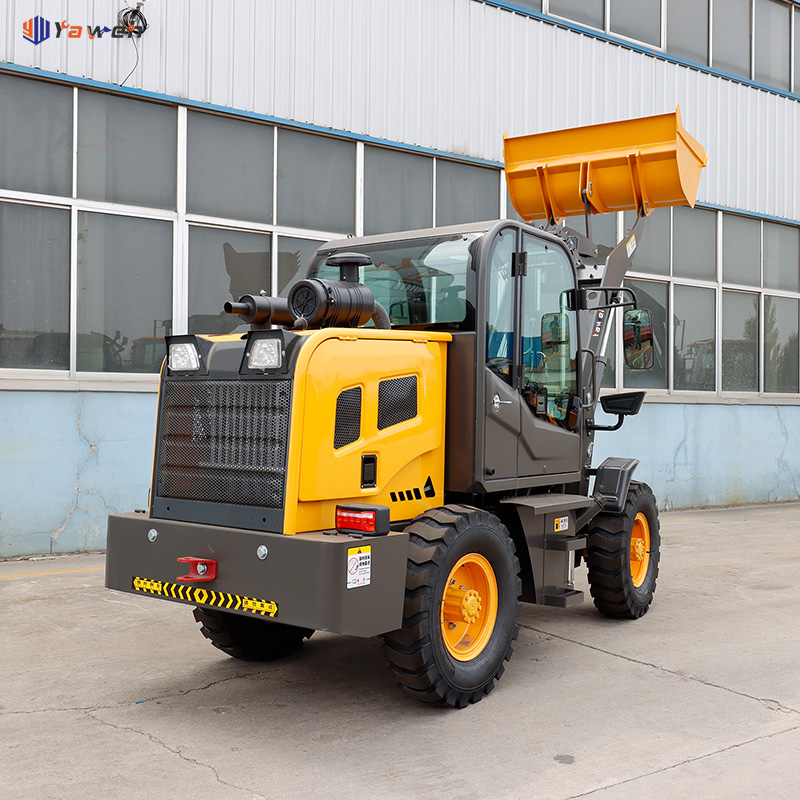

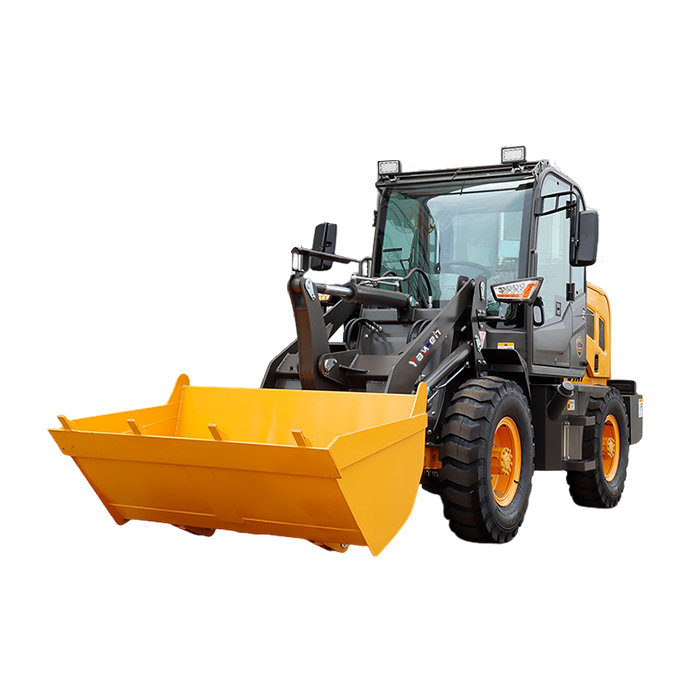

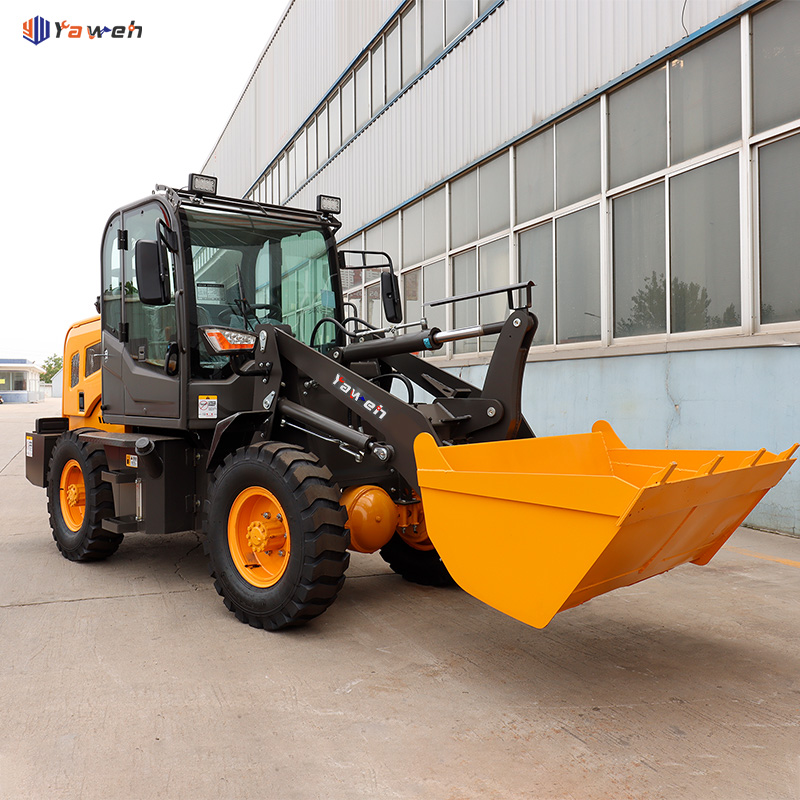

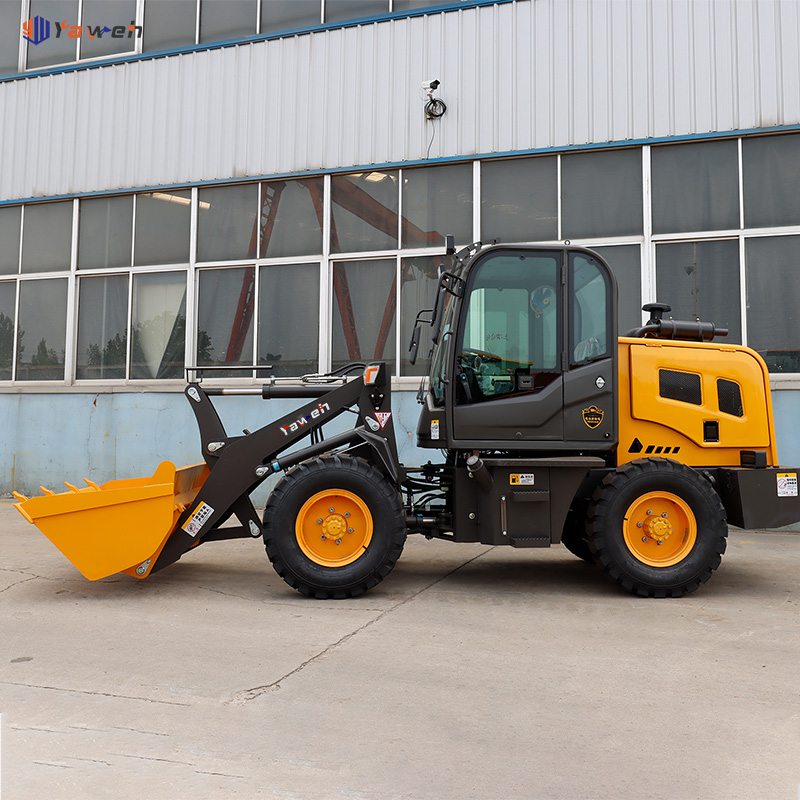

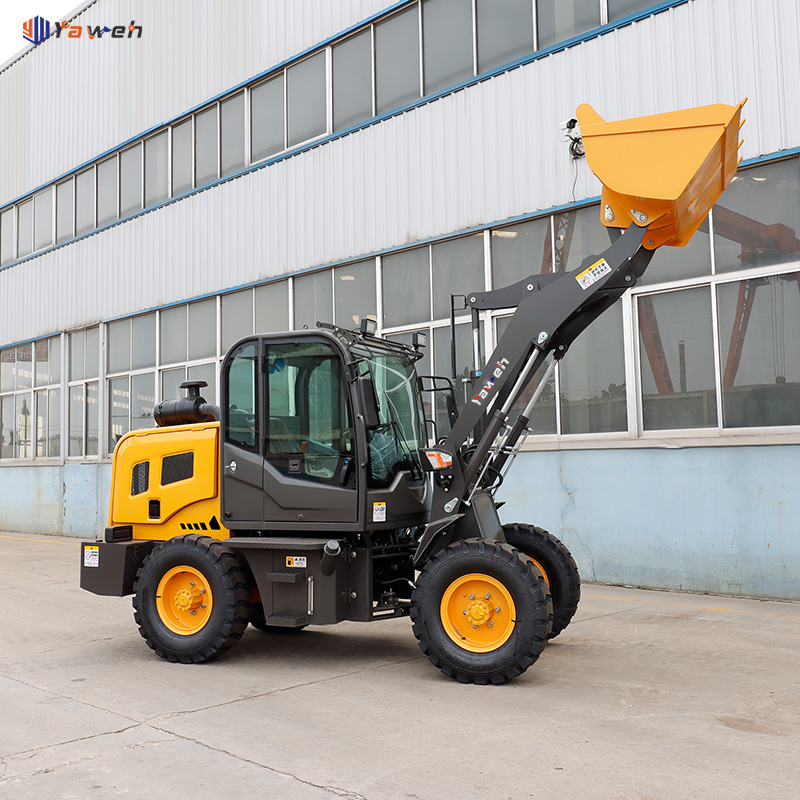

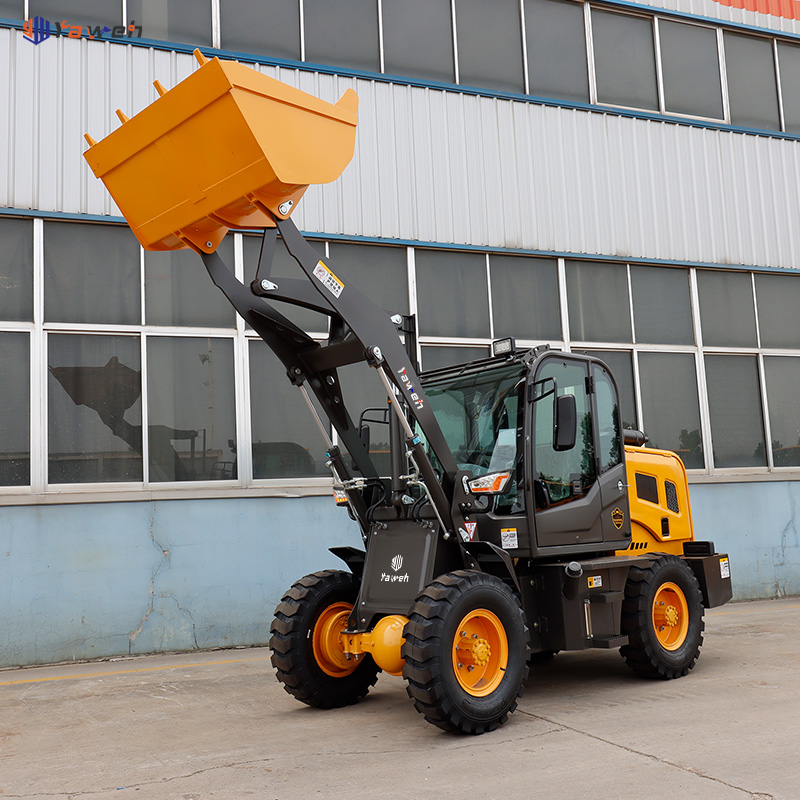

YW920 Bullito
Model | Calf 2.4m\920 |
Rated loading weight (kg) | 1000 |
Rated capacity (m³) | 0.3m³ |
Operating weight (kg) | 2150 |
Engine model | Xichai\Huadong\Yunnei 490 |
Rated power (kw) | 36.8kw\40kw\42kw |
Tyre | 1000-16 |
Unloading height (mm) | 2400 |
Unloading distance (mm) | 650 |
Overall dimension (mm) | 5000*1400*2200 |
YW920 Titanito
Model | Xiaojingang 2.8m\920 |
Rated loading weight (kg) | 1000 |
Rated capacity (m³) | 0.3m³ |
Operating weight (kg) | 2400 |
Engine model | Xichai\Huadong\Yunnei 490 |
Rated power (kw) | 36.8kw\40kw\42kw |
Tyre | 1000-16 |
Unloading height (mm) | 2800 |
Unloading distance (mm) | 650 |
Overall dimension (mm) | 5000*1600*2250 |
1. Construction sites
Including building construction, road and bridge building, hydraulic engineering projects, etc.
2. Mines and quarries
Open-cast coal mines, metal mines, sand and gravel yards, etc.
3. Farmland and agricultural bases
Farmland levelling, sugarcane/timber loading and unloading, grain warehouse handling.
4. Urban Infrastructure Maintenance
Environmental sanitation departments (winter snow clearance), port terminals, railway stations, and large freight yards.
5. Factory and Enterprise Premises
Cement plants, steelworks, chemical plants, and other industrial sites requiring substantial raw material handling.
Q: What is its primary purpose?
A: The compact loader is chiefly employed for loading, unloading, and short-distance handling of bulk materials such as sand, gravel, animal feed, and grain. Its core strengths lie in its agility and efficiency, making it ideal for confined spaces where materials are dispersed yet require frequent movement.
Q: What advantages does it offer over larger loaders?
A: Key benefits include its compact size, tight turning radius, and lower cost. They can readily access confined spaces in warehouses, greenhouses, courtyards, and other areas inaccessible to larger machinery. Their lower purchase and operational costs make them highly suitable for small-to-medium-sized projects or individual operators.
Q: Where are they specifically applicable?
A: They are particularly well-suited for small farms, ranches (for loading/unloading feed and clearing manure), building material stores, logistics warehouses, construction sites, and municipal sanitation departments. They serve as capable tools for handling bulk materials, clearing sites, and assisting with loading operations.
Q: What functions does it serve on farms?
A: Its versatility on farms enables rapid completion of tasks including feed distribution, grain loading, fertiliser transfer, livestock shed mucking-out, and snow/road clearance. This significantly reduces labour requirements and enhances daily operational efficiency.
Q: What type of maintenance schedule is required to keep the hydraulic system operating at peak efficiency?
A: To maintain optimal breakout force and rapid cycle times, we recommend inspecting hydraulic lines daily for abrasion. The hydraulic fluid and return filters should undergo their initial change at 500 hours to clear break-in particulates, followed by routine replacements every 1,000 to 2,000 hours depending on the dust and thermal load of your specific job site environment.
Q: Can the engine configuration be adapted to meet strict municipal emission regulations?
A: Absolutely. While the standard configuration offers robust power, we provide optional engine upgrades from premium brands that strictly adhere to EPA Tier 4 and Euro V emission standards. This ensures your fleet remains fully compliant when bidding on heavily regulated urban infrastructure or indoor material handling projects.
Q: How does the articulated steering system benefit operations in confined spaces?
A: The fully hydraulic articulated steering allows the front and rear halves of the chassis to pivot independently. This drastically reduces the turning radius compared to rigid-frame loaders, enabling operators to navigate tight agricultural barns, narrow construction corridors, and congested lumber yards without constantly reversing or repositioning.
Q: Is the quick hitch system compatible with aftermarket or existing attachments we already own?
A: The hydraulic quick hitch is engineered to a highly standardized geometry, making it universally compatible with a vast array of industry-standard attachments. As long as your existing forks, grapples, or sweepers utilize standard pin dimensions and spacing, they can be coupled securely in seconds, maximizing the utility of your current inventory.
Q: What measures are taken to protect the drivetrain during aggressive stockpiling or excavation?
A: The loader utilizes a heavy-duty hydraulic torque converter that acts as a fluid cushion between the engine and the transmission. When the bucket hits a dense, immovable object, the converter absorbs the kinetic shock, preventing mechanical shearing of the gears and axles, thereby significantly extending the lifespan of the entire drivetrain under harsh working conditions.
