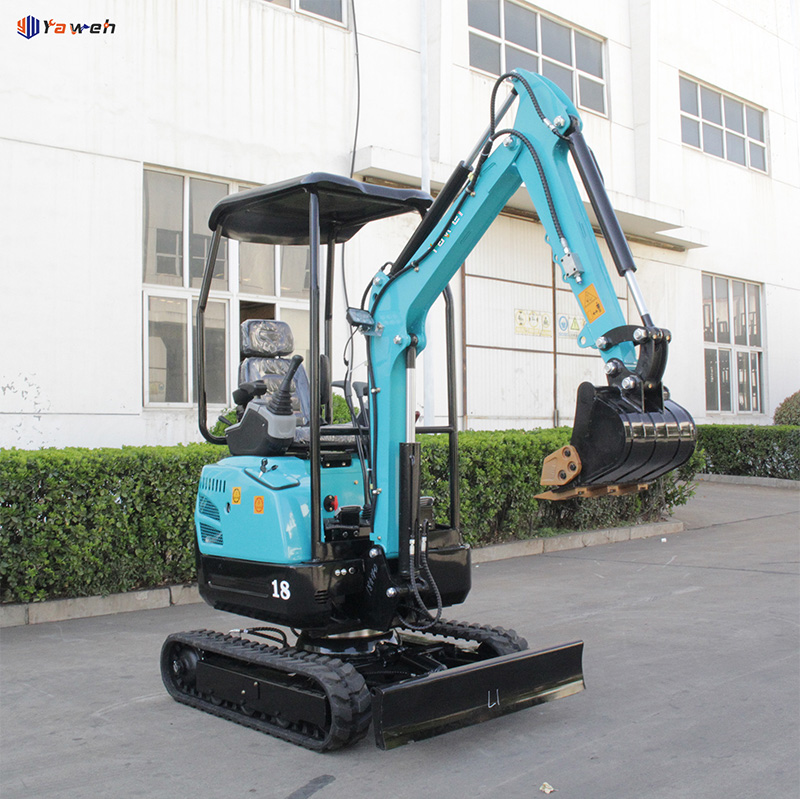

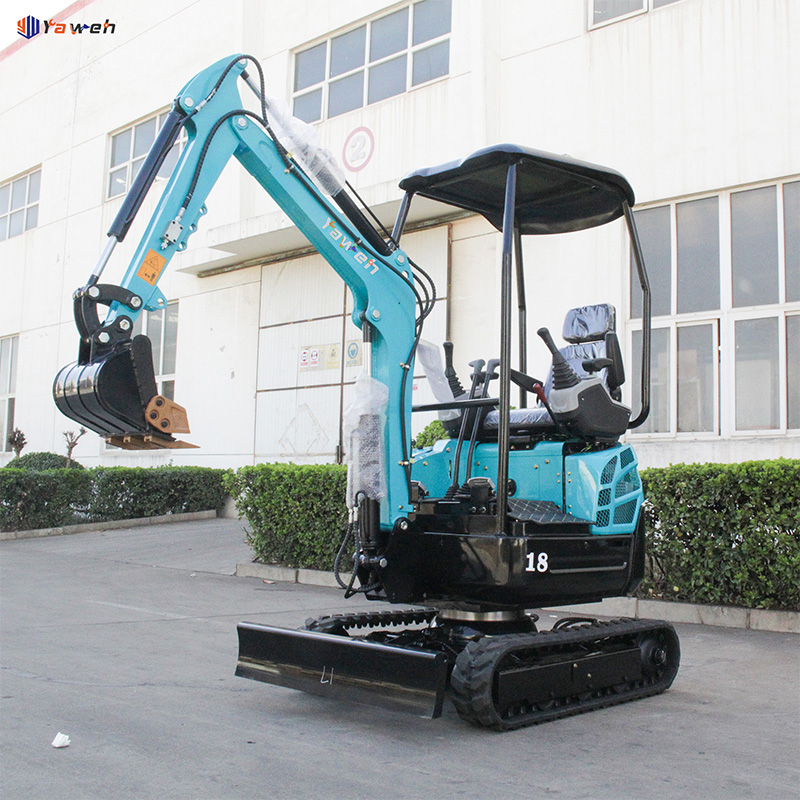

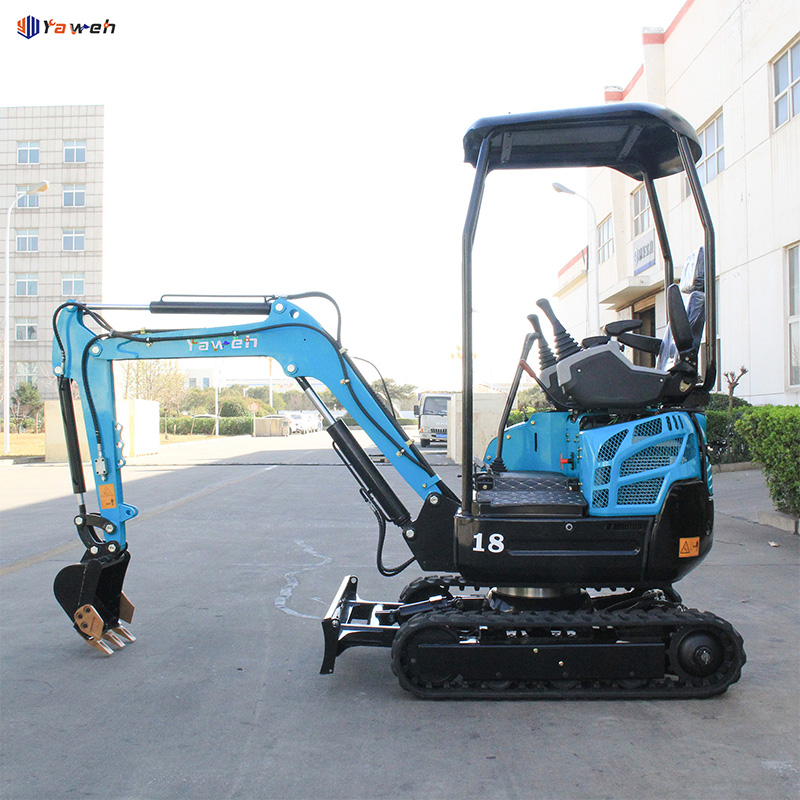

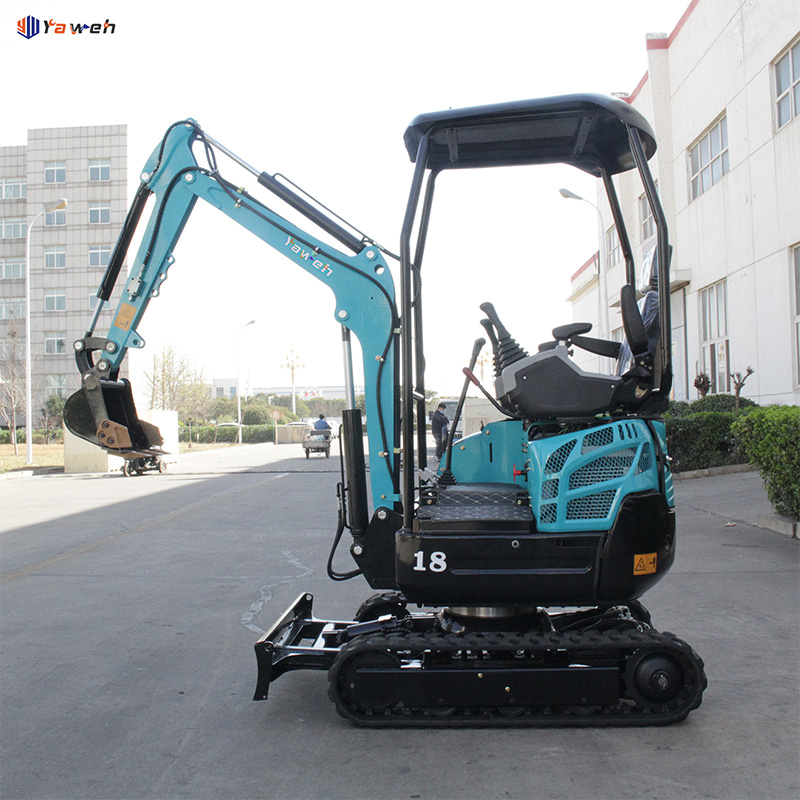

The YW18 mini excavator features a compact body and small turning radius, allowing flexible operation in narrow spaces such as indoors, yards and green belts. Lightweight for pickup transportation, it supports multiple attachments including bucket, hammer and auger. Ideal for earthwork, landscaping, pipe excavation and indoor demolition. Low fuel consumption, easy operation and maintenance, perfect for rental and small projects.
| Quantity: | |
|---|---|
As a premier manufacturer and direct supplier of heavy-duty construction equipment, we present the YW18 Mini Excavator. Engineered for precision and efficiency, this compact earthmoving machine delivers robust performance in confined spaces. Designed for commercial operators seeking reliability and low operational costs, it combines advanced electric power with premium hydraulic components.
Zero-emission electric drive system
Ultra-compact footprint for tight access
Premium imported hydraulic systems
High-efficiency multi-attachment compatibility

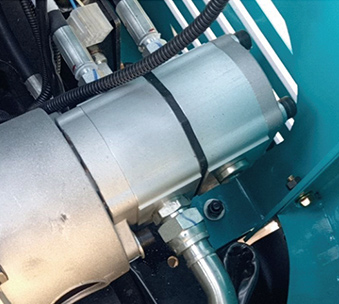

Dual pump load sensitivity, soft and powerful action, low engine temperature, energy-saving and fuel-efficient

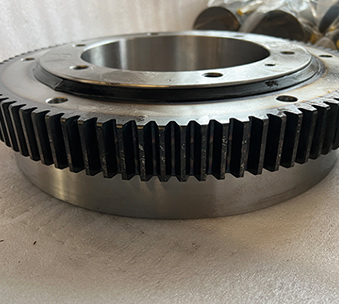

Double row bead rotating support, fast speed, high efficiency, more flexible, and stable

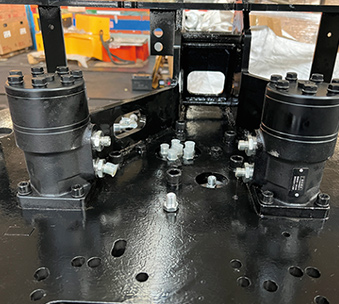

Double turn motor, powerful and long-lasting, gentle movement, comfortable and stable operation

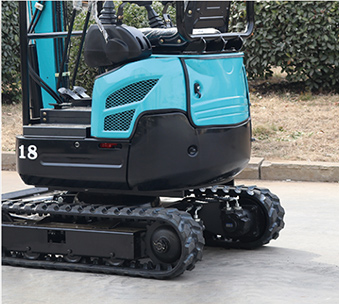

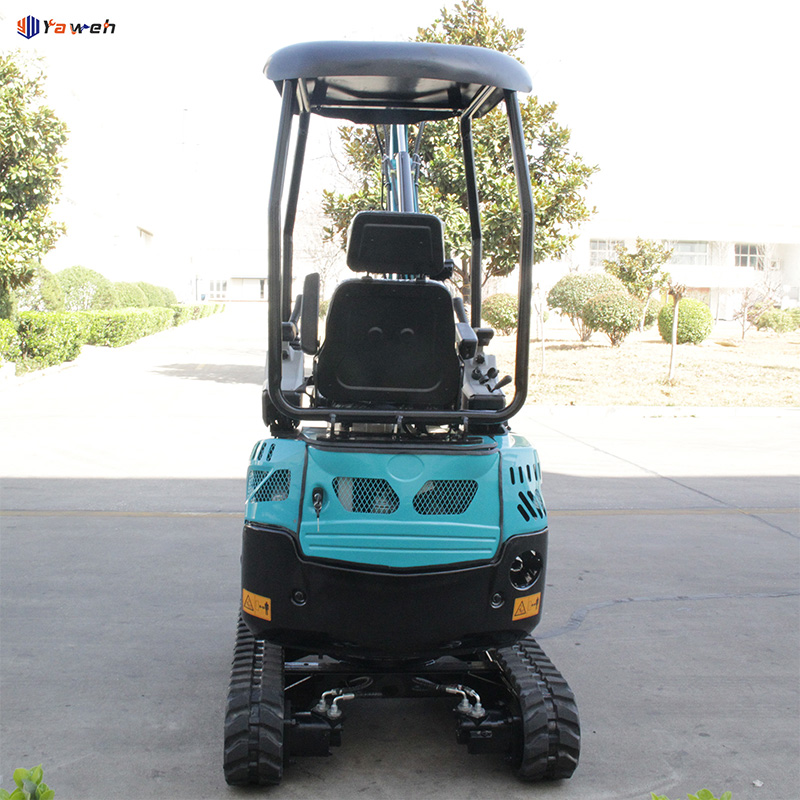

41 track lengths increase the grounding area for more stable walking. Tailless rotation, flexible and convenient

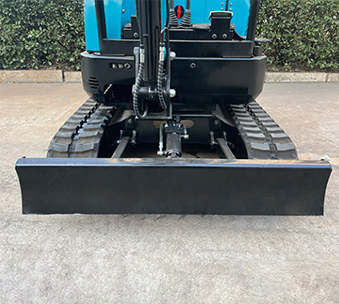

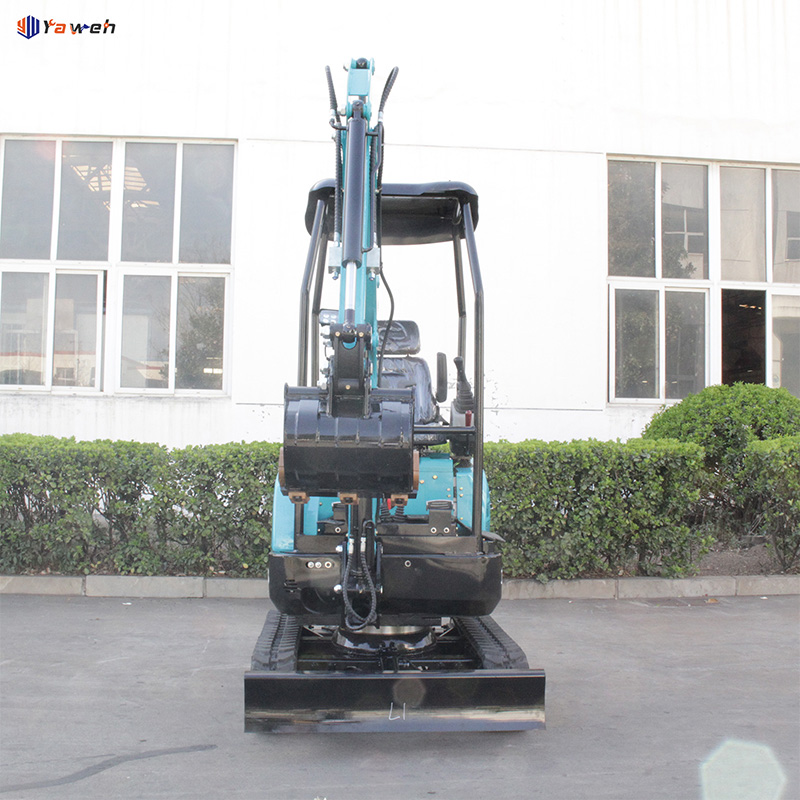

Bulldozer blade widened and thickened, durable and long-lasting

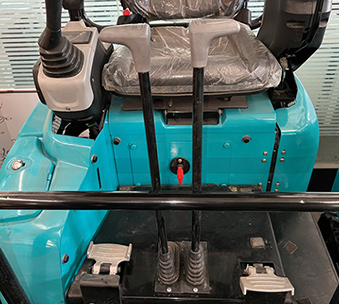

Operating leverage, simple and flexible, easy to operate
Elevate your operational capabilities with engineering that prioritizes efficiency, durability, and operator control. The YW18 is meticulously designed to resolve the most persistent challenges faced on modern job sites.
Exceptional Agility: The ultra-compact dimensions allow the machine to slip through standard doorways and navigate intricate garden layouts without damaging existing structures or flora.
Uncompromising Digging Power: Despite its small stature, it delivers a formidable 15KN of breakout force, slicing through hardpan and stubborn roots effortlessly.
Whisper-Quiet Operation: Emitting less than 55 decibels at a one-meter distance, it ensures compliance with the strictest urban noise ordinances, allowing for early morning or late-night operations in residential zones.
Rapid Deployment: Weighing just 1500kg, it can be seamlessly loaded onto a standard pickup truck or light utility trailer, drastically cutting down logistical delays between job sites.
Intuitive Control Interface: The ergonomic joysticks are mapped for instinctive movements, drastically reducing the training curve for new operators and minimizing hand fatigue during extended shifts.
Bucket Capacity | 0.025m³ |
Chassis Width | 1100mm |
Track Ground Contact Length | 1300mm |
Climbing Capacity | 40° |
Chassis Ground Clearance | 385mm |
Track Width | 180mm |
Overall Dimension | 2200*1100*2200mm |
Transport Length | 2200mm |
Excavator Height | 2200mm |
Battery Capacity | 300Ah |
Battery Voltage | 72V |
Theoretical Charging Time | 8H/4H/1H |
Noise Level at 1m | <55 dB |
Power Type | Lithium Iron Phosphate |
Motor Power | 6KW |
Power Consumption per Hour | 1 kWh/h |
Max. Digging Height | 2700mm |
Max. Unloading Height | 1900mm |
Max. Digging Depth | 1910mm |
Max. Digging Radius | 3280mm |
Swing Radius | 1636mm |
Digging Force | 15KN |
Operating Weight | 1500kg |
Configuration | Italy Imported Multi-way Valve |
Hydraulic Pump | Korea Imported Hydraulic Pump |
Pump System | Dual Pump Load Sensing |
A: This machine is specifically engineered for urban municipal construction, intricate landscaping, indoor demolition, orchard trenching, and any project where space is severely restricted and zero-emission operation is mandated.
A: Yes. With an ultra-narrow chassis width of just 1100mm and a zero tail swing design, it easily passes through standard commercial doorways and navigates tight basement corridors without causing structural damage.
A: The financial advantage is substantial. Consuming only 1 kWh per hour, the energy cost is a tiny fraction of what a comparable diesel engine would consume, drastically lowering your daily overhead and improving project margins.
A: The system is highly adaptable to your workflow. It supports a standard 8-hour overnight charge, a 4-hour rapid charge, and a 1-hour ultra-fast boost charge to keep the equipment operational during intense, multi-shift projects.
A: Absolutely. The machine features a standardized hydraulic interface that allows operators to swiftly transition between buckets, hydraulic breakers, augers, and rippers, ensuring maximum machine utilization throughout the workday.
