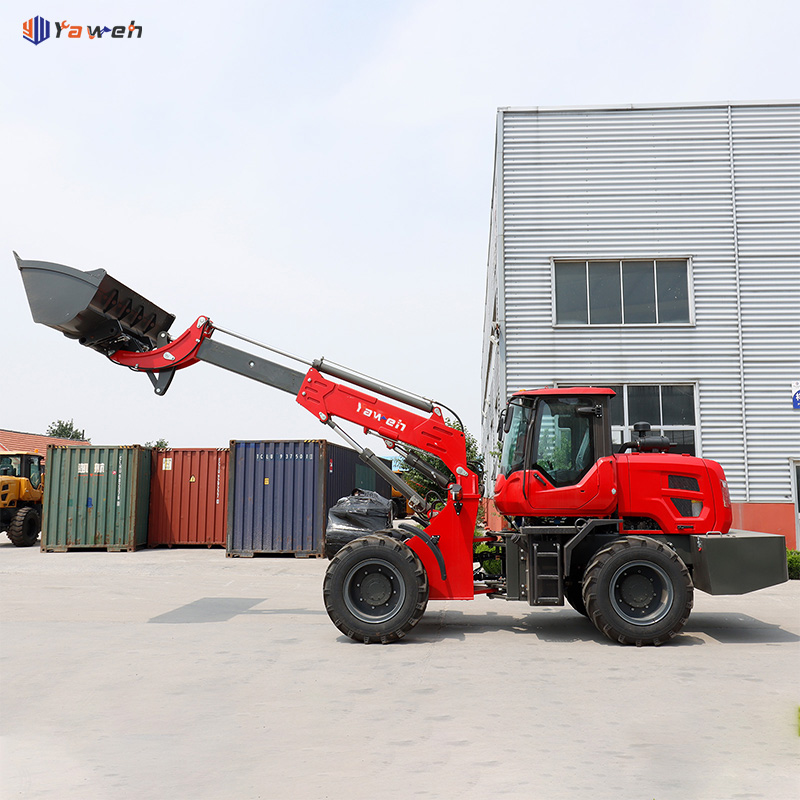

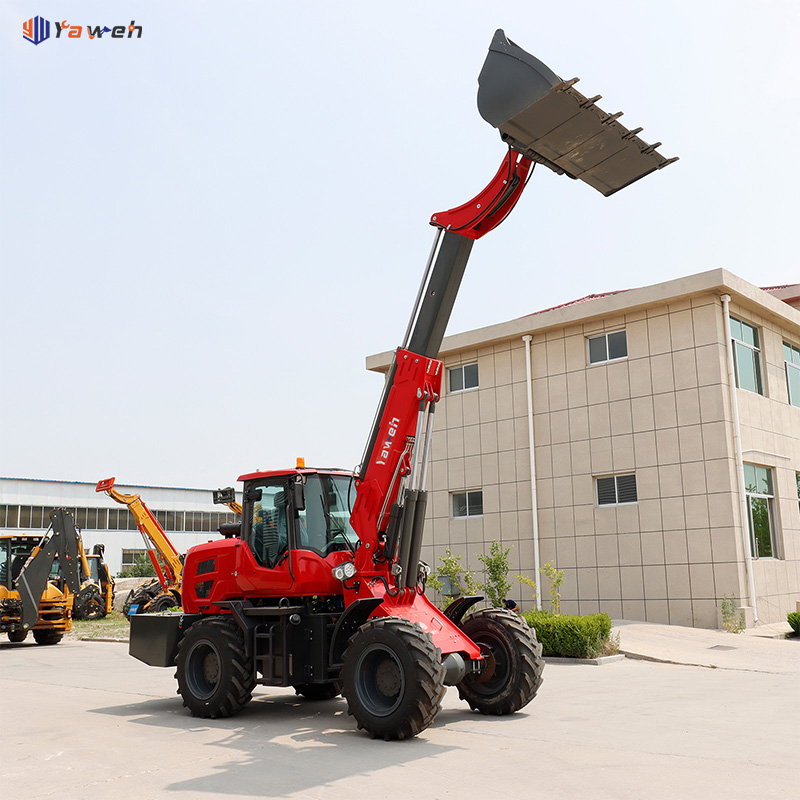

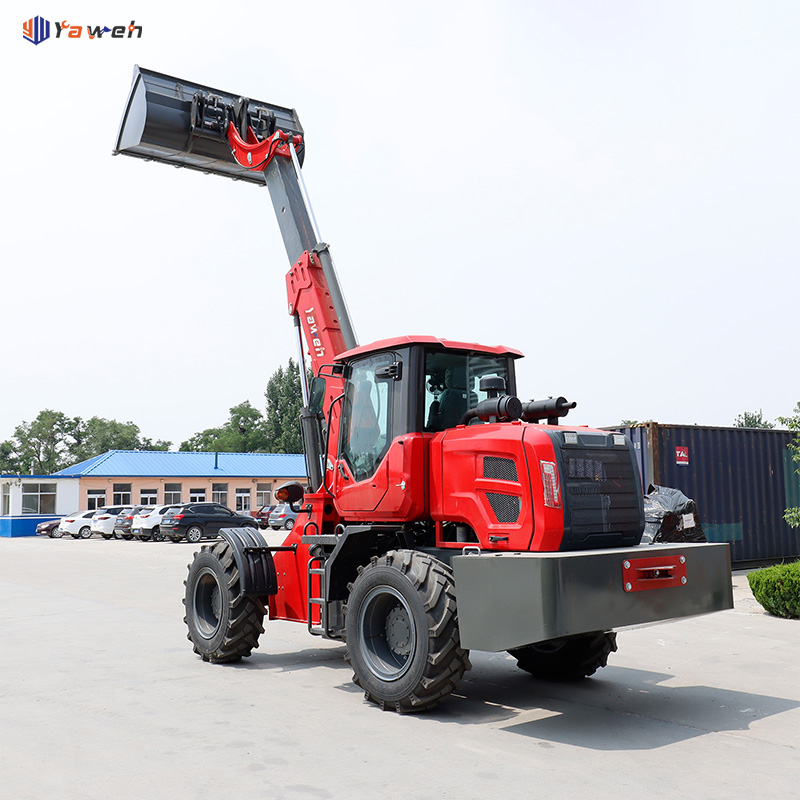

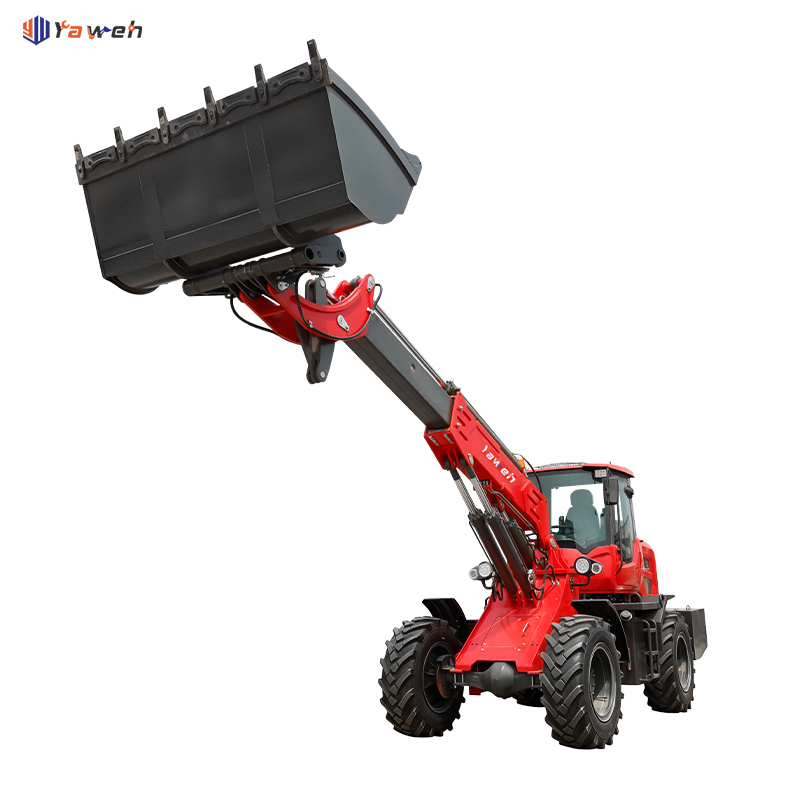

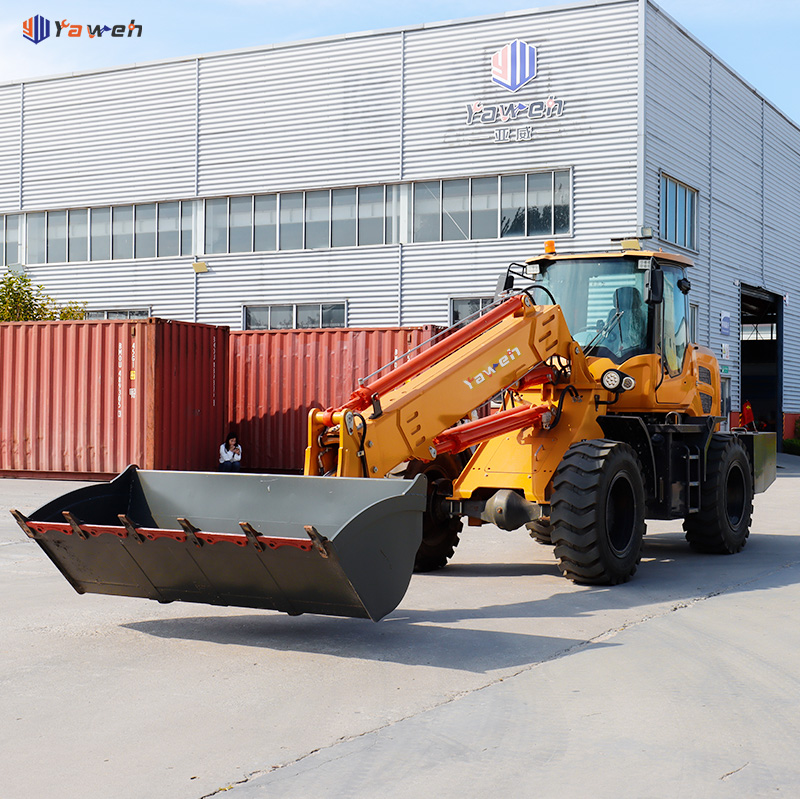

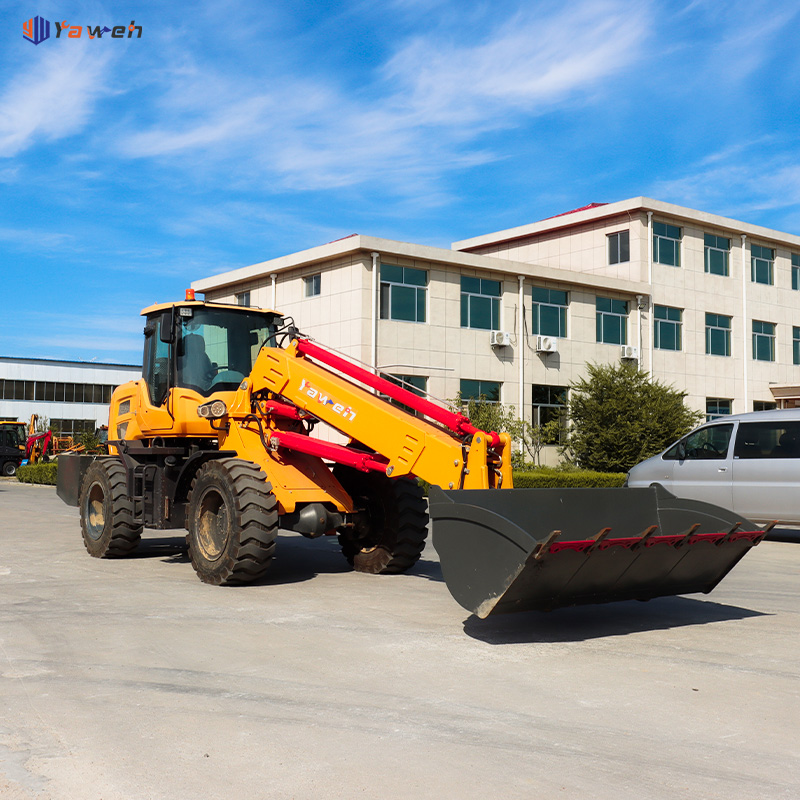

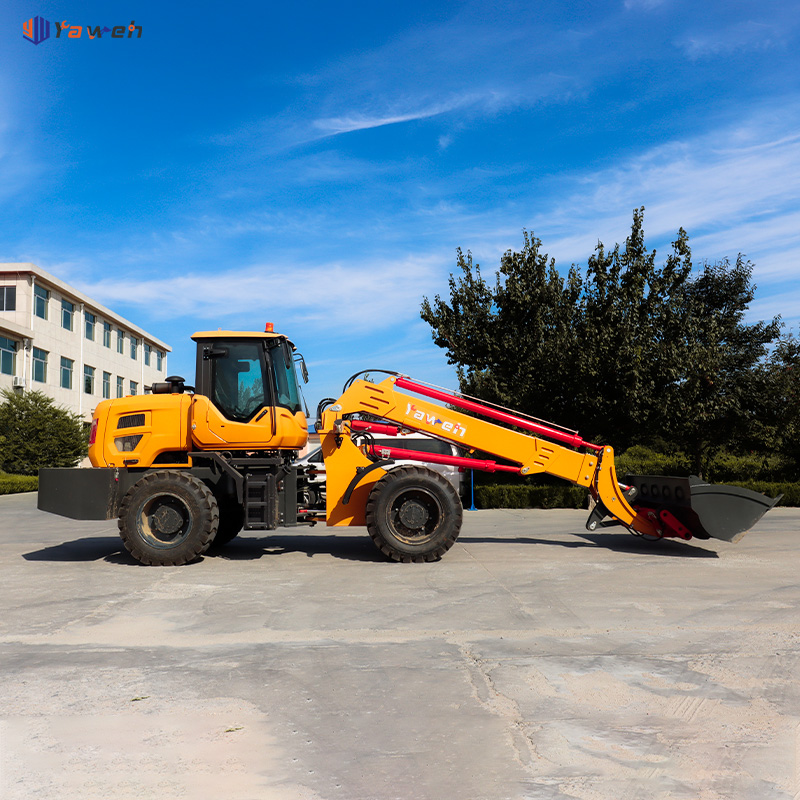

Developed by our factory to match market economy growth and user expectations, the T3000 telehandler telescopic loader delivers reliable performance across multiple industries. This telescopic wheeled loader is ideal for highway projects, urban infrastructure, mining sites, oilfield applications, agricultural water conservancy, material handling, general infrastructure excavation, and pipeline tunnel digging.
| Quantity: | |
|---|---|
| 1.This telescopic boom loader adopts an electromagnetic pilot handle controlled by solenoid valves, enabling effortless single-handle operation without frequent position adjustments. The integrated multifunctional handle allows various operations via a single button, and can simultaneously perform boom extension, bucket retraction, and the movement of other attachments to realize smooth linkage actions. In contrast to conventional hydraulic pilot control handles, this design significantly lowers the risk of misoperation, streamlines the operating procedure, reduces operator fatigue, and greatly enhances overall working efficiency. |
| 2.This telescopic wheeled loader is equipped with embedded hydraulic pipelines for its telescopic arm. Unlike traditional external hydraulic lines, this innovative design fully eliminates common issues such as pipeline aging resulting from long-term exposure to wind and sunlight. Furthermore, it prevents hydraulic pipelines from being exposed externally, which often leads to pipeline damage during operation and subsequent declines in work efficiency. Our exclusive embedded pipeline system provides reliable protection for the entire hydraulic circuit and effectively reduces pipeline wear and failure rates. |
| 3.This telescopic loader features a wear-resistant block with a dual fixed positioning slider structure. As an industry-first design, it adopts a dual fixed positioning slider system that ensures easy replacement and installation. This innovative structure effectively lowers later maintenance costs and enhances the overall durability and service life of the equipment. |

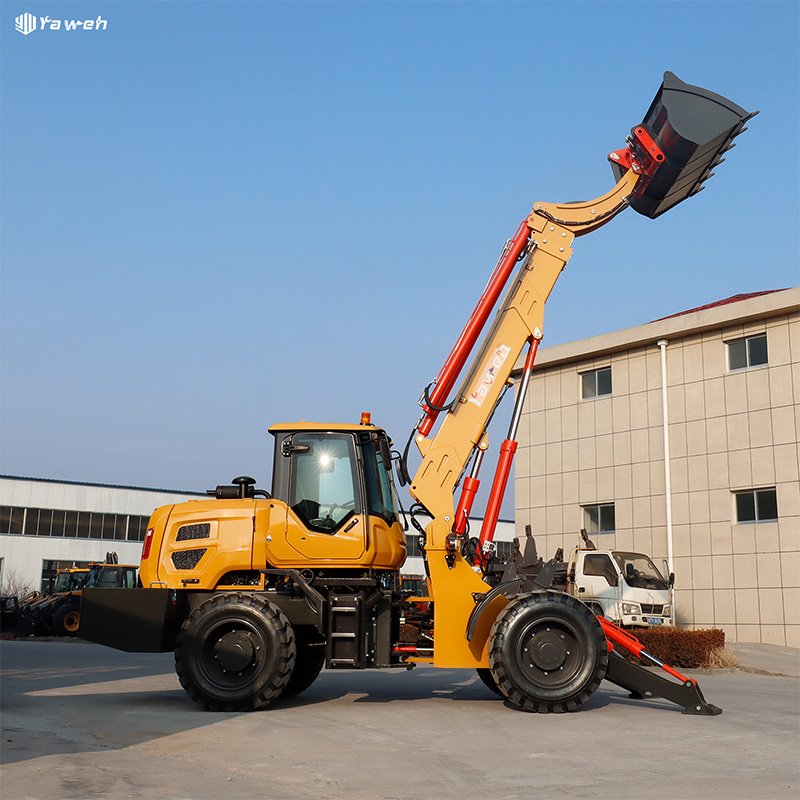

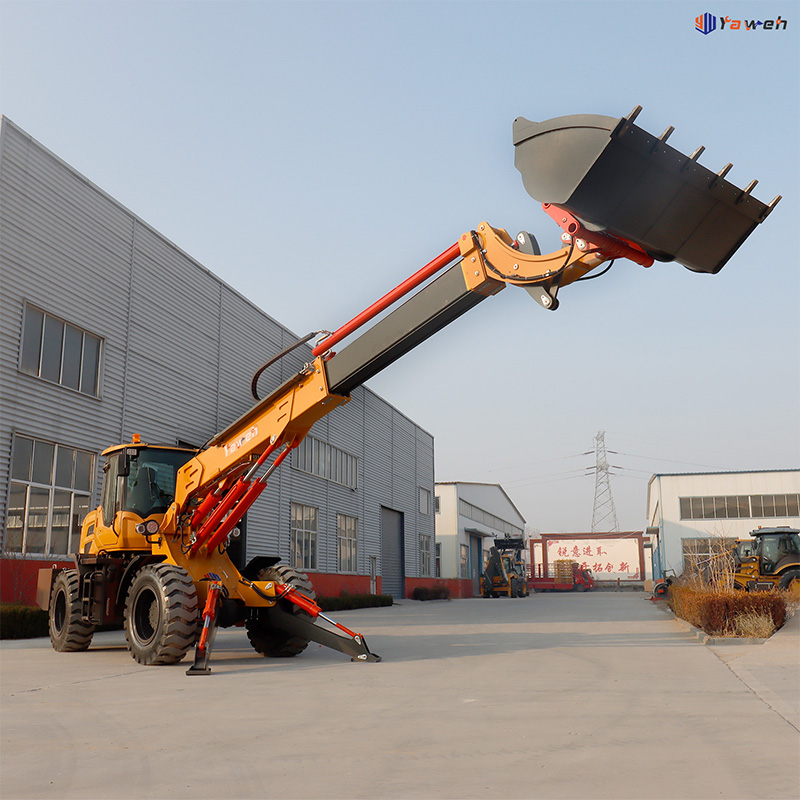

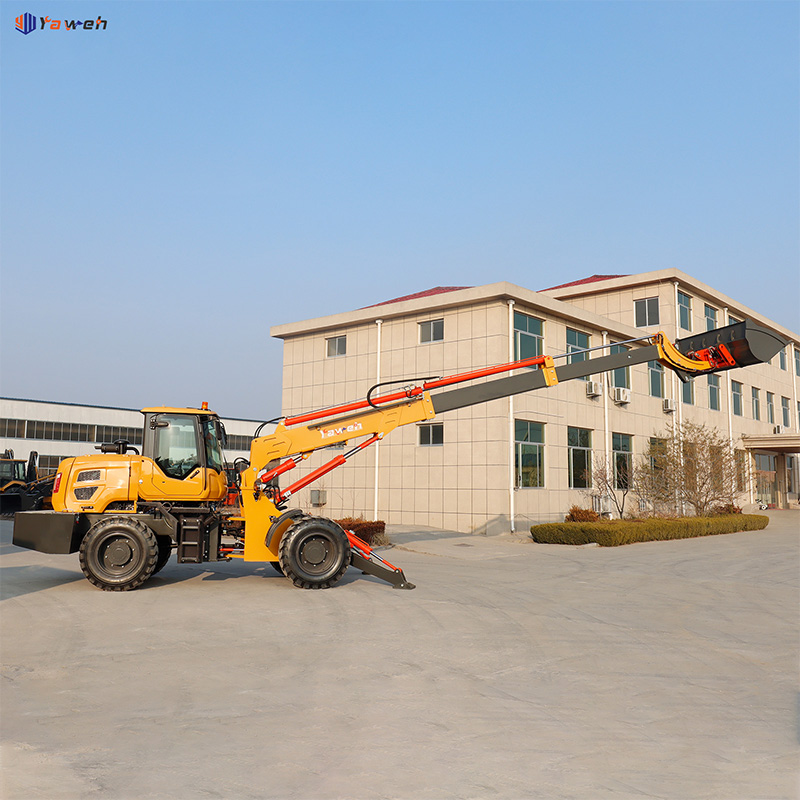

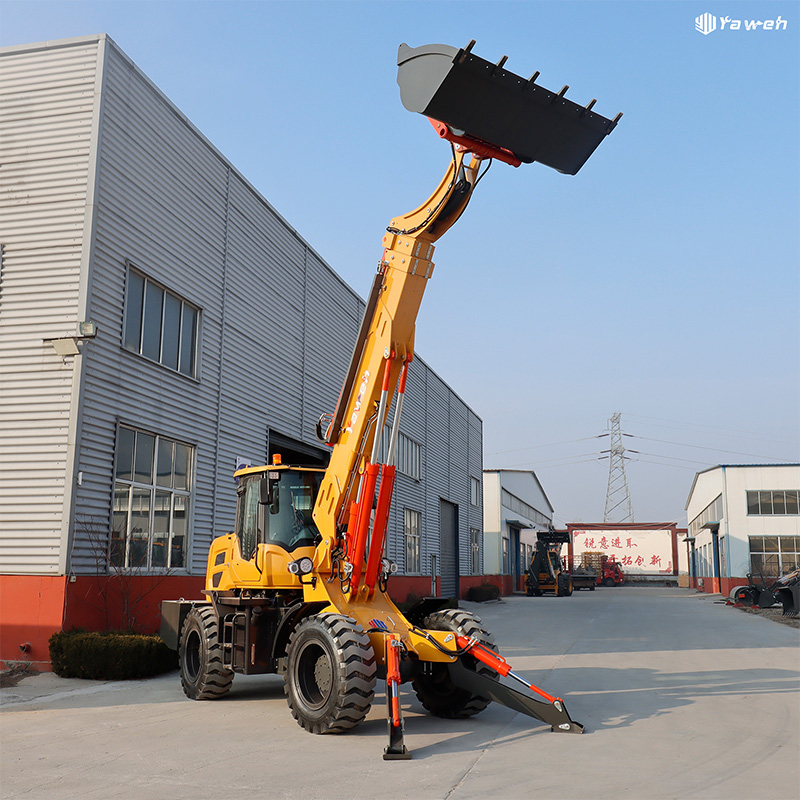

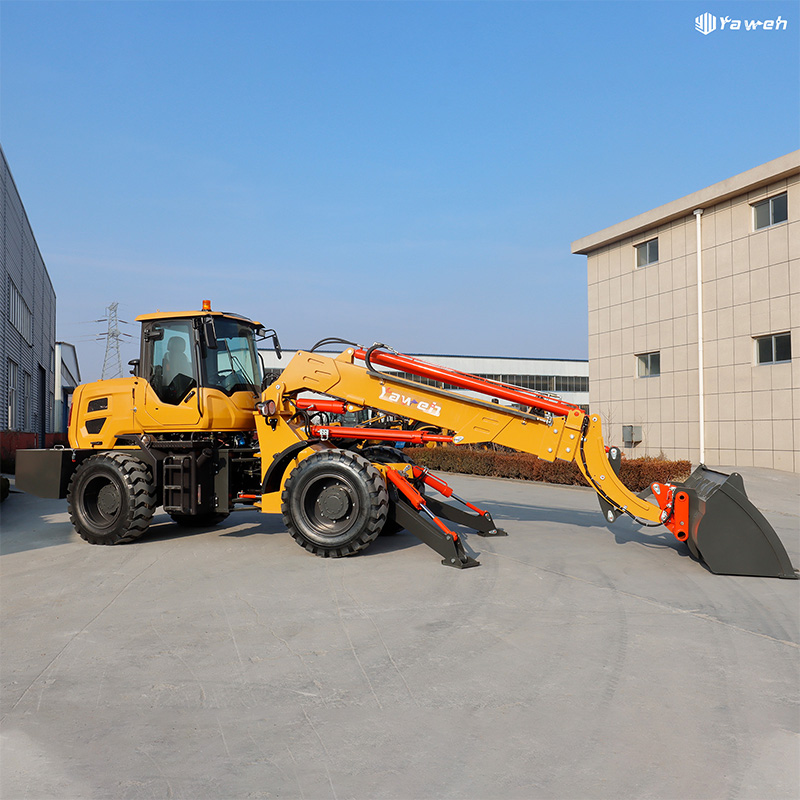

| 4.Our telescopic loader stands out with industry-leading innovations in both design and performance. It is equipped with front hydraulic support legs, a pioneering design adopted by our company as one of the first in the industry. Additionally, this machine boasts an industry-first 11-meter telescopic arm for exceptional working reach. To further guarantee the overall safety and stability of the vehicle, we have proactively designed and installed front-end hydraulic support legs, which significantly enhance the coordination, stability, and operational safety of the entire telescopic loader. |
| 5.The telescopic arm loader is equipped with an advanced front floating system for its working bucket. This intelligent system enables the bucket to self-level automatically in accordance with actual ground conditions, delivering exceptional performance especially during site leveling operations. With this floating design, the machine ensures smoother operation, higher precision, and better overall efficiency in ground grading and surface leveling tasks. |
| 6.Crafted from high-strength manganese steel, the telescopic arm delivers superior ductility, wear resistance, and overall structural strength when compared to conventional steel materials utilized by other manufacturers. This premium material choice effectively guarantees reliable safety and consistent operational performance throughout extended service life. |
| 7. This machine comes with an advanced slow down system fitted with our exclusive patented slow lowering valve. The boom operates smoothly and gently during lifting and lowering, while the integrated locking mechanism ensures stable positioning when stopped. This design greatly enhances operational safety and precision, ultimately delivering higher overall work efficiency. |
| 8.The driver's cab adopts integrated stamping technology for both the door and frame, with the entire structure shaped from a single iron plate without any welding points. Compared with standard cabs, it offers significantly improved sealing performance, effectively isolating external noise for a quieter operating environment. The newly designed cab also features a more spacious interior, wider working visibility, and aviation-grade shock-absorbing seats, delivering an exceptionally comfortable and ergonomic driving experience. |
outlines | 7m | 9m | 11m |
outline dimension (mm) | 7350*2100*2900 | 8750*2100*2900 | 8750*2100*2900 |
wheel base (mm) | 2780 | 2780 | 2780 |
traud (mm) | 1700 | 1700 | 1700 |
min ground clearance (mm) | 320 | 320 | 320 |
| performance | |||
system pressure (Mpa) | 16 | 16 | 16 |
machine weight (kg) | 6700 | 7000 | 8000 |
max speed (Km/h) | 35 | 35 | 35 |
max climbing capacity (°) | 35 | 35 | 35 |
min turning radius (mm) | 5750 | 5750 | 5750 |
| loader | |||
max lifting height (mm) | 7000 | 9000 | 11000 |
max unloading height (mm) | 4800 | 6800 | 9000 |
unloading distance (mm) | 2250/3750 | 3450/5850 | 3650/8400 |
max unloading distance (mm) | 1550 | 2450 | 3500 |
rated load (kg) | 3000 | 3000 | 3000 |
maximum rated load capacity (kg) | 1300 | 1000 | 700 |
capacity (mm) | 2200 | 2200 | 2200 |
| steering system | |||
type | articulated fully hydraulic steering | articulated fully hydraulic steering | articulated fully hydraulic steering |
steering angle (°) | 38 | 30 | 30 |
| engine | |||
model | yudong 4105 turbo | yudong 4105 turbo | yudong 4105 turbo |
type | turbo charge | turbo charge | turbo charge |
rated power (kw) | 85 | 85 | 85 |
rated speed (r/min) | 2400 | 2400 | 2400 |
cylinder No.-diameter | 4-105 | 4-105 | 4-105 |
| transmission | |||
gear box | power shift | power shift | power shift |
gear | front2 rear2 | front2 rear2 | front2 rear2 |
torque convert | 280 split high and low speed | 280 split high and low speed | 280 split high and low speed |
| axle | |||
type | heavy-duty axle | heavy-duty axle | heavy-duty axle |
| tyre | |||
size | 16/70-24 | 16/70-24 | 16/70-24 |
travel brake | Gas cap oil clamp disc brake | Gas cap oil clamp disc brake | Gas cap oil clamp disc brake |
parking brake | hand brake | hand brake | new gas energy storage air brake |
| other | |||
driving type | 4x4 | 4x4 | 4x4 |
speed change type | hydraulic variable speed driver | hydraulic variable speed driver | hydraulic variable speed driver |
operation system | electromagnetic hydraulic pilot control | electromagnetic hydraulic pilot control | electromagnetic hydraulic pilot control |
*Based on the need for continuous improvement of the products, all attached pictures and materials are for reference only. In case of any changes, the actual products shall prevail.
Material loading, unloading, and palletizing
Very suitable for operations in warehouses, logistics centers, or freight yards. The telescopic arm can directly extend into the deep part of the truck compartment or the high part of the shelf for loading, unloading, and stacking, without the need for precise vehicle alignment, greatly improving material turnover efficiency and reducing dependence on other equipment.
Construction and Building Materials Processing
At construction sites, it can be used for delivering building materials, handling blocks, and transporting interior decoration materials for high-rise buildings (such as 2-3 floors). The 9-meter arm model has a larger operating range and can more effectively cover the vertical working surfaces of mid to low rise buildings.
Special homework environment
Carry out earthwork loading and unloading or material delivery at a safe distance in hazardous edge areas such as foundation pits and ditches. It is also suitable for soft ground that cannot accommodate large equipment (such as mud or sand), and can be remotely operated in stable areas using arm length.
Application in Agriculture, Forestry and Pasture
Used for high-level filling of feed bins, handling and stacking of haystacks, and remote feeding in greenhouses. Its arm length advantage avoids frequent entry and exit of machinery, effectively protecting ground and greenhouse facilities, and is particularly suitable for intensive breeding farms. "
A:Most commonly equipped with buckets, forks, and wooden grippers. The core advantage of a telescopic arm is that it can horizontally extend or lift attachments to the depths of truck compartments, high-rise shelves, or the other side of walls for operation, like a "robotic arm", solving the problem of being unable to reach or accurately align with ordinary loaders.
A:The universal bucket is mainly used for remote loading, unloading, and handling of loose materials such as sand and gravel. For example, standing on the ground to feed the mixer at a high position, or cleaning the soil at the edge of the foundation pit from a safe distance. It is the most basic and universal loading tool.
A:Forks (or side shift forks) greatly expand their logistics applications, used for stacking and loading/unloading palletized goods such as building materials and feed packages. The telescopic arm can accurately place goods inside the truck or on the second floor of the shelf without the assistance of other lifting equipment, making it very efficient.
A:Hydraulic grab bucket is suitable for handling straw, wood, and loose materials; After being installed on the high-altitude work platform, the machine instantly becomes a mobile elevator, used for warehouse shelf sorting, equipment maintenance, building exterior wall construction, etc., achieving multi-purpose use with one machine.
