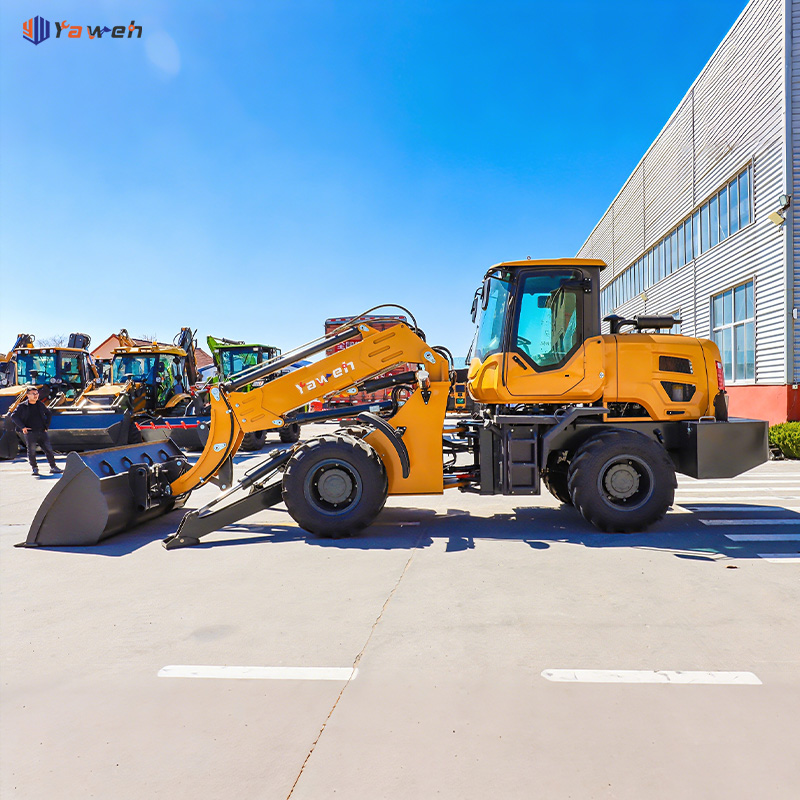

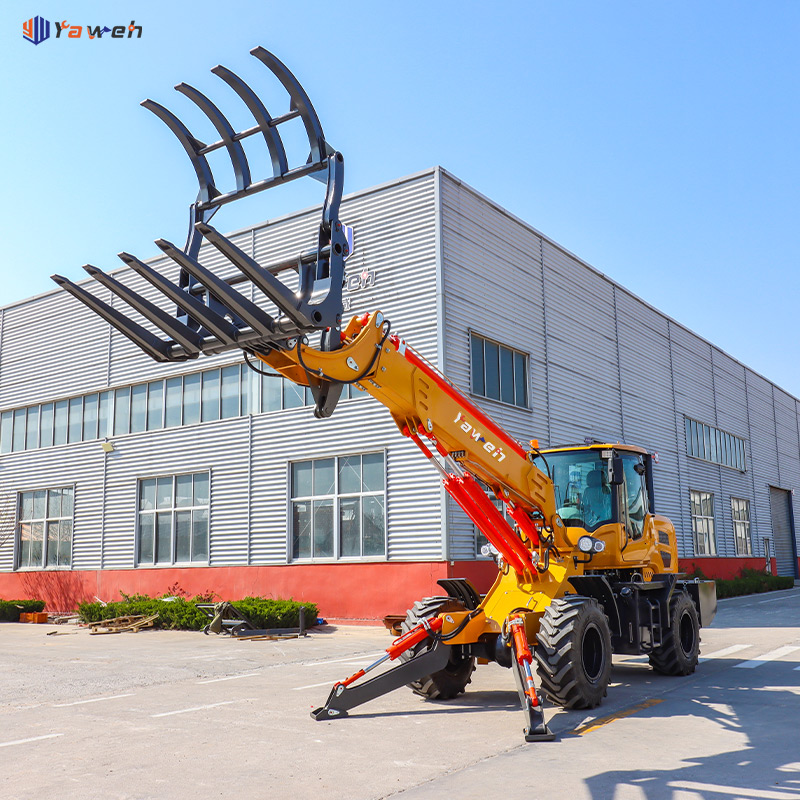

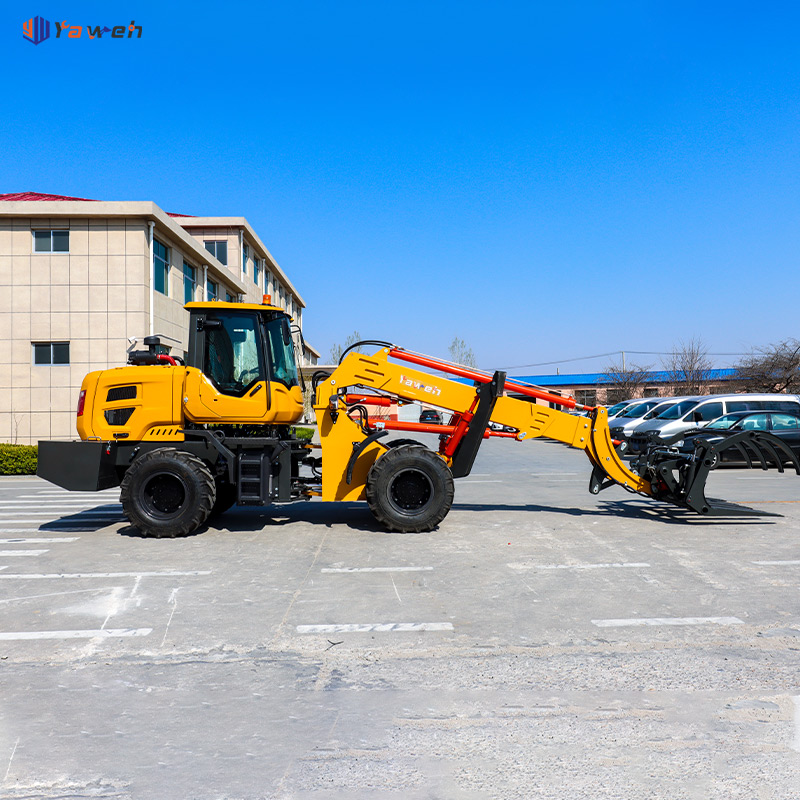

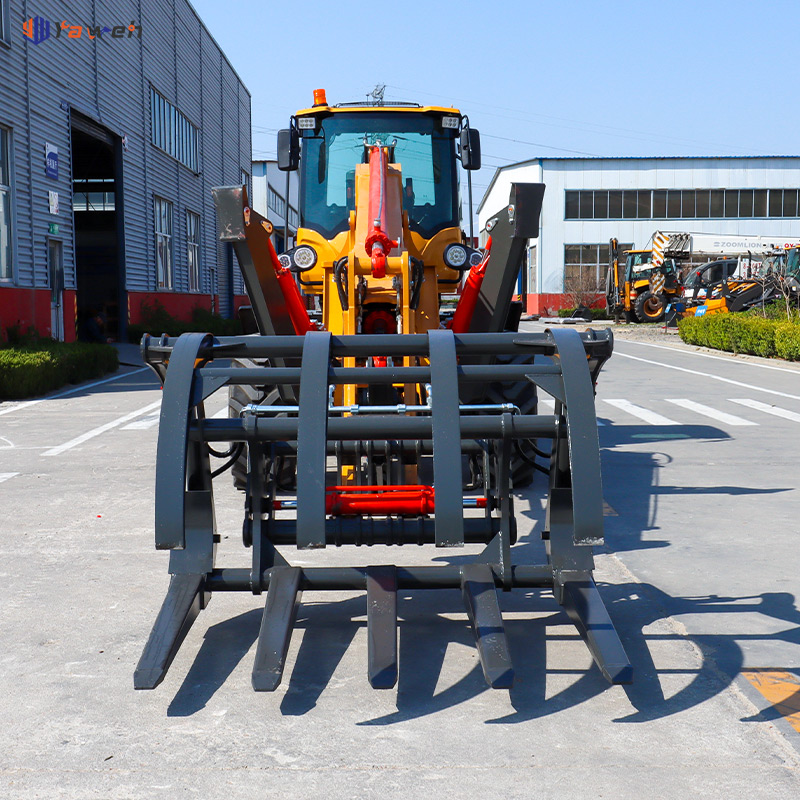

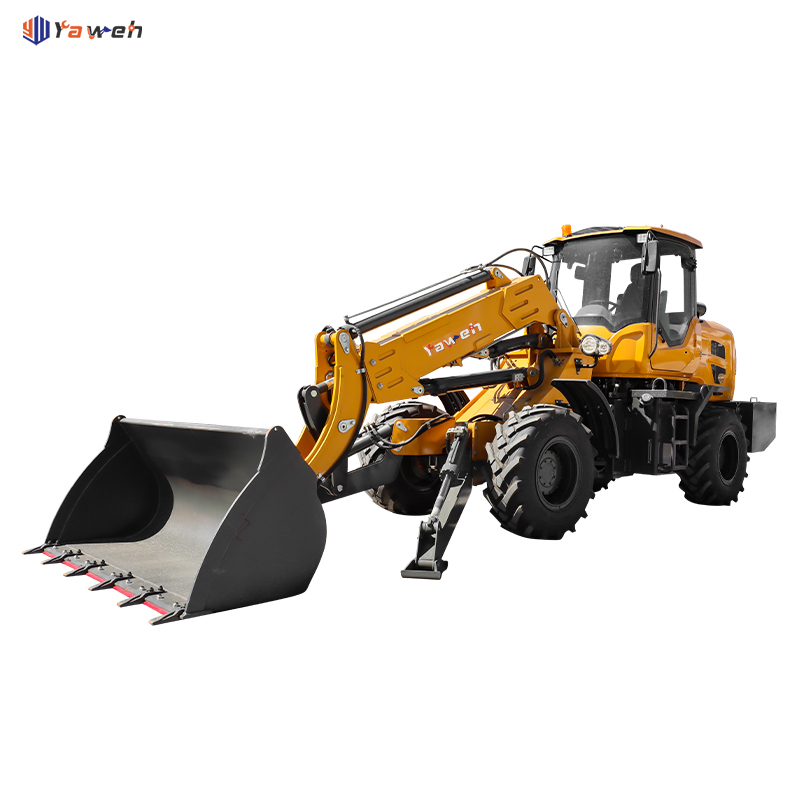

The telescopic wheel loader combines high lifting, long reach, compactness and flexibility, with multi-attachment compatibility. Despite its small size, it enables long-distance and high-altitude loading and handling. It can be quickly equipped with buckets, forks, lifting hooks and other attachments for loading, stacking, transporting and light lifting work.
Applications: construction sites, farms, landscaping, warehousing, municipal maintenance, narrow industrial areas and indoor renovations. Ideal for jobs requiring large working radius and small turning space.
| Quantity: | |
|---|---|
1. An electromagnetic pilot handle is adopted. Controlled by an electromagnetic valve, single-handle operation eliminates the need for frequent position adjustments. The composite handle allows for various actions to be executed with a single button press, enabling simultaneous completion of boom extension and retraction, bucket deployment and retraction, and other different attachment functions, thus achieving linked operations. Compared to ordinary hydraulic pilot operation handles, it significantly reduces the probability of misoperations, optimizes the operation process, reduces labor intensity, and enhances work efficiency.
2. Built-in telescopic hydraulic pipeline. Compared to the traditional external hydraulic pipeline, it can completely solve the problems existing in the external hydraulic pipeline, such as pipeline aging caused by long-term exposure to the wind and sun; at the same time, it avoids the exposure of the hydraulic pipeline, which can easily cause damage to the pipeline during work due to knocks, resulting in the hydraulic pipeline being damaged and unable to work normally, affecting work efficiency. We exclusively adopt the built-in hydraulic pipeline to better protect the oil circuit and reduce pipeline damage.
3. Wear-resistant block with dual-fixed position slider structure. The dual-fixed position slider structure is pioneered in the industry. The dual-position slider structure is easy to replace and install, greatly reducing maintenance costs in the later stages.

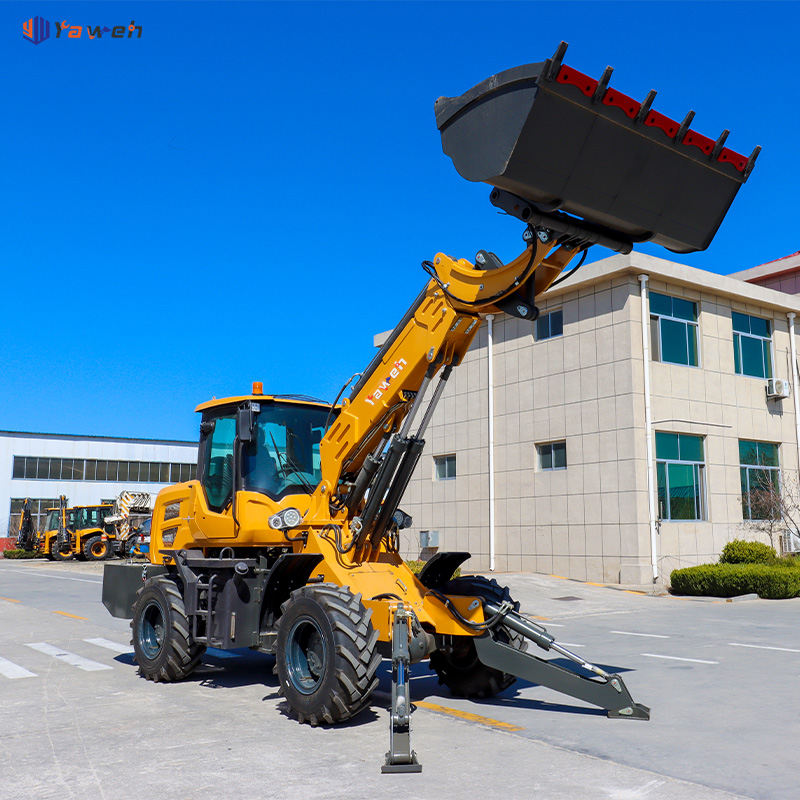

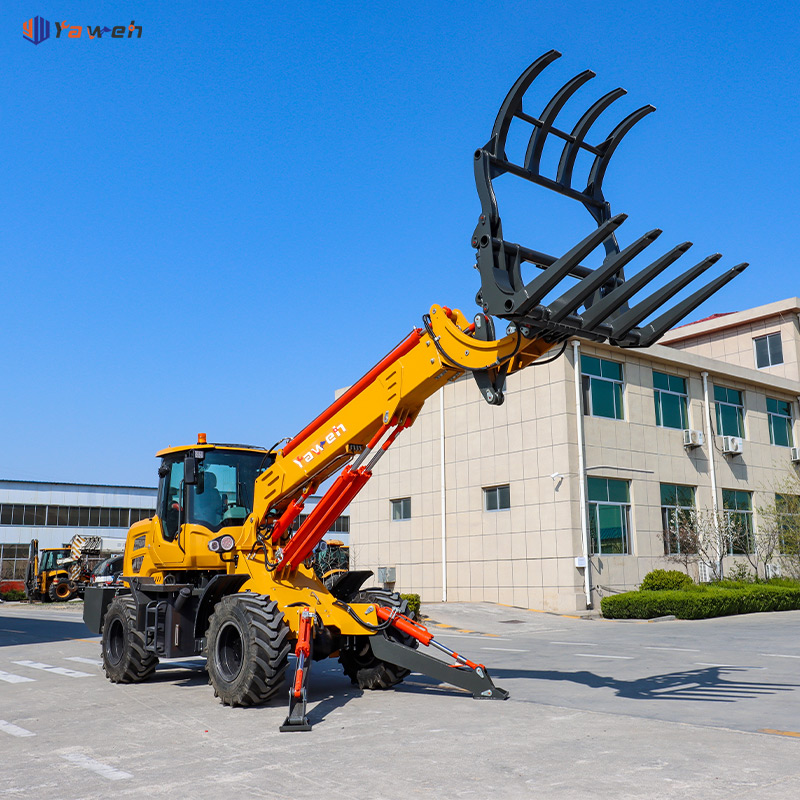

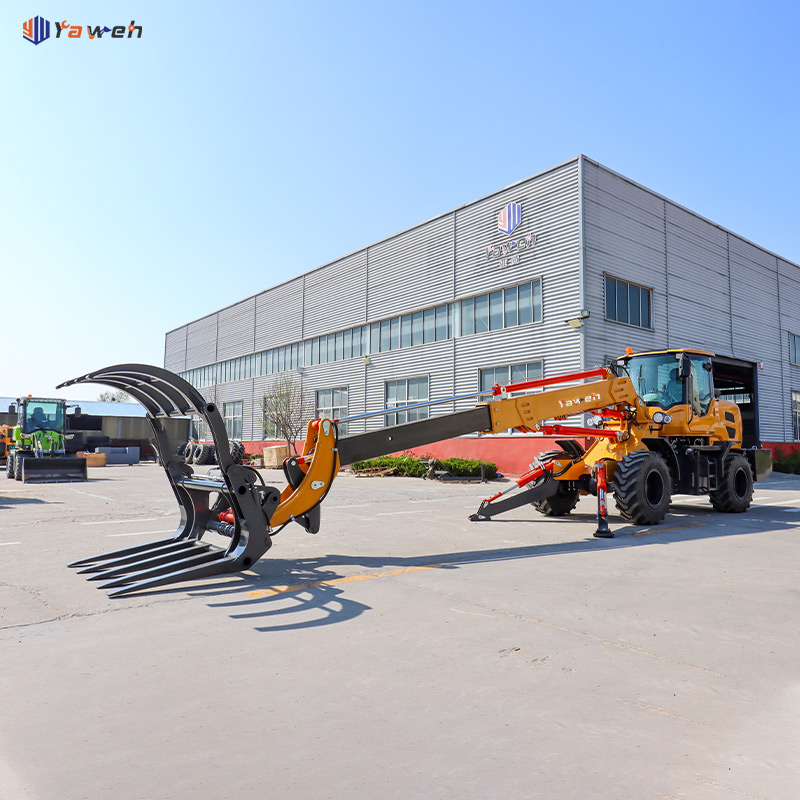

4. Front hydraulic outriggers. The company is the first in the industry to use hydraulic outriggers, and its 11-meter telescopic boom is a pioneering innovation in the industry. To ensure the overall safety of the vehicle body, the company has taken the lead in designing and installing front hydraulic outriggers, which enhance the overall coordination of the vehicle body and greatly improve its stability and safety.

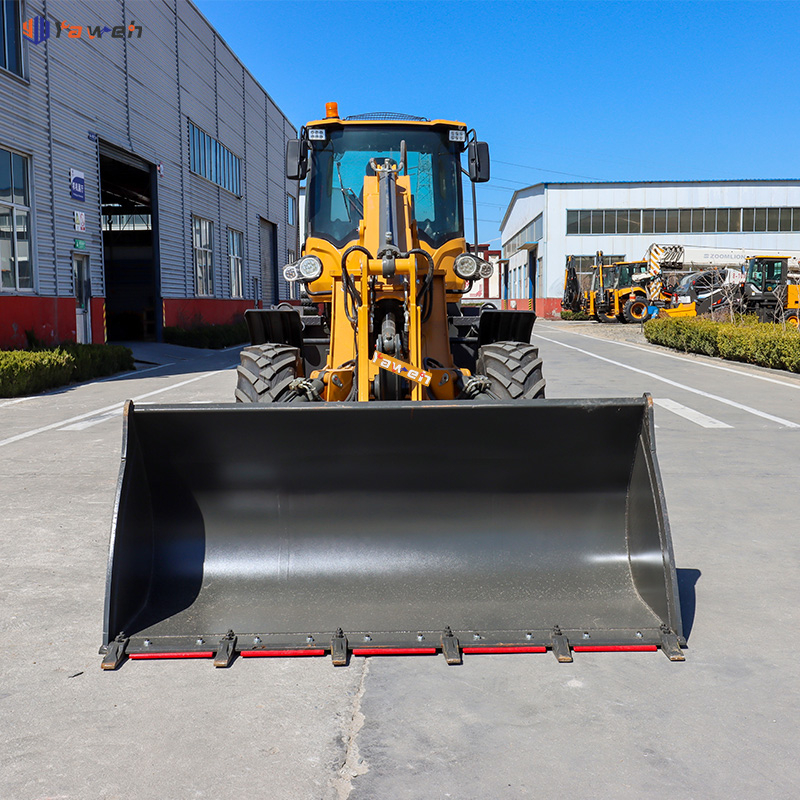

5. Floating system. The front bucket adopts a floating system, allowing it to automatically level itself according to the ground surface, which is particularly effective when used for site leveling functions.

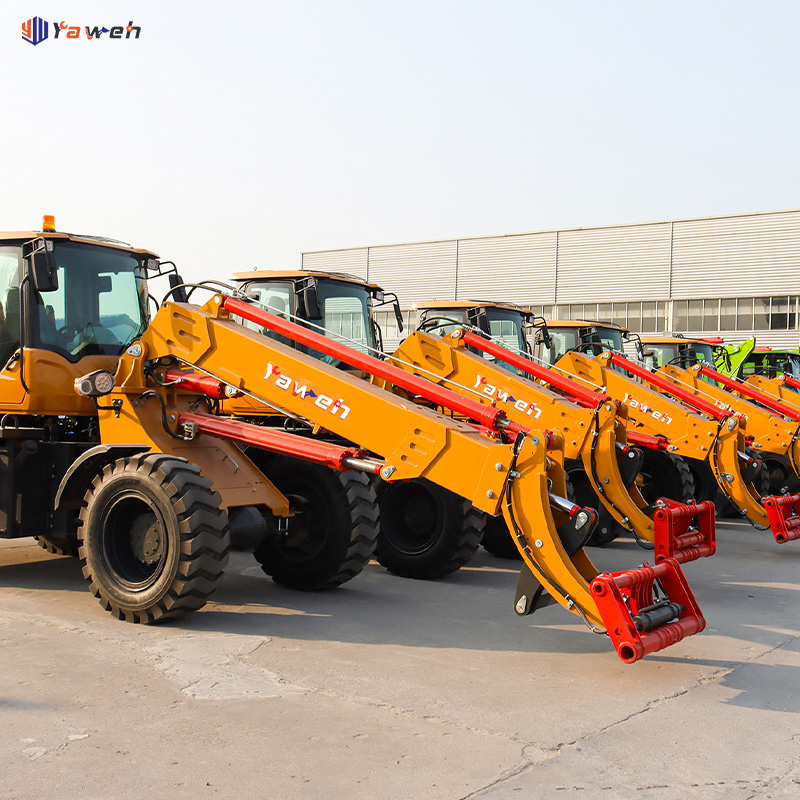

6. The telescopic arm is made of high-strength manganese steel, which, compared to the ordinary steel used by other manufacturers, exhibits higher ductility, wear resistance, and strength, effectively ensuring safety and performance during use.
7. Slow descent system. Equipped with an exclusive production patent slow descent valve, it ensures a gentle lifting action of the boom and features a locking function when stopped, which helps improve safety performance, work accuracy, and work efficiency during operation. 、 (Note: This is a placeholder text and may not have a specific translation as it is not a complete sentence or paragraph. If you have a specific context or purpose for this text, please provide more information so that I can provide a more accurate translation.)
8. Cab. The cab door and frame are made using integrated stamping technology, with the entire sheet of iron stamped into shape. The entire cab has no welding points, providing a better sealing effect compared to ordinary cabs. It effectively isolates external noise. The new cab has more space, providing a wider field of view when working. The aviation shock-absorbing seats enhance the driving experience.
Outlines | 7m | 9m |
outline dimension (mm) | 7350*2000*2850 | 8750*2000*2850 |
wheel base (mm) | 2600 | 2650 |
traud (mm) | 1560 | 1560 |
min ground clearance (mm) | 320 | 320 |
| Performance | ||
system pressure (Mpa) | 16 | 16 |
machine weight (kg) | 6200 | 6600 |
max speed (Km/h) | 35 | 35 |
max climbing capacity (°) | 35 | 35 |
min turning radius (mm) | 5330 | 5330 |
| Loader | ||
max lifting height (mm) | 7000 | 9000 |
max unloading height (mm) | 4800 | 6800 |
unloading distance (mm) | 2300/3800 | 3500/5900 |
max unloading distance (mm) | 1600 | 2500 |
rated load (kg) | 2500 | 2500 |
max. rated load capacity (kg) | 1000 | 800 |
capacity (mm) | 2000 | 2000 |
| Steering System | ||
type | articulated fully hydraulic steering | articulated fully hydraulic steering |
steering angle (°) | 38 | 30 |
| Engine | ||
model | yunnei 4102 turbo | yunnei 4102 turbo |
type | turbo charge | turbo charge |
rated power (kw) | 76 | 76 |
rated speed (r/min) | 2400 | 2400 |
cylinder No.-diameter | 4-102 | 4-102 |
| Transmission | ||
gear box | power shift | power shift |
gear | front2 rear2 | front2 rear2 |
torque convert | 280 split high and low speed | 280 split high and low speed |
| Axle | ||
type | heavy-duty axle | heavy-duty axle |
| Tyre | ||
size | 16/70-20 | 16/70-20 |
travel brake | articulated fully hydraulic steering | articulated fully hydraulic steering |
parking brake | hand brake | hand brake |
| Other | ||
driving type | 4x4 | 4x4 |
speed change type | hydraulic variable speed driver | hydraulic variable speed driver |
operation system | electromagnetic hydraulic pilot control | electromagnetic hydraulic pilot control |
* Based on the need for continuous improvement of the products, all attached pictures and materials are for reference only. In case of any changes, the actual products shall prevail.
Q: What construction site tasks is a telescopic wheel loader suitable for?
A: It is ideal for narrow construction areas, capable of loading/unloading sand, gravel, steel bars and other materials, cooperating with other equipment for foundation backfilling and wall construction. Its telescopic arm realizes high lifting and long-distance operation, greatly improving construction efficiency.
Q: How does a telescopic wheel loader perform in farm and ranch operations?
A: It is flexible with a small turning radius, adapting to narrow passages between farm houses and barns. Equipped with different attachments, it can handle hay stacking, feed transportation, livestock shed cleaning and farmland leveling, solving rural material handling difficulties.
Q: Can a telescopic wheel loader be used for landscaping projects, and what specific work can it do?
A: Yes, it is widely used in landscaping. It can load/transport soil, flowers, trees and landscape stones, accurately place large plants with its telescopic arm, and also trim slopes, clean garden waste and build garden paths, saving labor and time.
Q: Is a telescopic wheel loader suitable for warehousing and logistics scenarios, and what advantages does it have? A: It is a high-efficiency handling tool for warehouses, logistics centers and freight yards. With long reach and high lifting capacity, it can stack goods to high positions, load/unload container goods quickly, adapt to narrow warehouse passages, and reduce manual labor intensity.
