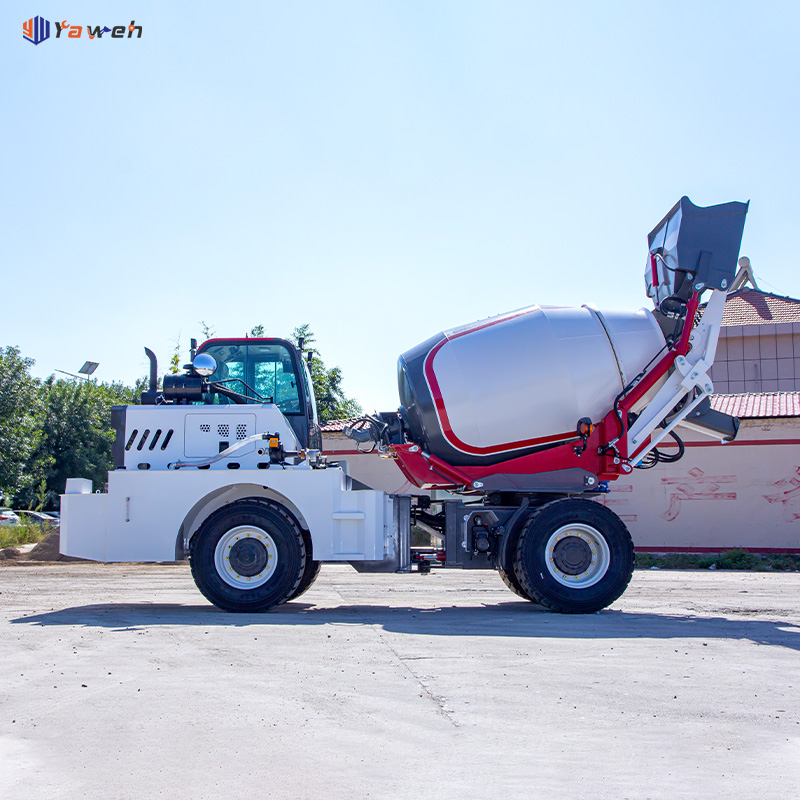

The Yaweh self-loading mixer truck realizes the full automation of the entire concrete production process,including loading,wateraddition, mixing, unloading and transportation,truly achieving multiple uses with one machine.It has the advantages of simpleoperation and high production efficiency, and is particularly suitable for small and medium-sized construction projects, Accordingto the user's requirements, it can be equipped with heating and cooling air conditioners,electronic scales, high-pressure carwashing,bidirectional driving,etc.
| Quantity: | |
|---|---|

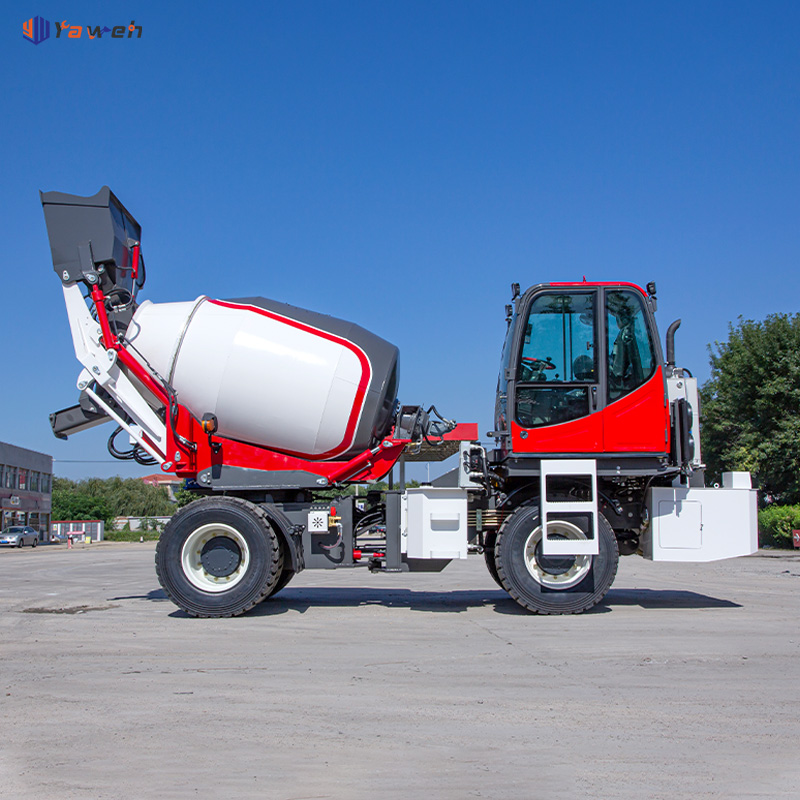

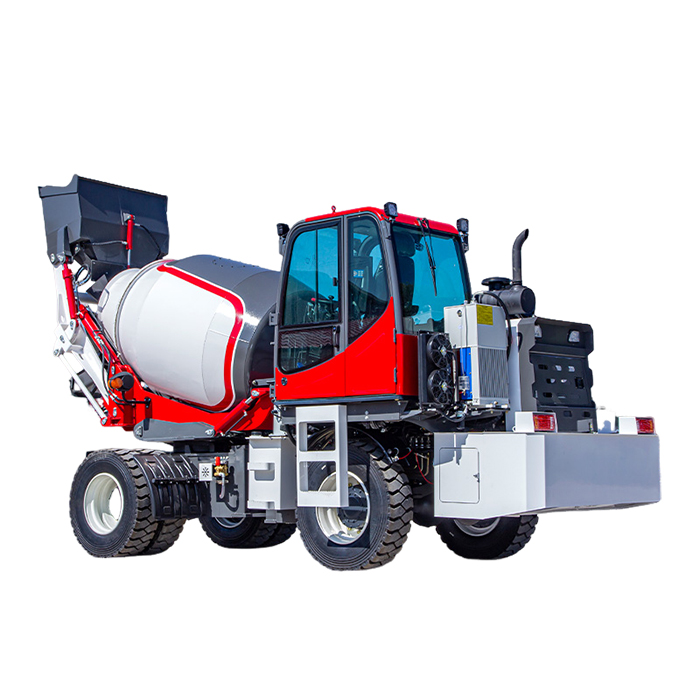

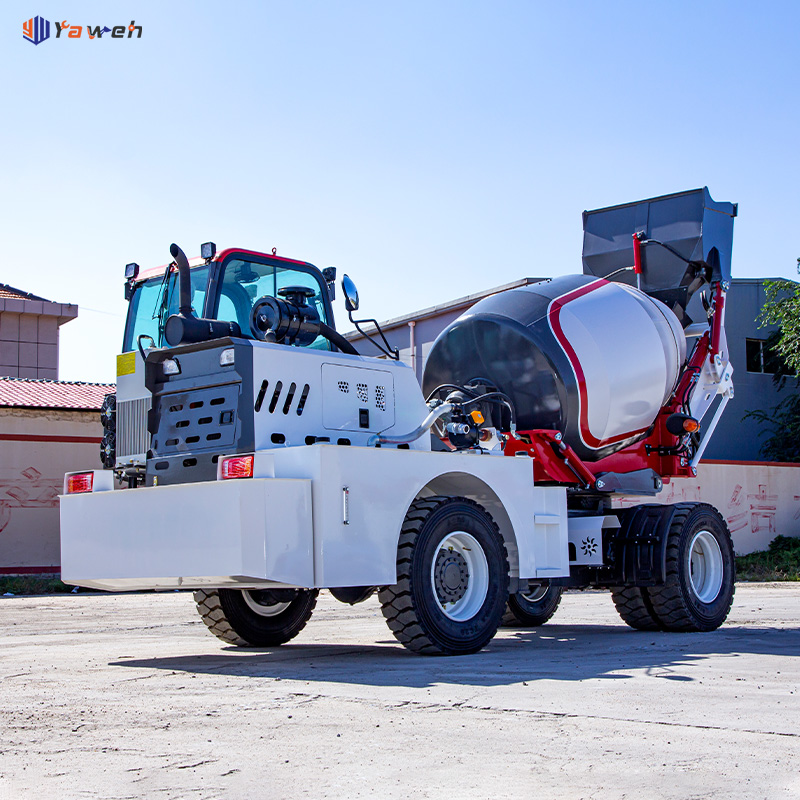

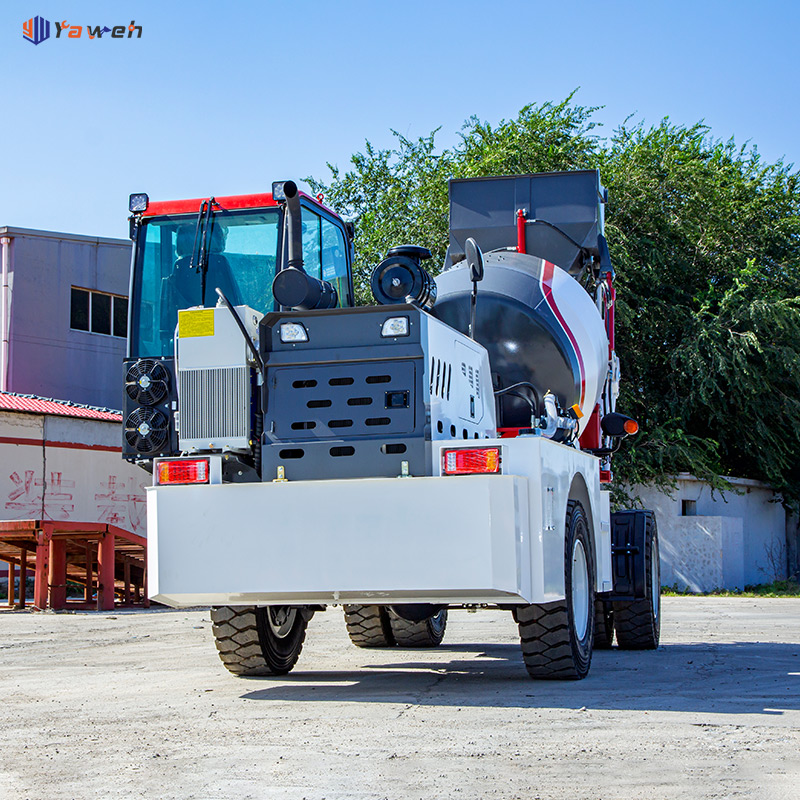

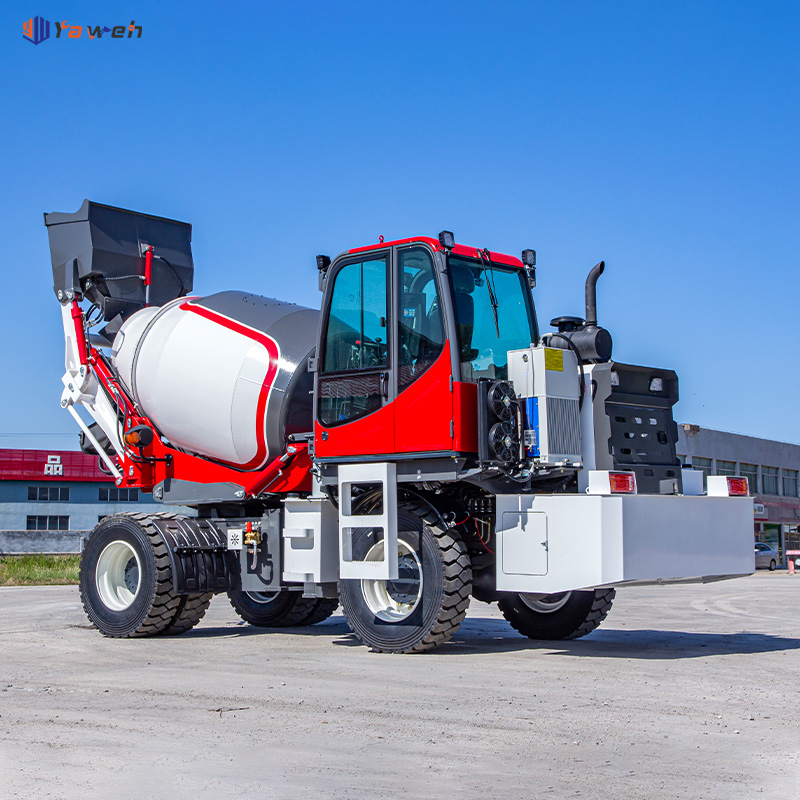

The Yaweh self-loading mixer truck can be divided into two types: front-mounted cab and rear-mounted cab.The front cab rotates left and right simultaneously with the boom and the mixing drum. For the rear-mounted cab model, the boom and the mixing drum rotate left and right simultaneously, and it also has a bidirectional driving function. Single-rod control for the lifting and lowering of the large arm and the retraction and flipping of the bucket, with simple operation and faster feeding speed.
Adopting international standards of 15-16 degrees and adding built-in blades for semi mandatory mix- ing,Concrete mixing is more uniform, the mixing tank can be tilted forward, and the unloading speed is faster;
Equipped with precise electronic scale and automaticwater adding function, The data display is accurate, and the proportion can be adjusted by sitting in the driver's cab.
Vacuum steel wire tire, anti puncturing, explosion-proof, Stronger bearing capacity, National standard axle, dual brake calipers, Parking with air brake, excellent braking performance;
Equipped with hydraulic external suction pump,It can achieve auto matic and remote water addi- tion,The water tank of the mixing truck is convenient and fast to add water;
The entire vehicle is equipped with dual fuel tanks and dual heat dissipation,Continuous operation without high temperature,Cus tomized variable displacement pump, controllable rotation speed of the tank body,Better concrete quality;
Most accessories such as oil cylinders, tanks, frames, integral structural components, and frames, All are produced by our company, with solid materials, welded by Robotic arm, professional manufacturing and guaranteed quality;
Model | 6.5m³ | |
Vehicle size (L×W×H) | 6970×2850×4320 (Lifting arm) | mm |
Wheelbase | 3200 | mm |
Track width | 1710 | mm |
Overall weight | 9500 | kg |
Engine | YCD4J22T-125 / YC6J125Z-T20 | |
Power | 91/92 | kw |
Gearbox | 315 Separated | |
Drive axle | 3.0T Wheel side reduction axle | |
Tyre | 16/70-R 22.5 double tyre | |
Capacity of bucket | 0.65 | m³ |
Stirring capacity | 4 | m³ |
Reduction ratio | 1:103 | |
Rotate speed | ≥15 laps/minute | laps/minute |
Reducer | Made in china | |
Running speed | 35 | km/h |
Shaft number traction type | 4×4 | |
Water tank capacity | 700 | L |
Diesel tank capacity | 150 | L |
Hydraulic tank capacity | 140+35 | L |
1. Rural Development and the ‘Village Access’ Initiative
This represents the most widespread application of self-loading concrete mixers within China at present.
Rural Self-Built Homes / Country Houses: Rural construction projects typically require relatively small volumes of concrete per pour (tens of cubic metres) and operate within confined sites inaccessible to large commercial mixers. Self-loading mixers can be driven directly to the plot, mixing and pouring simultaneously for exceptional flexibility.
Rural Road Paving: Rural roads (concrete surfaces) are often fragmented, narrow, and winding. Self-loading mixers can mix while travelling, unloading directly at pouring points – significantly more efficient than traditional methods.
Irrigation Channels / Dam Repairs: Construction of water management facilities in remote fields and farmland is inaccessible to large machinery.
2. Infrastructure and Municipal Emergency Repairs
These tasks demand rapid response and involve dispersed work sites.
Road Repair and Maintenance: Addressing potholes, laying sub-bases for pavement bricks, etc., requires small but frequent concrete volumes.
Pipeline Installation Projects: When burying water pipes or laying cable trenches, trench foundations must be poured. Such projects feature long operational stretches with low volume per point, making self-loading mixer trucks ideal for mobile operations.
Car Parks / Plaza Paving: Small-scale hard surface projects.
3. Landscape Gardening and Greening Projects
Park / Scenic Area Construction: Heavy trucks are often prohibited within scenic areas, where roads are winding. Self-loading mixer trucks, being compact, are suitable for pouring park bench bases, ornamental ponds, flower beds, etc.
Golf Courses / Resorts: Landscape moulding and surface hardening during construction.
4. Remote Areas and Wilderness Projects
The sole viable option where commercial concrete plants (mixing stations) are unavailable.
Mining / Quarry Construction: Equipment foundation pouring and retaining wall construction in remote mining areas.
Hydropower Station Construction: Auxiliary works for mountainous hydropower stations. Complex terrain makes concrete transportation prohibitively costly. Self-loading mixers source local aggregates (sand/gravel), requiring only water and cement delivery for production.
Desert/Gobi Projects: Pile foundation pouring for photovoltaic power stations. Far from urban centres, self-loading mixers serve as the ‘ships of the desert’.
5. Specialised Operating Environments
Confined Space Operations: Renovation of older residential estates, basement concrete pouring (where ramps are available), tunnel construction, and similar projects with restricted access where large vehicles cannot operate.
Off-Grid / Low-Power Environments: Diesel-powered with integrated generator functionality, eliminating the need for external power sources and making it ideal for field operations.
A:It integrates loading, metering, mixing, transport and discharge into one unit. It is highly suitable for rural self-build homes, small construction sites, field roads, water conservancy projects and other scenarios with moderate concrete demand, dispersed locations or inaccessible terrain. It can independently complete the entire process from raw materials to on-site concrete.
A:Its core strengths lie in high self-sufficiency and flexibility. It eliminates reliance on ready-mix plants and dedicated access roads, enabling independent loading of aggregates and water. Mixing occurs on-site or during transit, with precise delivery. This makes it particularly suitable for projects with limited budgets, remote locations, or requiring multiple small-batch pours.
A:The key lies in standardised operation: raw materials must be loaded proportionally, and the mixing drum must remain in rotation during transit to guarantee homogeneity. Mixing typically lasts 5-7 minutes, and discharge should occur promptly upon arrival to prevent initial setting. Regular cleaning and maintenance of the mixing drum are fundamental to sustaining efficiency and quality.
A:Primary considerations are the total project volume and single-pour capacity. Selection is based on mixing drum capacity (e.g., 4.5 cubic metres, 6 cubic metres). Micro-sized units (below 4.5m³) suit agricultural applications; small units (around 6m³) cater to rural construction; truck-mounted mixers offer greater capacity and mobility than trailer-mounted types.
A:Operational focus lies in proportionate loading and ensuring continuous drum rotation during transit for thorough mixing. Maintenance hinges on thorough cleaning of the mixing drum after each use to prevent concrete hardening and clumping. This practice underpins both equipment longevity and consistent quality in subsequent mixes.
