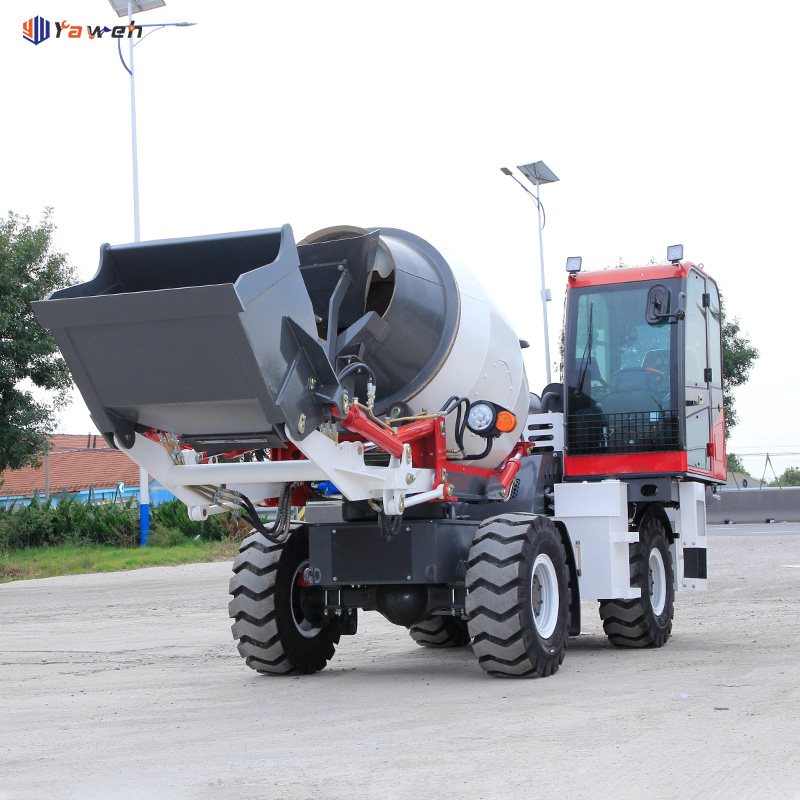

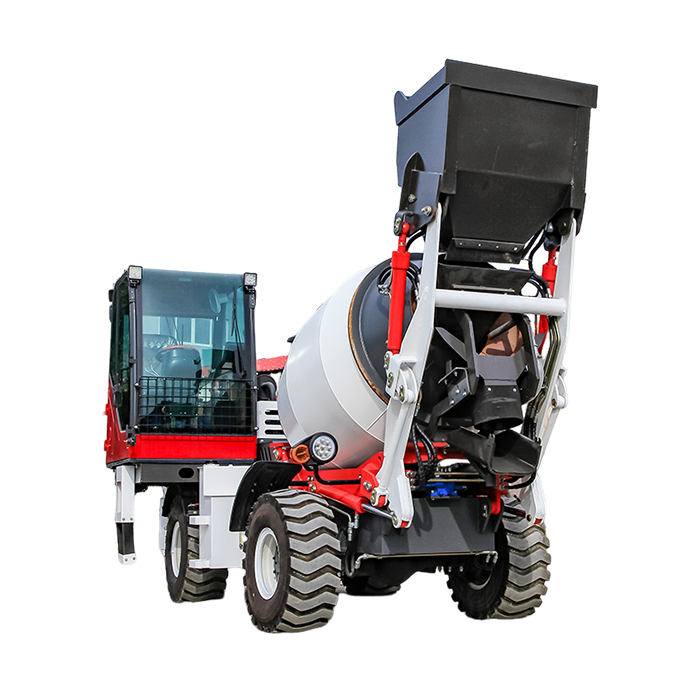

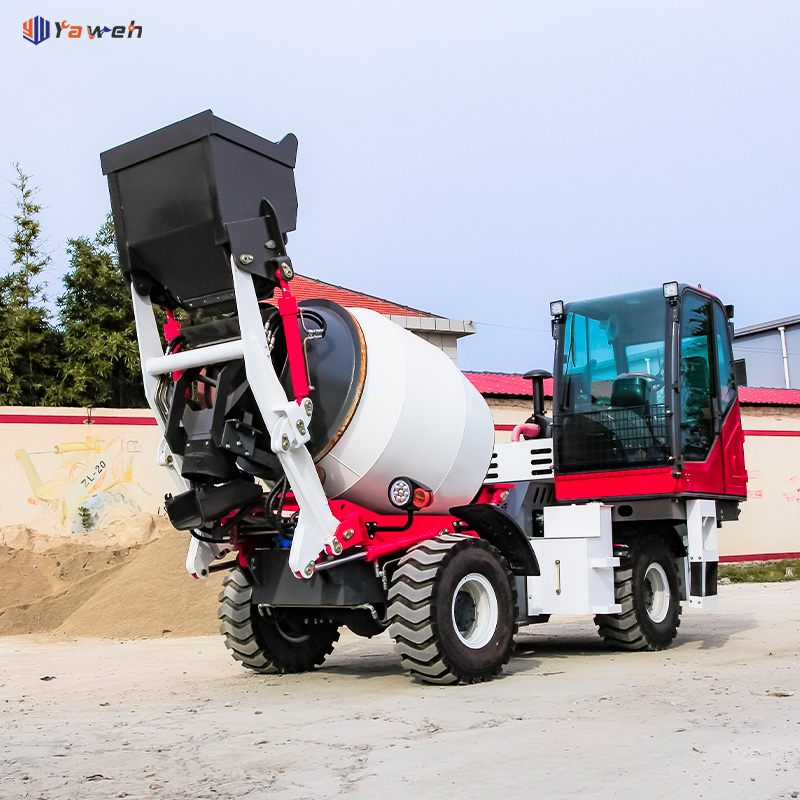

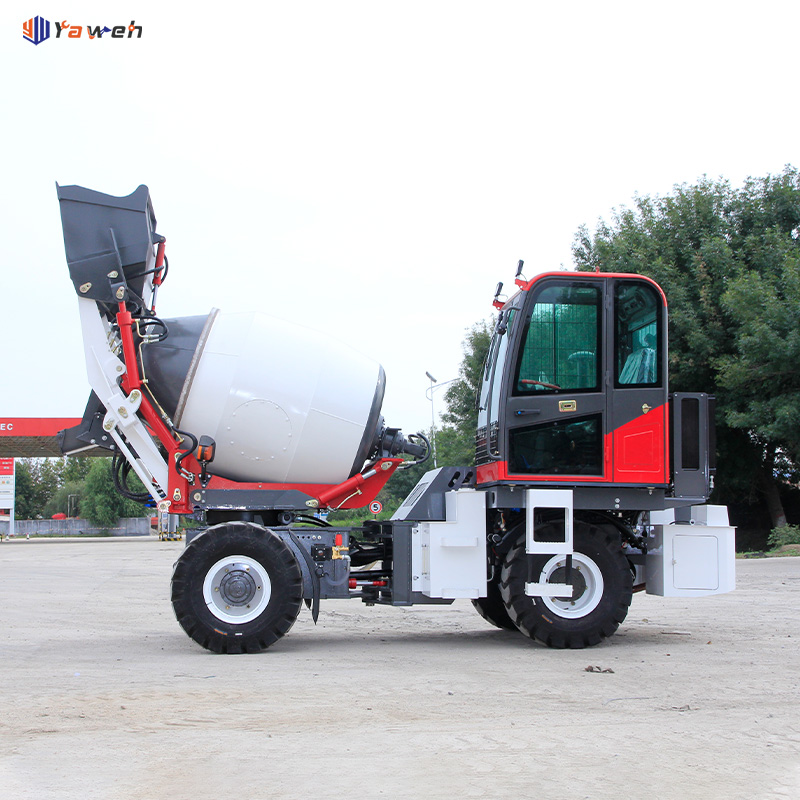

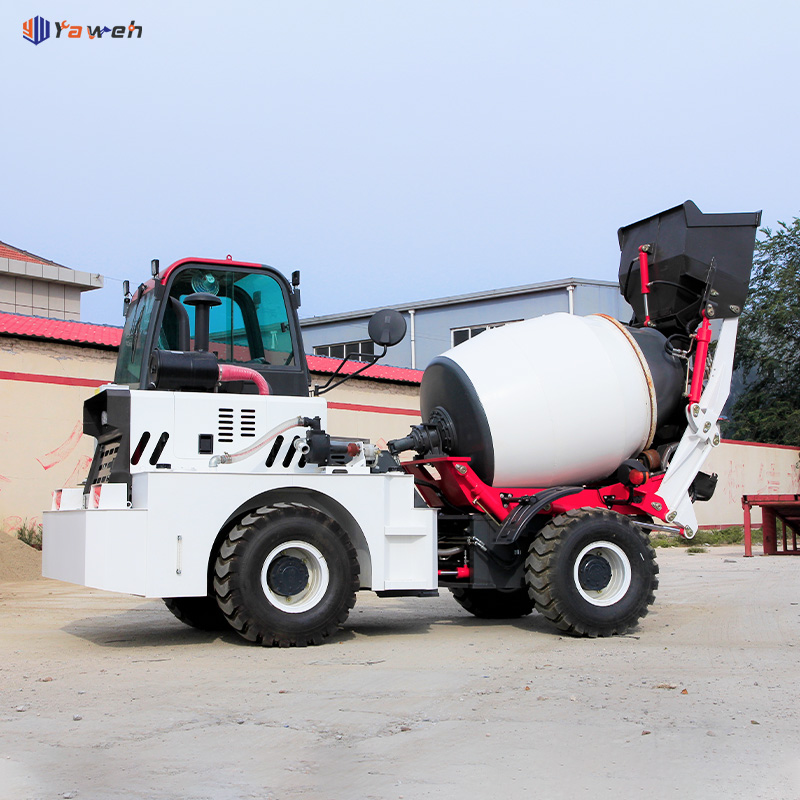

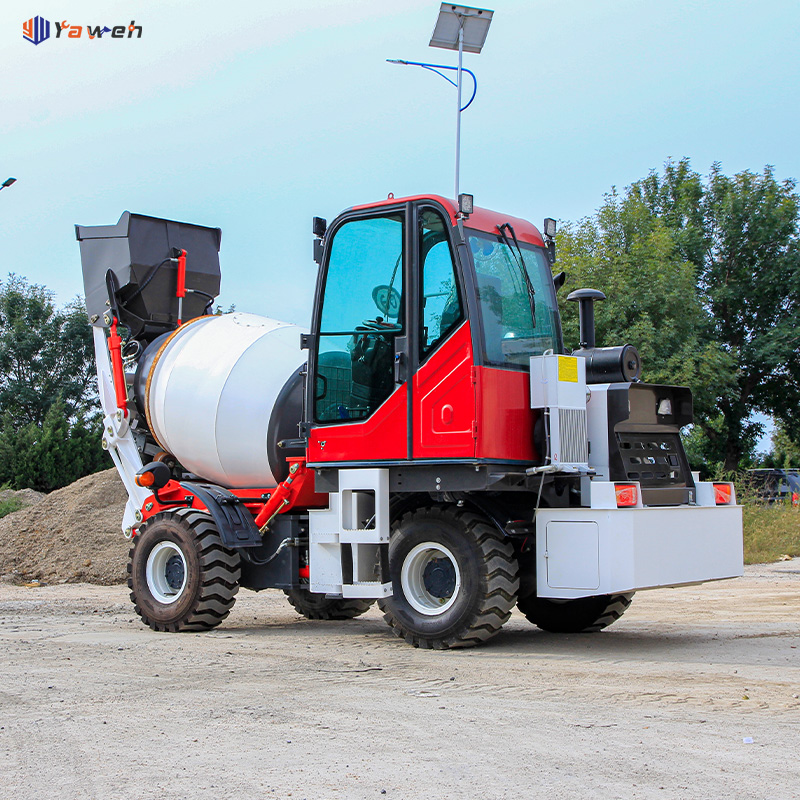

The YAWEH 1.5m³ self-loading concrete mixer integrates automatic feeding, mixing, transportation and discharging in one unit. It features self-loading system, stable mixing performance and flexible operation, ideal for small construction, road repair, rural building, house foundations and narrow job sites. Compact structure, high efficiency and easy operation greatly reduce labor and equipment costs.
| Quantity: | |
|---|---|
The Yaweh self-loading mixer truck can be divided into two types: front-mounted cab and rear-mounted cab.The front cab rotates left and right simultaneously with the boom and the mixing drum. For the rear-mounted cab model, the boom and the mixing drum rotate left and right simultaneously, and it also has a bidirectional driving function. Single-rod control for the lifting and lowering of the large arm and the retraction and flipping of the bucket, with simple operation and faster feeding speed.
Adopting international standards of 15-16 degrees and adding built-in blades for semi mandatory mix- ing,Concrete mixing is more uniform, the mixing tank can be tilted forward, and the unloading speed is faster;
Equipped with precise electronic scale and automaticwater adding function, The data display is accurate, and the proportion can be adjusted by sitting in the driver's cab.
Vacuum steel wire tire, anti puncturing, explosion-proof, Stronger bearing capacity, National standard axle, dual brake calipers, Parking with air brake, excellent braking performance;
Equipped with hydraulic external suction pump,It can achieve auto matic and remote water addi- tion,The water tank of the mixing truck is convenient and fast to add water;
The entire vehicle is equipped with dual fuel tanks and dual heat dissipation,Continuous operation without high temperature,Cus tomized variable displacement pump, controllable rotation speed of the tank body,Better concrete quality;
Most accessories such as oil cylinders, tanks, frames, integral structural components, and frames, All are produced by our company, with solid materials, welded by Robotic arm, professional manufacturing and guaranteed quality;
Self-loading: Hydraulic shovel scoops aggregates, sand and cement directly from stockpiles.
Precise weighing: Onboard electronic weighing system ensures accurate mix ratio.
Mixing: Rotating drum mixes materials with measured water into uniform concrete.
Transport & discharge: Moves to pouring spot while agitating; discharges flexibly via chute.
Ideal Applications
Small-to-medium construction: Rural buildings, house renovation, factory foundations
Road & infrastructure: Road repair, sidewalks, culverts, narrow rural roads
Tight/remote sites: Mountain, countryside, mining, tunnel and indoor projects
Shortage of labor/equipment: Replaces loader, mixer, transport truck; 1 operator runs full cycle
Key Advantages
Compact body, small turning radius, works in narrow spaces
6–8m³/h output; 1.5m³ per batch
All-in-one design cuts labor, equipment and logistics costs
Stable mixing quality, easy operation, strong off-road mobility
| Model | 1.5m³ Self Loading Concrete Mixer Truck |
|---|---|
| Overall Dimension (L×W×H) | 5050×2350×3500 mm (Lifting arm) / 6400×2350×2730 mm (Drop arm) |
| Width | 2150 mm |
| Wheelbase | 2180 mm |
| Track Width | 1490 mm |
| Overall Weight | 5500 kg |
| Engine Model | YN26GBZ |
| Engine Power | 55 kW |
| Drive Type | 4×4 (Four-wheel drive) |
| Gearbox | 265 integrated |
| Drive Axle | 1.8T wheel side reduction axle |
| Tyre | 20.5/70-16 (Vacuum steel wire tire, anti-puncturing, explosion-proof) |
| Capacity of Bucket | 0.35 m³ |
| Stirring Capacity | 1 m³ (Output: 1.5m³ per batch, 6-8m³/h) |
| Reduction Ratio | 1:24 |
| Rotate Speed | ≥15 laps/minute |
| Running Speed | 35 km/h |
| Water Tank Capacity | 300 L |
| Diesel Tank Capacity | 90 L |
| Hydraulic Tank Capacity | 120+18 L |
| Discharge Angle | 270° multi-directional discharge |
| Braking System | Dual brake calipers, Air brake parking |
| Water Supply System | Hydraulic external suction pump, automatic/remote water addition |
Small and medium-sized rural construction projects: It is perfectly suitable for rural housing construction, villa construction, and house foundation pouring. Its compact body and small turning radius can easily pass through narrow rural roads and limited construction spaces, eliminating the trouble of difficult transportation of traditional mixing equipment in rural areas.
Road and small-scale infrastructure maintenance: Widely used in road pothole repair, sidewalk paving, rural road hardening, and culvert construction. The all-in-one self-loading design allows it to complete material loading, mixing and discharging independently, greatly improving the efficiency of emergency maintenance and small-scale infrastructure construction.
Remote and harsh environment projects: Applicable to mountainous areas, mining areas, and remote construction sites with inconvenient transportation. It has strong off-road performance and can adapt to uneven road conditions. The integrated design avoids the need for multiple equipment coordination, saving transportation and labor costs in remote areas.
Small industrial and civil engineering: Suitable for factory floor hardening, workshop renovation, warehouse foundation construction, and landscaping projects. Its 1.5m³ per batch capacity meets the demand for small and medium-sized concrete usage, and the precise mixing system ensures the quality of concrete, which is suitable for projects with high requirements for construction quality.
Indoor and limited-space construction: Ideal for indoor renovation, basement pouring, and tunnel construction. The compact structure and flexible 270° discharge function allow it to work in narrow indoor spaces or closed tunnel environments, solving the problem that large mixing equipment cannot enter narrow construction areas.
The 270-degree multi-directional discharge allows the mixing drum to rotate and pour concrete at almost any angle relative to the chassis. This means the truck can drive alongside a trench or foundation and pour directly into it without needing to constantly reposition or turn the entire vehicle around, which is especially critical in narrow rural roads or tight tunnels.
Absolutely. The 1500 Self Loading Mixer is engineered with a dual heat dissipation system and dual fluid tanks. This advanced thermal management effectively cools the hydraulic systems and the 55kW engine, preventing overheating and ensuring the machine can run continuous cycles even during peak summer temperatures or in demanding climates.
The learning curve is remarkably short. The cabin is designed with an intuitive, centralized control panel. The complex movements of the loading boom and bucket are consolidated into a single-rod joystick. With clearly labeled functions and a straightforward operational logic, a novice can safely and efficiently operate the full loading-to-pouring cycle after just a brief training session.
The vehicle is equipped with a robust hydraulic external suction pump connected to a 300L water tank. Using the onboard electronic weighing system, the operator can set the exact amount of water required for the specific concrete grade. The system will then automatically draw and inject the precise volume of water into the drum via remote control from the cabin, ensuring a perfect water-cement ratio every time.
Maintenance is straightforward and designed to minimize downtime. Daily routines involve thoroughly washing the interior of the mixing drum to prevent concrete buildup. Periodic maintenance includes greasing the hydraulic pivot points, inspecting the wear on the internal mixing blades, and checking the vacuum tires and brake calipers. Following the simple schedule outlined in the user manual will ensure years of reliable service.
