The four-wheel drive off-road forklift is a master at muddy roads! The all-wheel drive system, coupled with semi-solid steel wire tires, provides exceptional grip, anti-slip, and puncture resistance, making it fearless in harsh environments. With an integrated frame, it offers flexible steering and a small turning radius, allowing for easy operation even in narrow spaces. Equipped with a high-power engine, it delivers strong power and stable performance, handling both heavy loads and high-speed operations with ease. The cab is dust and soil-proof, with a wide field of vision and comfortable seats, ensuring that operators can maintain good condition even during prolonged work.
| Quantity: | |
|---|---|

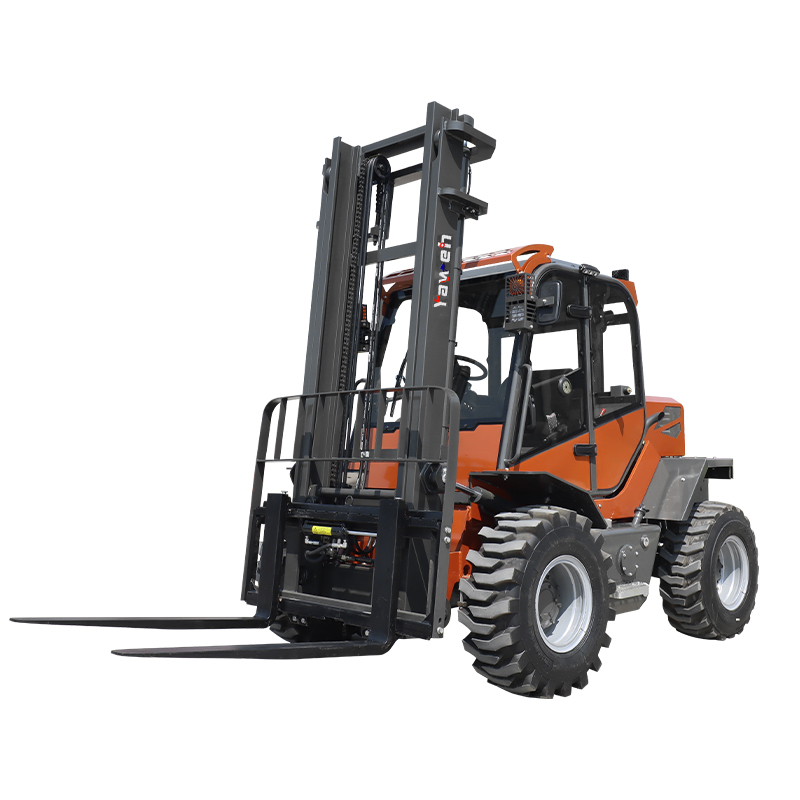

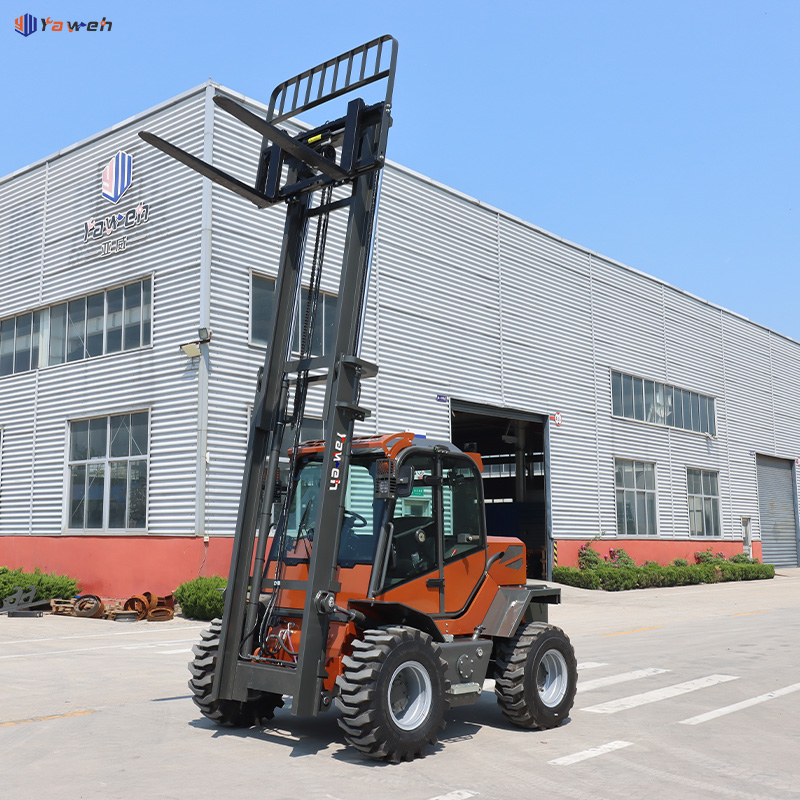

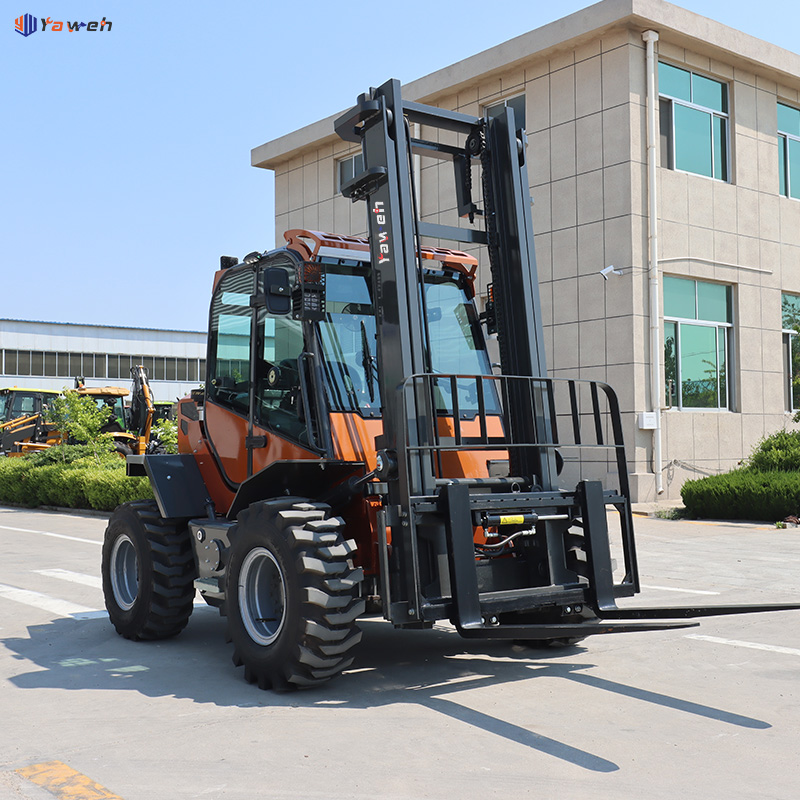

As a premier manufacturer and supplier of heavy-duty material handling equipment, we present the 35T Off Road Forklift. Engineered for uncompromising performance in the most demanding outdoor environments, this robust machine ensures seamless operations across unpaved terrains.
Exceptional 3500 kg lifting capacity for heavy-duty industrial applications.
Advanced 4x4 all-wheel drive delivering superior traction on mud, sand, and gravel.
Compact integrated frame offering a remarkably tight turning radius for confined spaces.
Ergonomic, sealed cabin designed for prolonged operational comfort and safety.
Step into the future of rugged material handling with the 35T Off Road Forklift, a machine meticulously crafted to conquer the unforgiving landscapes of construction sites, agricultural fields, and mining quarries. When your operations move beyond the smooth concrete of a traditional warehouse, this formidable piece of machinery becomes the backbone of your logistical success. The moment you engage the ignition, the deep, steady hum of the naturally aspirated engine signals a readiness to tackle heavy payloads with unwavering stability. Its imposing stance, characterized by thick, industrial-grade steel and aggressive semi-solid tires, visually communicates raw strength and durability. Operating this forklift feels remarkably fluid; the advanced mechanical pilot controls translate your slightest hand movements into precise, powerful lifting actions, eliminating the jerky motions often associated with heavy lifting. Inside the sealed, dust-proof cabin, operators are shielded from the harsh exterior elements, experiencing a quiet, climate-controlled environment that smells of premium industrial materials rather than exhaust and dirt. This seamless blend of brute force and refined control ensures that your daily material transport is not just completed, but executed with maximum efficiency and minimal operator fatigue, ultimately safeguarding your operational timelines and protecting your bottom line.
1. Adjustable steering wheel allows flexible adaptation to drivers of different sizes, with easy height adjustment for optimal posture. Paired with a high-quality Toyota-style seat, it delivers exceptional comfort for safer and more relaxed operation.
2. More secure NFC keys help prevent false starts that can lead to injury. The system can automatically adjust to the optimal performance state for different load conditions, ensuring stability and efficiency. Its intelligent design simplifies the operation process, significantly improving equipment reliability and extending service life.
3. The advanced hydraulic pilot control lever combines electronically controlled shifting, integrating forward/reverse motion, fork lifting, and side shifting into one integral joystick. Its ergonomic layout ensures precise handling for demanding tasks.
4. Adopting thicker and wider forks and selected high-quality steel can enhance the load capacity and prolong the service life of the machine.
5. Front 20.5 semi-solid tyres and rear 12-16.5 vacuum wire tyres, combined with rear-wheel steering, provide greater load-carrying and extrication capacity.

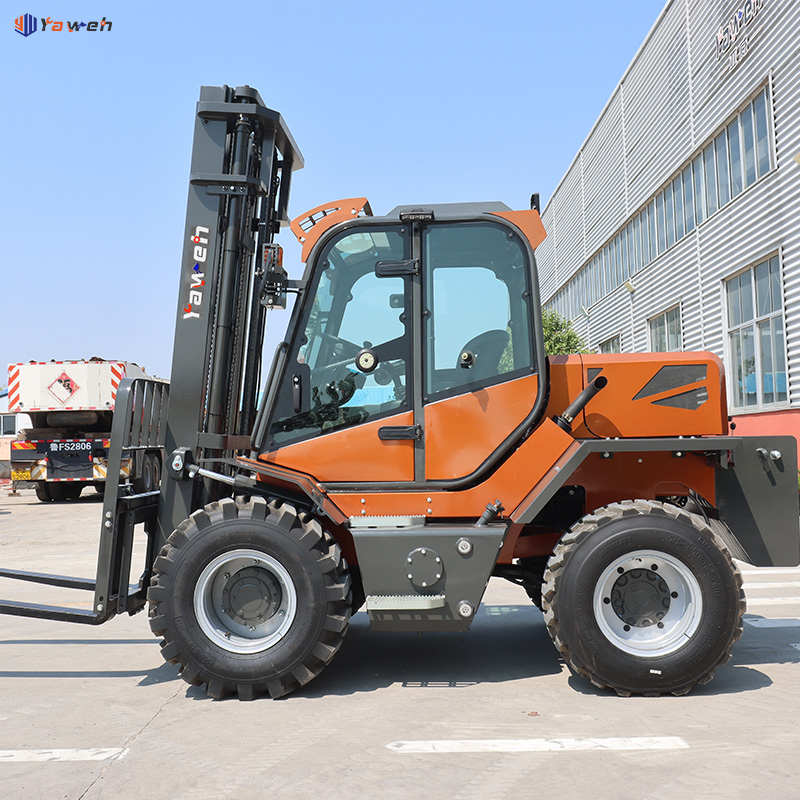

6. A short wheelbase and rugged one-piece frame design, with no articulation, provide a tighter turning radius and greater steering angle, enabling effortless maneuverability in tight spaces.
7. Installation of a safety light helps ensure a safe distance at night.

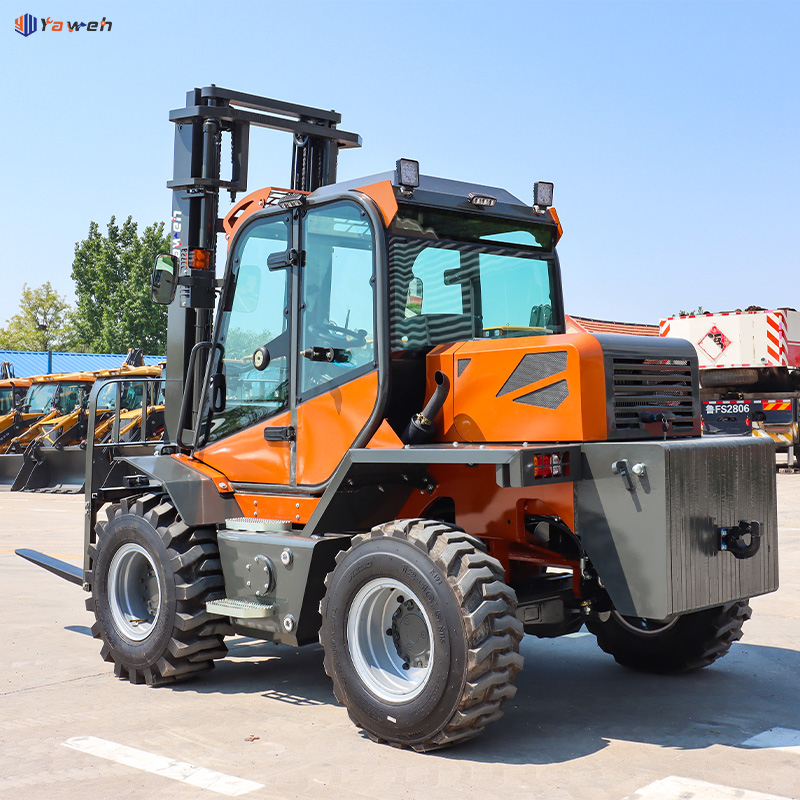

8. The rear engine cover opens upwards for easier filter replacement, and the rear wings are load-bearing enough for maintenance personnel to stand on.
Outlines | |
Outline dimension (mm) | 4560*1900*2750 |
Wheel base (mm) | 1700 |
Traud (mm) | 1630 |
Min ground clearance (mm) | 250 |
Min turning radius (mm) | 2800 |
Performance | |
Lifting height (mm) | 4100 |
Machine weight (kg) | 4650 |
Rated load capacity (kg) | 3500 |
Max speed (Km/h) | 20-28 |
Max climbing capacity (°) | 35 |
Mast width (mm) | 1400 |
Tilt angle of the mast (forward and backward) | 12° |
Engine | |
Model | YN27PAF4 |
Rated power (kw) | 36.8 |
Rated speed (r/min) | 2400 |
Intake method | Natural aspiration |
Tyre | |
Front wheel specification | 20.5/70-16 |
Rear wheel specification | 12-16.5 |
Service brake | Gas cap oil clamp disc brake |
Parking brake | Hand brake |
Other | |
Driving type | 4x4 |
Frame | Integrated heavy-duty frame |
Operation mode | Mechanical pilot operation |
Brake | Air brake |
Conquering unpredictable ground conditions is where this machine truly excels. It is purpose-built to navigate environments that would instantly immobilize standard warehouse equipment.
Unstoppable Traction: The robust 4WD system delivers continuous power to all wheels, preventing slippage in deep mud, loose gravel, or slippery clay.
High Clearance: A generous 250 mm minimum ground clearance allows the chassis to glide over rocky outcrops and deep ruts without bottoming out and causing undercarriage damage.
Steep Grade Mastery: Engineered to ascend gradients up to 35°, making it perfectly suited for terraced agricultural lands, sloped mining quarries, and uneven construction zones.
Puncture-Resistant Tires: The combination of front 20.5 semi-solid tires and rear 12-16.5 vacuum wire tires ensures maximum grip while virtually eliminating the costly downtime associated with flats.
At the heart of this heavy-duty lifter is a powertrain designed for relentless endurance and intelligent power distribution, ensuring your material transport never misses a beat.
High-Output Engine: The YN27PAF4 engine generates a solid 36.8 kw of power, maintaining stable torque even under maximum load conditions.
Adaptive Performance: The system automatically calibrates power output based on real-time load demands, optimizing fuel consumption and reducing long-term engine wear.
Seamless Shifting: Electronically controlled shifting provides smooth transitions between speeds up to 28 Km/h, preventing load jarring and material spillage during rapid transport.
Despite its rugged build, this forklift possesses the agility of a much smaller machine, solving the logistical nightmare of navigating confined outdoor and semi-indoor spaces.
Ultra-Tight Turning: A short 1700 mm wheelbase combined with a specialized steering geometry achieves a remarkably small 2800 mm turning radius.
Rigid Frame Stability: Unlike articulated loaders that can feel unstable during sharp turns, the integrated heavy-duty frame provides a solid, predictable steering response at all times.
Confined Space Operation: Perfectly proportioned to weave through narrow lumber yard aisles, tightly packed construction sites, or even maneuver inside large shipping containers.
Equipment longevity directly impacts your return on investment. This forklift is over-engineered to withstand the daily abuses of harsh industrial environments.
Monolithic Frame: The one-piece heavy-duty chassis eliminates the weak points found in bolted or articulated frames, absorbing extreme shock loads without structural fatigue.
Reinforced Lifting Mechanism: The widened 1400 mm mast and thickened forks prevent deformation when handling dense, unyielding materials like concrete blocks or steel pipes.
Corrosion Resistance: Industrial-grade coatings protect the exterior from rust and degradation caused by exposure to rain, mud, and corrosive agricultural chemicals.
A comfortable operator is a productive and safe operator. The cabin is designed as a secure, fatigue-reducing command center for long operational shifts.
Customizable Ergonomics: The fully adjustable steering wheel and premium Toyota-style suspension seat accommodate operators of all sizes, smoothing out the severe jolts of rough terrain.
Environmental Isolation: The sealed cabin keeps out choking dust, flying debris, and harsh weather, allowing operators to maintain sharp focus.
Fail-Safe Braking: The gas cap oil clamp disc service brake paired with a reliable hand parking brake ensures immediate, positive stopping power even on steep inclines carrying a full load.
Minimizing maintenance time means maximizing operational hours. The physical layout of this forklift is designed specifically with the fleet mechanic in mind.
Instant Engine Access: The rear engine hood opens fully upwards, completely exposing the engine bay for rapid daily fluid checks and filter replacements.
Load-Bearing Fenders: The rear wings are structurally reinforced to support the weight of maintenance personnel, providing a safe and stable platform for servicing top-mounted components.
Simplified Architecture: The mechanical pilot operation and straightforward layout reduce the reliance on complex diagnostic tools, allowing for quick, effective on-site repairs.
Versatility is key to maximizing equipment utilization. This machine easily transforms to meet the specific, evolving demands of diverse industries.
Construction & Infrastructure: Effortlessly transports palletized bricks, scaffolding, and heavy pipes across rutted, unpaved building sites.

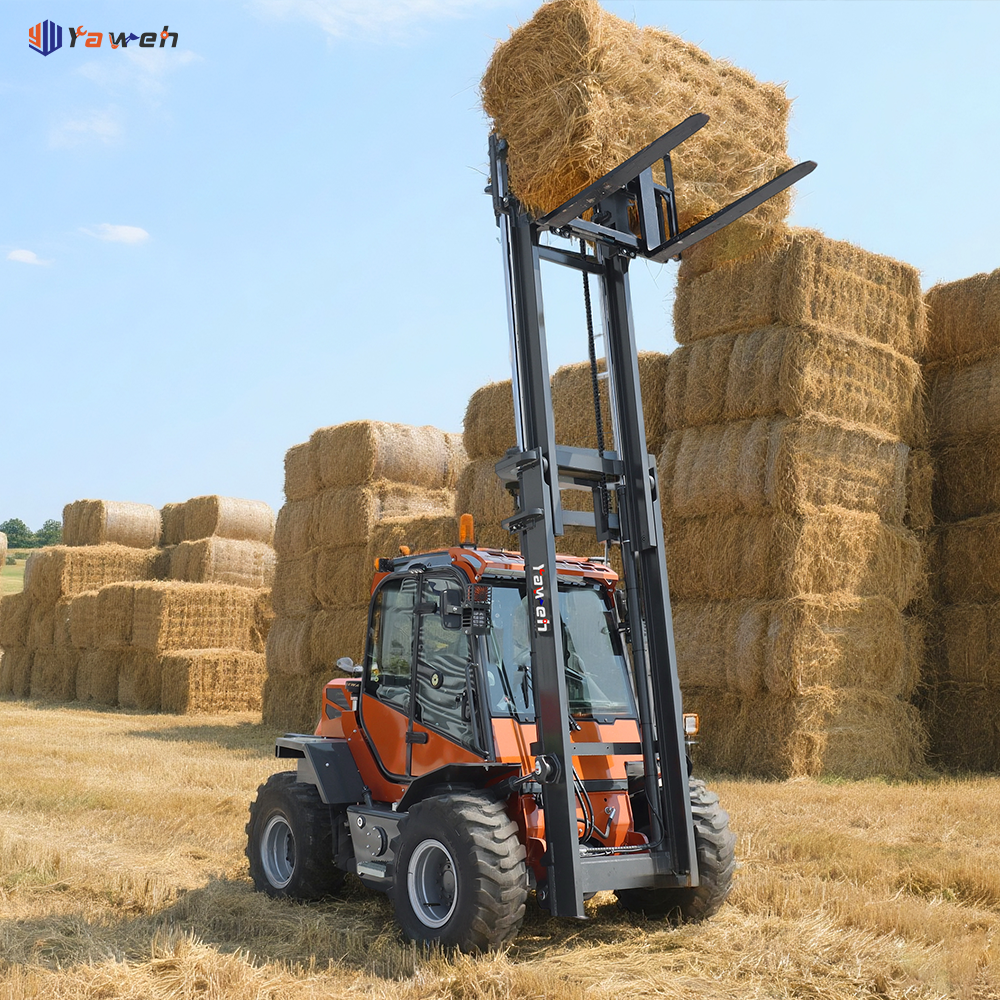

Agriculture & Forestry: Can be fitted with specialized attachments to handle timber, loose feed, or fertilizer in muddy fields and dense woodlands.
Extreme Environments: Optional enclosed cabins or protective canopies adapt the machine for use in freezing tundras, scorching foundries, or highly abrasive cement plants.
1. Outdoor muddy and soft terrain
Construction site: uneven muddy ground and soil slopes.
Agriculture, forestry, animal husbandry, and fishery: muddy farmland, soft grassland, fish pond, orchard, sugarcane field, pasture.
Water conservancy projects: riverbeds, dams, and marsh edges.
2. Rugged and narrow mountainous terrain

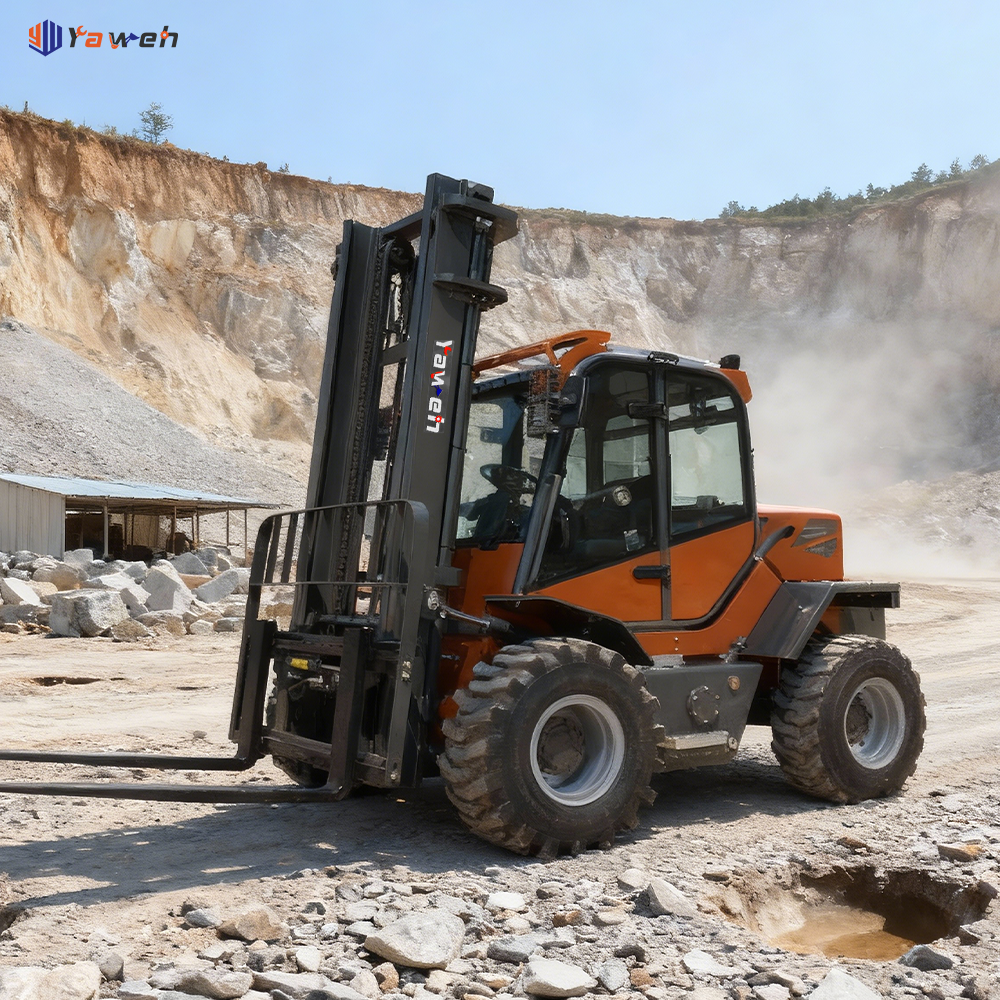

Mine quarry: gravel roads, steep slopes, and even stairs to climb (some with ladder access).
Mountainous photovoltaic/wind power: steep slopes, undeveloped mountain roads.
Woodland: An area with rugged mountain paths, filled with tree roots and rocks.
3. Special climate and harsh environment
Severe cold/extremely cold regions: Northeast snow fields, tundra zones.
High temperature and high dust: cement plants, foundries, open-pit mines.
Narrow space: Some compact off-road forklifts can adapt to operations in narrow alleys or inside containers.
Procuring heavy machinery is a significant investment that requires a highly reliable manufacturing partner. We are dedicated to delivering not just equipment, but comprehensive material handling solutions that drive your operational success and growth.
Direct Manufacturer Advantage: By sourcing directly from our advanced manufacturing facility, you bypass intermediaries, ensuring highly competitive pricing without compromising on industrial-grade quality.
Stringent Quality Assurance: Every forklift undergoes rigorous stress testing and terrain simulation before leaving our plant, guaranteeing that it performs flawlessly upon arrival at your site.
Consistent Supply Chain: We maintain robust production capabilities and a deep inventory of spare parts, ensuring rapid fulfillment of bulk orders and immediate support for your ongoing maintenance needs.
Expert Technical Support: Our team of seasoned engineers provides comprehensive guidance, from selecting the right attachment configurations to offering long-term troubleshooting and maintenance advice.
Q1: How does the 35T off-road model differ from a standard industrial warehouse forklift?
A: The fundamental distinction lies in its all-terrain architecture. While standard forklifts require smooth, hardened concrete floors to operate safely, this off-road model features a high-clearance chassis (250 mm), an integrated heavy-duty frame, and a robust 4x4 drive system. Coupled with specialized semi-solid and vacuum wire tires, it is engineered to maintain stability and traction on mud, gravel, and steep inclines.
Q2: Can the lifting mechanism handle asymmetrical or extremely dense loads?
A: Yes. The mast and forks are constructed from thickened, premium-grade steel designed to resist torsional twisting. With a rated load capacity of 3500 kg and an integrated hydraulic pilot control for precise side-shifting, operators can safely manage and perfectly position dense materials like concrete blocks or asymmetrical timber bundles without destabilizing the machine.
Q3: What specific maintenance advantages does the rear chassis design offer?
A: The rear section of the forklift is specifically designed to minimize fleet downtime. The engine cover opens entirely upwards, providing unobstructed access to vital components like air and oil filters. Furthermore, the rear fenders are heavily reinforced, allowing technicians to stand directly on them safely while performing routine inspections or servicing top-tier engine parts.
Q4: Is this equipment suitable for operations in extreme weather or high-dust environments?
A: Absolutely. The forklift can be equipped with a fully sealed, dust-proof cabin that isolates the operator from harsh external conditions. This makes it highly effective in high-dust areas like cement plants and open-pit mines, as well as in extreme cold or heat, ensuring both the longevity of the internal cabin electronics and the comfort of the operator.
Q5: What types of attachments are compatible with this forklift to expand its utility?
A: Beyond the standard heavy-duty forks, the machine's hydraulic system is designed to accommodate a wide array of specialized attachments. Depending on your sector's specific requirements, the forklift can integrate side shift forks, crane jibs for suspended loads, buckets for loose aggregate, and specialized log grabs for forestry applications, making it a highly versatile asset for any operation.
Q6: What is the fundamental difference between it and an ordinary warehouse forklift?
A: The core difference lies in the all-terrain capability. Off-road forklifts, equipped with large off-road tires, stronger chassis, and four-wheel drive systems, are capable of stable driving and operation on non-hardened rugged surfaces such as mud, sand, and slopes, while ordinary forklifts are only suitable for flat, solid, and hardened ground.
